This documentation is for the latest snapshot of GATE Developer/Embedded.
If you are using a release version you should refer to the documentation for that release instead, which is accessible via the Help menu in GATE Developer.
The latest release is version 8.5.1

Developing Language Processing
Components with GATE
Version 8 (a User Guide)
  For GATE version 8.6-SNAPSHOT (development builds)
  (built June 19, 2018)

  Hamish Cunningham, Diana Maynard, Kalina Bontcheva, Valentin Tablan, Niraj Aswani, Ian Roberts, Genevieve Gorrell, Adam Funk, Angus Roberts, Danica Damljanovic, Thomas Heitz, Mark A. Greenwood, Horacio Saggion, Johann Petrak, Yaoyong Li, Wim Peters, Leon Derczynski, et al
  The University of Sheffield, Department of Computer Science 2001-2017


How to cite this guide

PDF version

Single HTML page

Multiple HTML pages

Work on GATE has been partly supported by EPSRC grants GR/K25267 (Large-Scale Information Extraction), GR/M31699 (GATE 2), RA007940 (EMILLE), GR/N15764/01 (AKT) and GR/R85150/01 (MIAKT), AHRB grant APN16396 (ETCSL/GATE), Ontotext Matrixware, the Information Retrieval Facility and several EU-funded projects: (TrendMiner, uComp, Arcomem, SEKT, TAO, NeOn, MediaCampaign, Musing, KnowledgeWeb, PrestoSpace, h-TechSight, and enIRaF).


I  GATE Basics
1 Introduction
 1.1 How to Use this Text
 1.2 Context
 1.3 Overview
  1.3.1 Developing and Deploying Language Processing Facilities
  1.3.2 Built-In Components
  1.3.3 Additional Facilities in GATE Developer/Embedded
  1.3.4 An Example
 1.4 Some Evaluations
 1.5 Recent Changes
  1.5.1 Version 8.5.1 (June 2018)
  1.5.2 Version 8.5 (May 2018)
 1.6 Further Reading
2 Installing and Running GATE
 2.1 Downloading GATE
 2.2 Installing and Running GATE
  2.2.1 The Easy Way
  2.2.2 The Hard Way (1)
  2.2.3 The Hard Way (2): Git
  2.2.4 Running GATE Developer on Unix/Linux
 2.3 Using System Properties with GATE
 2.4 Changing GATE’s launch configuration
 2.5 Configuring GATE
 2.6 Building GATE
  2.6.1 Using GATE with Maven/Ivy
 2.7 Uninstalling GATE
 2.8 Troubleshooting
3 Using GATE Developer

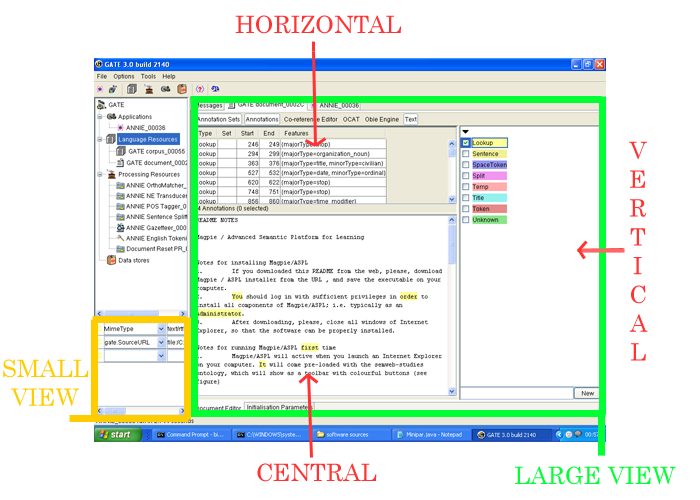

 3.1 The GATE Developer Main Window

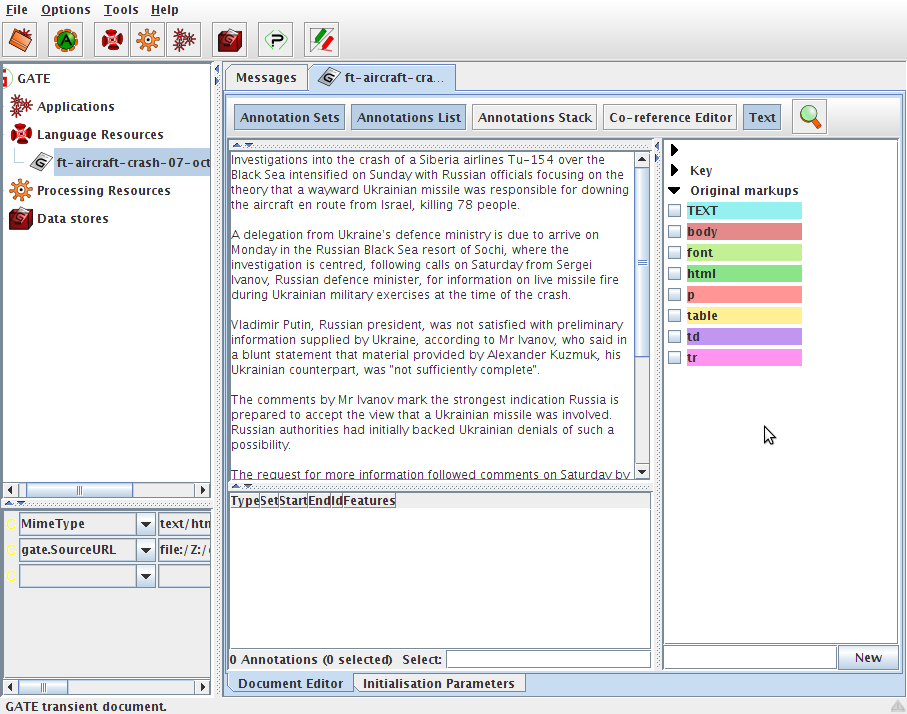

 3.2 Loading and Viewing Documents

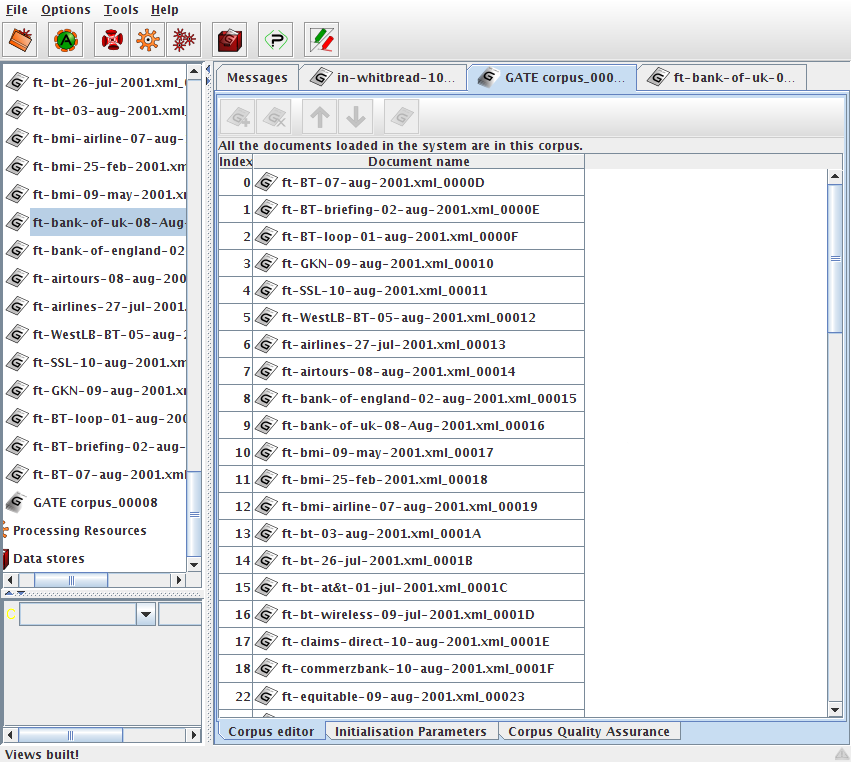

 3.3 Creating and Viewing Corpora
 3.4 Working with Annotations
  3.4.1 The Annotation Sets View
  3.4.2 The Annotations List View

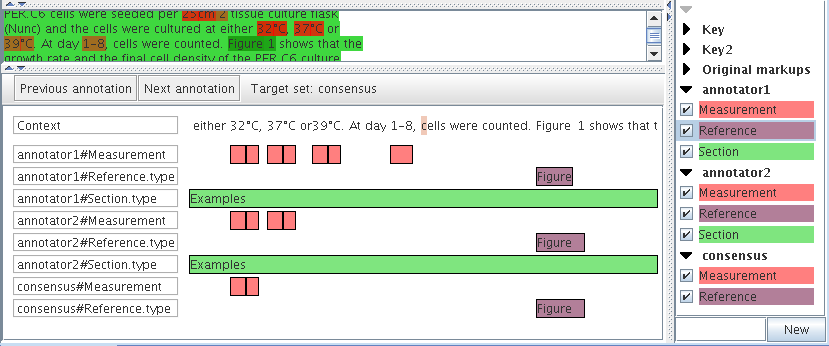

  3.4.3 The Annotations Stack View

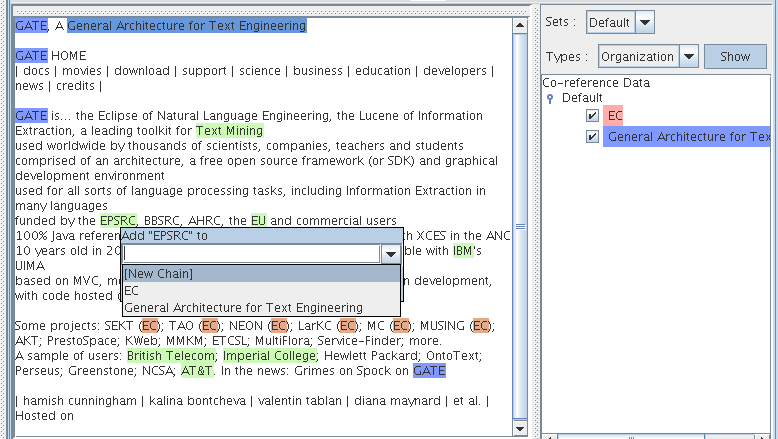

  3.4.4 The Co-reference Editor
  3.4.5 Creating and Editing Annotations
  3.4.6 Schema-Driven Editing
  3.4.7 Printing Text with Annotations
 3.5 Using CREOLE Plugins

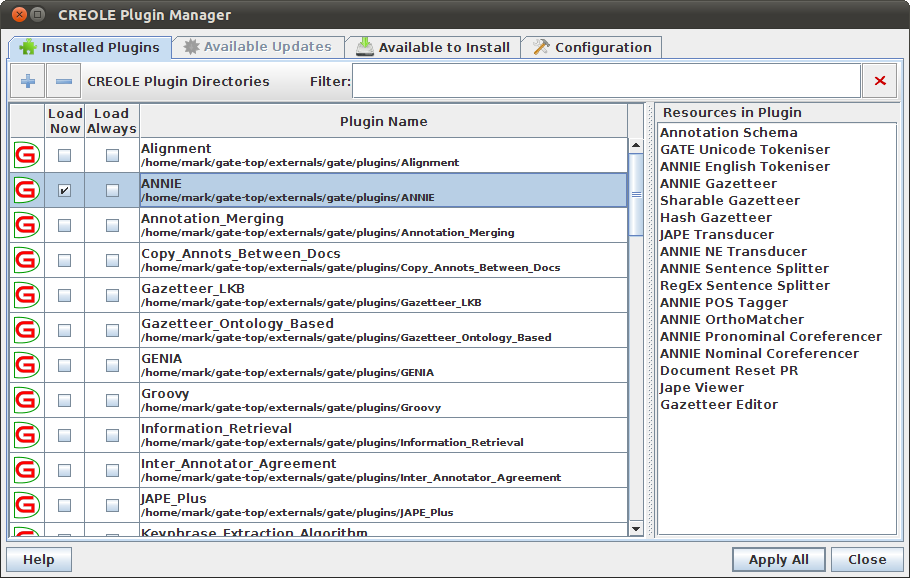

 3.6 Installing and updating CREOLE Plugins
 3.7 Loading and Using Processing Resources
 3.8 Creating and Running an Application
  3.8.1 Running an Application on a Datastore
  3.8.2 Running PRs Conditionally on Document Features
  3.8.3 Doing Information Extraction with ANNIE
  3.8.4 Modifying ANNIE
 3.9 Saving Applications and Language Resources
  3.9.1 Saving Documents to File
  3.9.2 Saving and Restoring LRs in Datastores
  3.9.3 Saving Application States to a File
  3.9.4 Saving an Application with its Resources (e.g. GATE Cloud)
  3.9.5 Upgrade An Application to use Newer Versions of Plugins
 3.10 Keyboard Shortcuts
 3.11 Miscellaneous
  3.11.1 Stopping GATE from Restoring Developer Sessions/Options
  3.11.2 Working with Unicode
4 CREOLE: the GATE Component Model
 4.1 The Web and CREOLE
 4.2 The GATE Framework
 4.3 The Lifecycle of a CREOLE Resource
 4.4 Processing Resources and Applications
 4.5 Language Resources and Datastores
 4.6 Built-in CREOLE Resources
 4.7 CREOLE Resource Configuration
  4.7.1 Configuring Resources using Annotations
  4.7.2 Loading Third-Party Libraries in a Maven plugin
 4.8 Tools: How to Add Utilities to GATE Developer
  4.8.1 Putting Your Tools in a Sub-Menu
  4.8.2 Adding Tools To Existing Resource Types
5 Language Resources: Corpora, Documents and Annotations
 5.1 Features: Simple Attribute/Value Data
 5.2 Corpora: Sets of Documents plus Features
 5.3 Documents: Content plus Annotations plus Features
 5.4 Annotations: Directed Acyclic Graphs
  5.4.1 Annotation Schemas
  5.4.2 Examples of Annotated Documents
  5.4.3 Creating, Viewing and Editing Diverse Annotation Types
 5.5 Document Formats
  5.5.1 Detecting the Right Reader
  5.5.2 XML
  5.5.3 HTML
  5.5.4 SGML
  5.5.5 Plain text
  5.5.6 RTF
  5.5.7 Email
  5.5.8 PDF Files and Office Documents
  5.5.9 UIMA CAS Documents
  5.5.10 CoNLL/IOB Documents
 5.6 XML Input/Output
6 ANNIE: a Nearly-New Information Extraction System
 6.1 Document Reset
 6.2 Tokeniser
  6.2.1 Tokeniser Rules
  6.2.2 Token Types
  6.2.3 English Tokeniser
 6.3 Gazetteer
 6.4 Sentence Splitter
 6.5 RegEx Sentence Splitter
 6.6 Part of Speech Tagger
 6.7 Semantic Tagger
 6.8 Orthographic Coreference (OrthoMatcher)
  6.8.1 GATE Interface
  6.8.2 Resources
  6.8.3 Processing
 6.9 Pronominal Coreference
  6.9.1 Quoted Speech Submodule
  6.9.2 Pleonastic It Submodule
  6.9.3 Pronominal Resolution Submodule
  6.9.4 Detailed Description of the Algorithm
 6.10 A Walk-Through Example
  6.10.1 Step 1 - Tokenisation
  6.10.2 Step 2 - List Lookup
  6.10.3 Step 3 - Grammar Rules
II  GATE for Advanced Users
7 GATE Embedded
 7.1 Quick Start with GATE Embedded
 7.2 Resource Management in GATE Embedded
 7.3 Using CREOLE Plugins
 7.4 Language Resources
  7.4.1 GATE Documents
  7.4.2 Feature Maps
  7.4.3 Annotation Sets
  7.4.4 Annotations
  7.4.5 GATE Corpora
 7.5 Processing Resources
 7.6 Controllers
 7.7 Modelling Relations between Annotations
 7.8 Duplicating a Resource
  7.8.1 Sharable properties
 7.9 Persistent Applications
 7.10 Ontologies
 7.11 Loading Annotation Schemas
 7.12 Creating a New CREOLE Resource
 7.13 Adding Support for a New Document Format
 7.14 Using GATE Embedded in a Multithreaded Environment
 7.15 Using GATE Embedded within a Spring Application
  7.15.1 Duplication in Spring
  7.15.2 Spring pooling
  7.15.3 Further reading
 7.16 Groovy for GATE
  7.16.1 Groovy Scripting Console for GATE
  7.16.2 Groovy scripting PR
  7.16.3 The Scriptable Controller
  7.16.4 Utility methods
 7.17 Saving Config Data to gate.xml
 7.18 Annotation merging through the API
 7.19 Using Resource Helpers to Extend the API
 7.20 Converting a Directory Plugin to a Maven Plugin
8 JAPE: Regular Expressions over Annotations
 8.1 The Left-Hand Side
  8.1.1 Matching Entire Annotation Types
  8.1.2 Using Features and Values
  8.1.3 Using Meta-Properties
  8.1.4 Building complex patterns from simple patterns
  8.1.5 Matching a Simple Text String
  8.1.6 Using Templates
  8.1.7 Multiple Pattern/Action Pairs
  8.1.8 LHS Macros
  8.1.9 Multi-Constraint Statements
  8.1.10 Using Context
  8.1.11 Negation
  8.1.12 Escaping Special Characters
 8.2 LHS Operators in Detail
  8.2.1 Equality Operators
  8.2.2 Comparison Operators
  8.2.3 Regular Expression Operators
  8.2.4 Contextual Operators
  8.2.5 Custom Operators
 8.3 The Right-Hand Side
  8.3.1 A Simple Example
  8.3.2 Copying Feature Values from the LHS to the RHS
  8.3.3 Optional or Empty Labels
  8.3.4 RHS Macros
 8.4 Use of Priority
 8.5 Using Phases Sequentially
 8.6 Using Java Code on the RHS
  8.6.1 A More Complex Example
  8.6.2 Adding a Feature to the Document
  8.6.3 Finding the Tokens of a Matched Annotation
  8.6.4 Using Named Blocks
  8.6.5 Java RHS Overview
 8.7 Optimising for Speed
 8.8 Ontology Aware Grammar Transduction
 8.9 Serializing JAPE Transducer
  8.9.1 How to Serialize?
  8.9.2 How to Use the Serialized Grammar File?
 8.10 Notes for Montreal Transducer Users

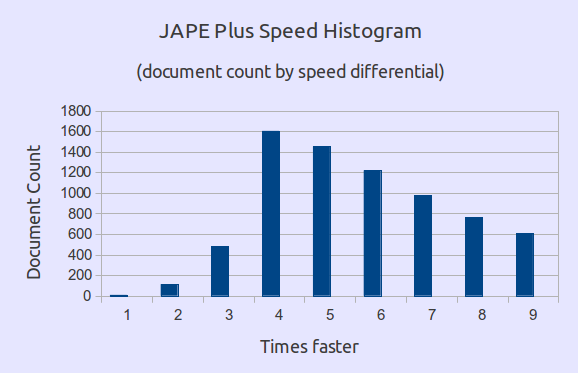

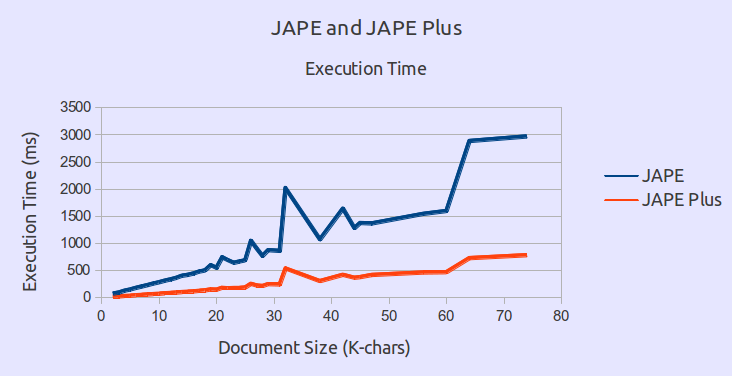

 8.11 JAPE Plus
9 ANNIC: ANNotations-In-Context
 9.1 Instantiating SSD
 9.2 Search GUI
  9.2.1 Overview
  9.2.2 Syntax of Queries
  9.2.3 Top Section
  9.2.4 Central Section
  9.2.5 Bottom Section
 9.3 Using SSD from GATE Embedded
  9.3.1 How to instantiate a searchabledatastore
  9.3.2 How to search in this datastore
10 Performance Evaluation of Language Analysers
 10.1 Metrics for Evaluation in Information Extraction
  10.1.1 Annotation Relations
  10.1.2 Cohen’s Kappa
  10.1.3 Precision, Recall, F-Measure
  10.1.4 Macro and Micro Averaging

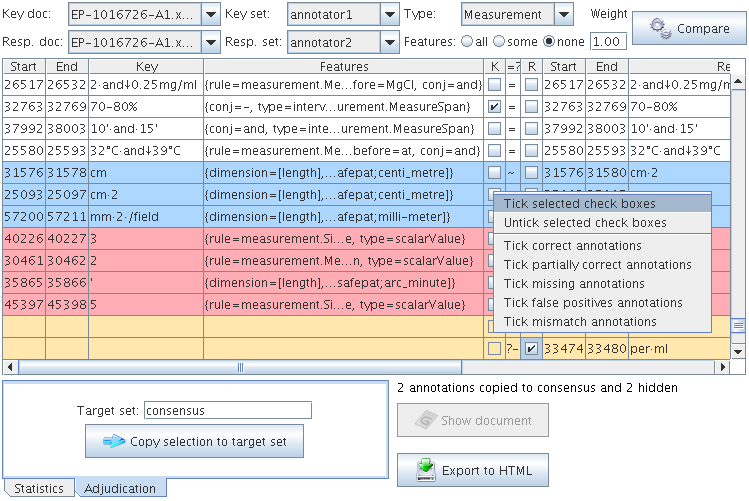

 10.2 The Annotation Diff Tool
  10.2.1 Performing Evaluation with the Annotation Diff Tool
  10.2.2 Creating a Gold Standard with the Annotation Diff Tool
 10.3 Corpus Quality Assurance
  10.3.1 Description of the interface
  10.3.2 Step by step usage
  10.3.3 Details of the Corpus statistics table
  10.3.4 Details of the Document statistics table
  10.3.5 GATE Embedded API for the measures
  10.3.6 sec:eval:qapr
 10.4 Corpus Benchmark Tool
  10.4.1 Preparing the Corpora for Use
  10.4.2 Defining Properties
  10.4.3 Running the Tool

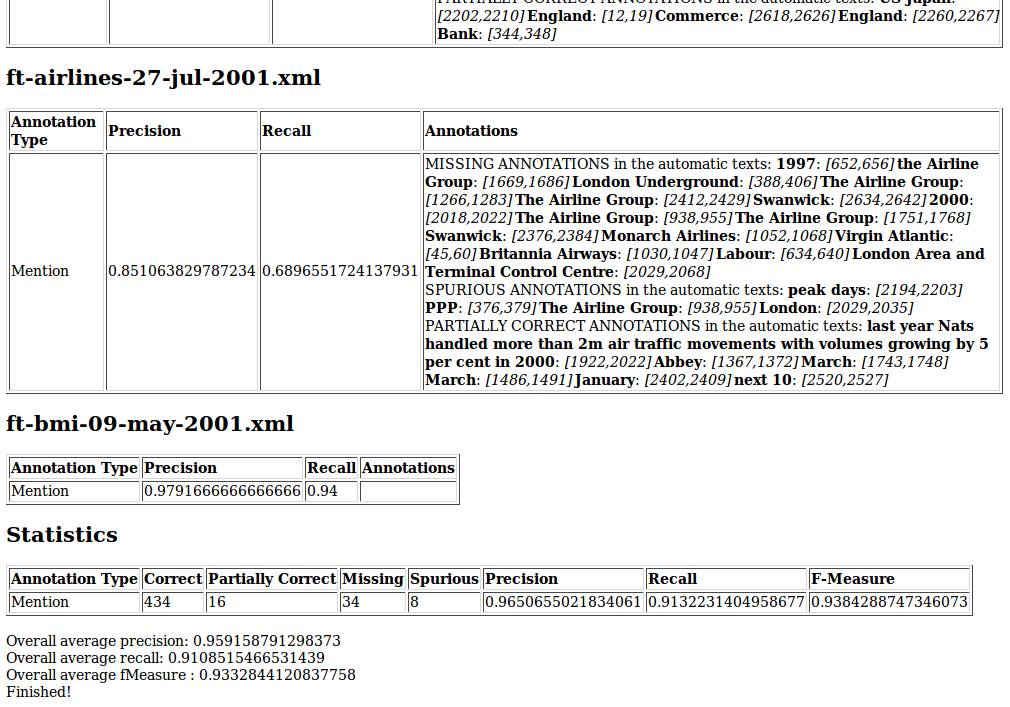

  10.4.4 The Results
 10.5 A Plugin Computing Inter-Annotator Agreement (IAA)
  10.5.1 IAA for Classification
  10.5.2 IAA For Named Entity Annotation
  10.5.3 The BDM-Based IAA Scores
 10.6 A Plugin Computing the BDM Scores for an Ontology
  10.6.1 Computing BDM from embedded code
 10.7 Quality Assurance Summariser for Teamware

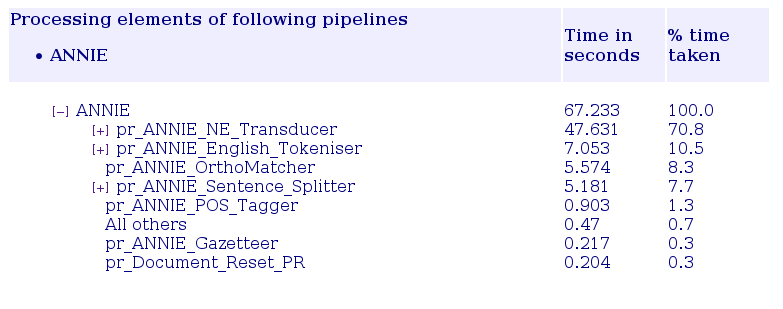

11 Profiling Processing Resources
 11.1 Overview
  11.1.1 Features
  11.1.2 Limitations
 11.2 Graphical User Interface
 11.3 Command Line Interface
 11.4 Application Programming Interface
  11.4.1 Log4j.properties
  11.4.2 Benchmark log format
  11.4.3 Enabling profiling
  11.4.4 Reporting tool
12 Developing GATE
 12.1 Reporting Bugs and Requesting Features
 12.2 Contributing Patches
 12.3 Creating New Plugins
  12.3.1 What to Call your Plugin
  12.3.2 Writing a New PR
  12.3.3 Writing a New VR
  12.3.4 Writing a ‘Ready Made’ Application
  12.3.5 Distributing Your New Plugins
 12.4 Adding your plugin to the default list
 12.5 Updating this User Guide
  12.5.1 Building the User Guide
  12.5.2 Making Changes to the User Guide
13 Gazetteers
 13.1 Introduction to Gazetteers
 13.2 ANNIE Gazetteer
  13.2.1 Creating and Modifying Gazetteer Lists

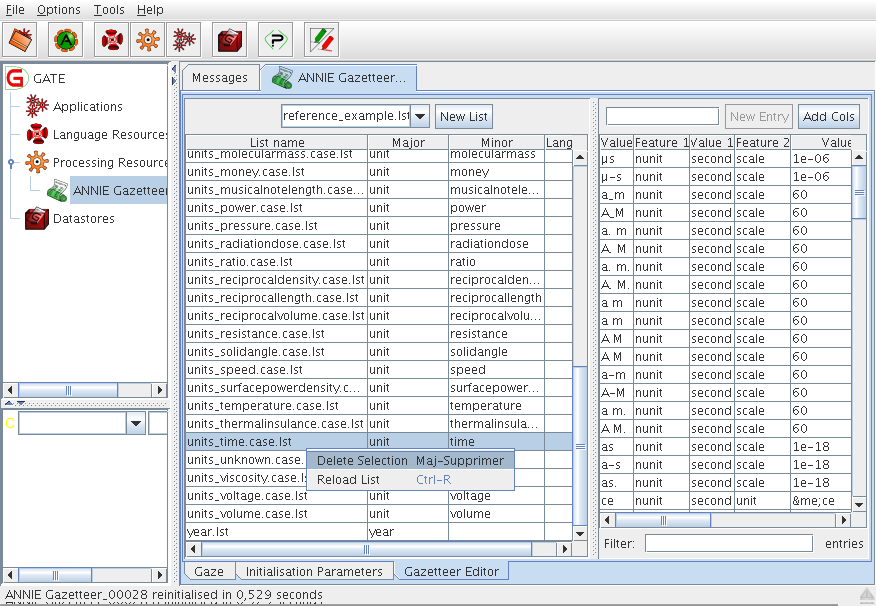

  13.2.2 ANNIE Gazetteer Editor
 13.3 OntoGazetteer
 13.4 Gaze Ontology Gazetteer Editor
  13.4.1 The Gaze Gazetteer List and Mapping Editor
  13.4.2 The Gaze Ontology Editor
 13.5 Hash Gazetteer
  13.5.1 Prerequisites
  13.5.2 Parameters
 13.6 Flexible Gazetteer

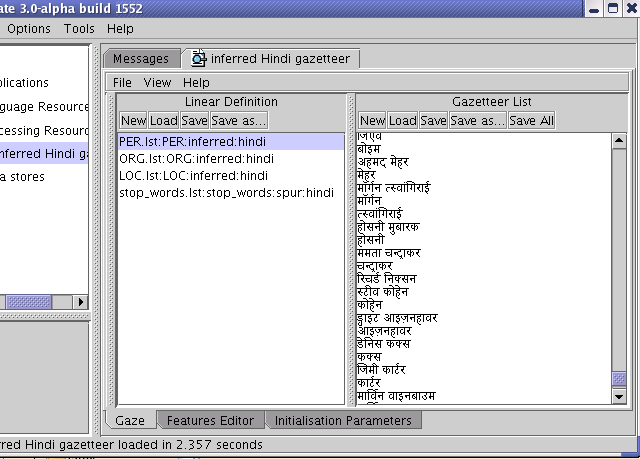

 13.7 Gazetteer List Collector

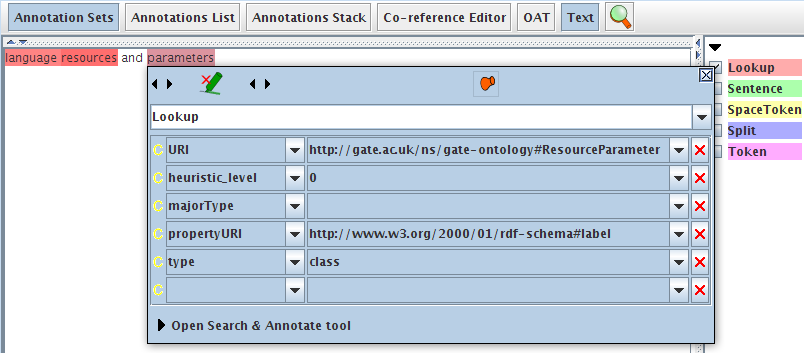

 13.8 OntoRoot Gazetteer

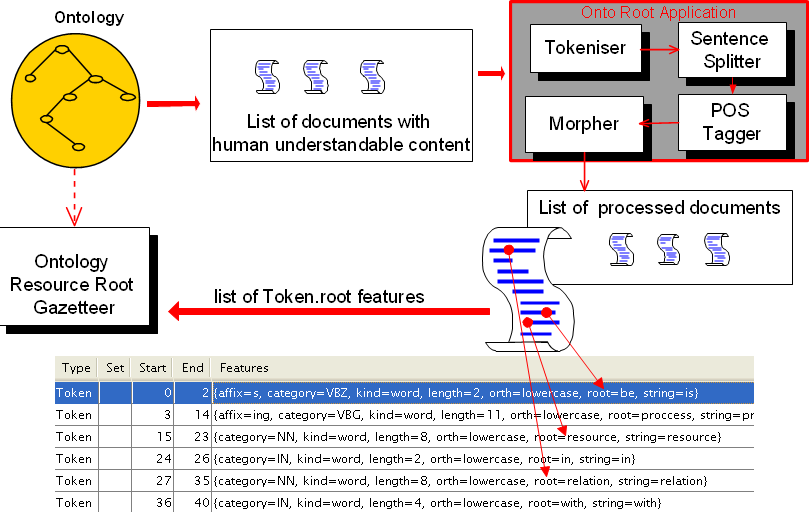

  13.8.1 How Does it Work?
  13.8.2 Initialisation of OntoRoot Gazetteer
  13.8.3 Simple steps to run OntoRoot Gazetteer
 13.9 Large KB Gazetteer
  13.9.1 Quick usage overview
  13.9.2 Dictionary setup
  13.9.3 Additional dictionary configuration
  13.9.4 Dictionary for Gazetteer List Files
  13.9.5 Processing Resource Configuration
  13.9.6 Runtime configuration
  13.9.7 Semantic Enrichment PR
 13.10 The Shared Gazetteer for multithreaded processing
14 Working with Ontologies
 14.1 Data Model for Ontologies
  14.1.1 Hierarchies of Classes and Restrictions
  14.1.2 Instances
  14.1.3 Hierarchies of Properties
  14.1.4 URIs
 14.2 Ontology Event Model
  14.2.1 What Happens when a Resource is Deleted?
 14.3 The Ontology Plugin
  14.3.1 Upgrading from previous versions of GATE
  14.3.2 The OWLIMOntology Language Resource

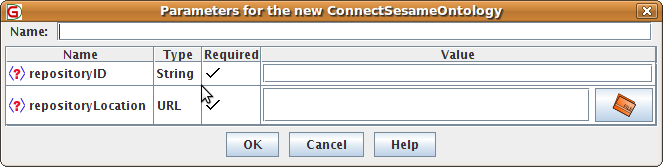

  14.3.3 The ConnectSesameOntology Language Resource

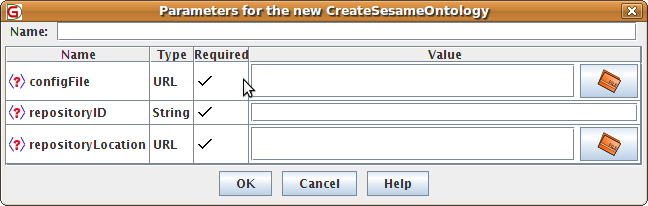

  14.3.4 The CreateSesameOntology Language Resource
  14.3.5 The OWLIM2 Backwards-Compatible Language Resource
  14.3.6 Using Ontology Import Mappings
  14.3.7 Using BigOWLIM
  14.3.8 The sesameCLI command line interface
 14.4 GATE Ontology Editor

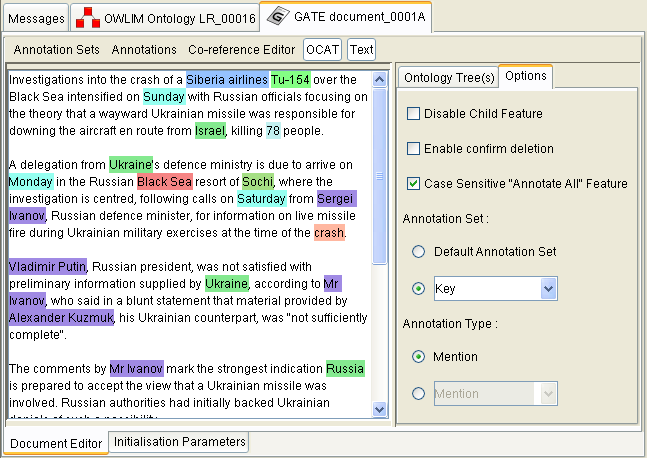

 14.5 Ontology Annotation Tool
  14.5.1 Viewing Annotated Text

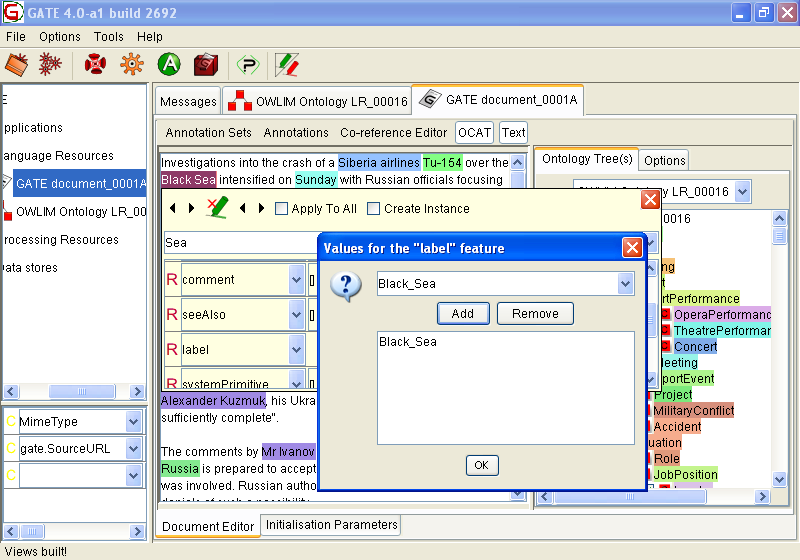

  14.5.2 Editing Existing Annotations

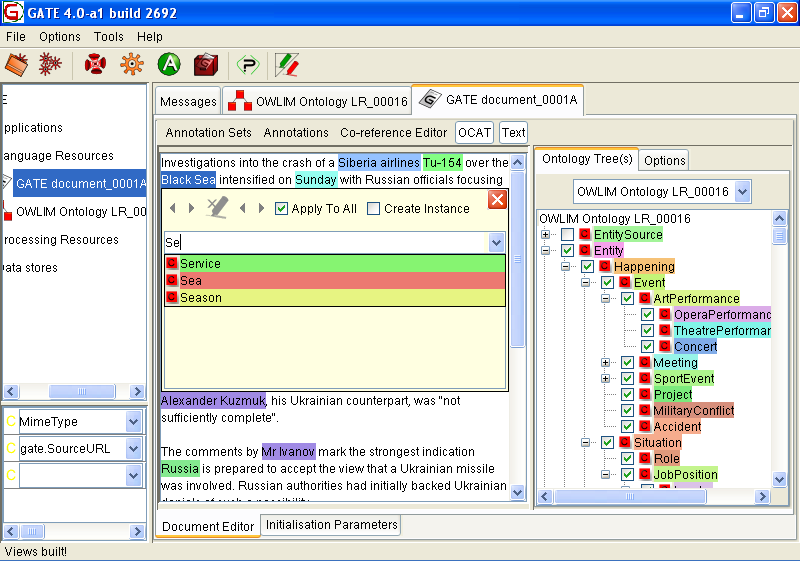

  14.5.3 Adding New Annotations
  14.5.4 Options
 14.6 Relation Annotation Tool
  14.6.1 Description of the two views
  14.6.2 Create new annotation and instance from text selection
  14.6.3 Create new annotation and add label to existing instance from text selection
  14.6.4 Create and set properties for annotation relation
  14.6.5 Delete instance, label or property
  14.6.6 Differences with OAT and Ontology Editor
 14.7 Using the ontology API
 14.8 Ontology-Aware JAPE Transducer
 14.9 Annotating Text with Ontological Information
 14.10 Populating Ontologies
15 Non-English Language Support
 15.1 Language Identification
  15.1.1 Fingerprint Generation
 15.2 French Plugin
 15.3 German Plugin
 15.4 Romanian Plugin
 15.5 Arabic Plugin
 15.6 Chinese Plugin
  15.6.1 Chinese Word Segmentation

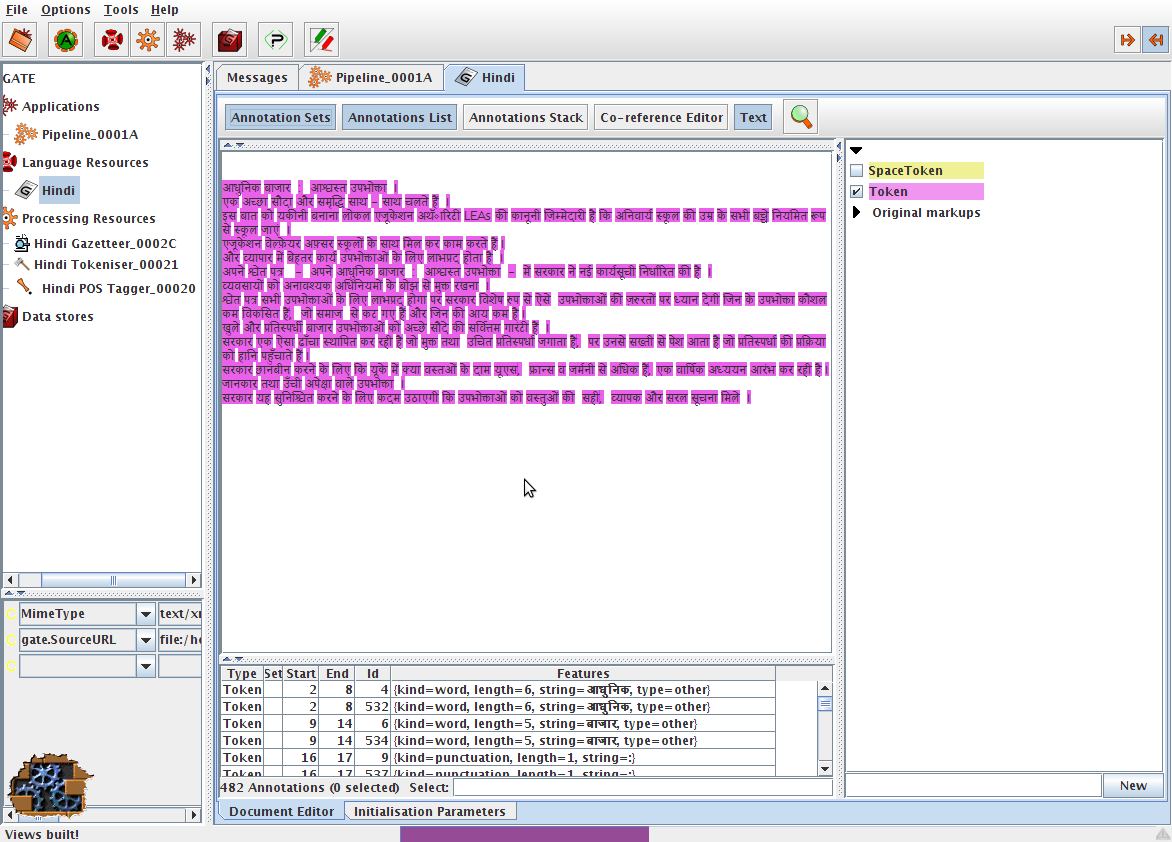

 15.7 Hindi Plugin
 15.8 Russian Plugin
 15.9 Bulgarian Plugin
 15.10 Danish Plugin
 15.11 Welsh Plugin
16 Domain Specific Resources
 16.1 Biomedical Support
  16.1.1 ABNER
  16.1.2 MetaMap
  16.1.3 GSpell biomedical spelling suggestion and correction
  16.1.4 BADREX
  16.1.5 MiniChem/Drug Tagger
  16.1.6 AbGene
  16.1.7 GENIA
  16.1.8 Penn BioTagger
  16.1.9 MutationFinder
17 Tools for Social Media Data
 17.1 Tools for Twitter
 17.2 Twitter JSON format
  17.2.1 Entity annotations in JSON
 17.3 Exporting GATE documents as JSON
 17.4 Low-level PRs for Tweets
 17.5 Handling multi-word hashtags
 17.6 The TwitIE Pipeline
18 Parsers
 18.1 RASP Parser
 18.2 SUPPLE Parser
  18.2.1 Requirements
  18.2.2 Building SUPPLE
  18.2.3 Running the Parser in GATE
  18.2.4 Viewing the Parse Tree
  18.2.5 System Properties
  18.2.6 Configuration Files
  18.2.7 Parser and Grammar
  18.2.8 Mapping Named Entities
  18.2.9 Upgrading from BuChart to SUPPLE
 18.3 Stanford Parser
  18.3.1 Input Requirements
  18.3.2 Initialization Parameters
  18.3.3 Runtime Parameters
19 Machine Learning
 19.1 Brief introduction to machine learning in GATE
20 Tools for Alignment Tasks
 20.1 Introduction
 20.2 The Tools

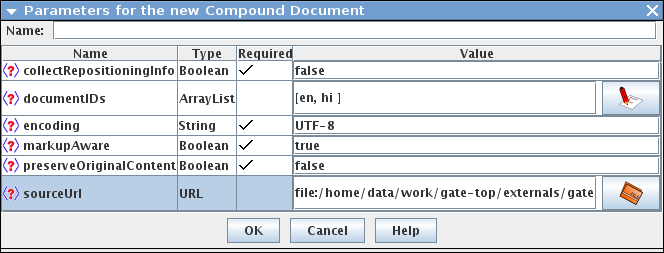

  20.2.1 Compound Document
  20.2.2 CompoundDocumentFromXml

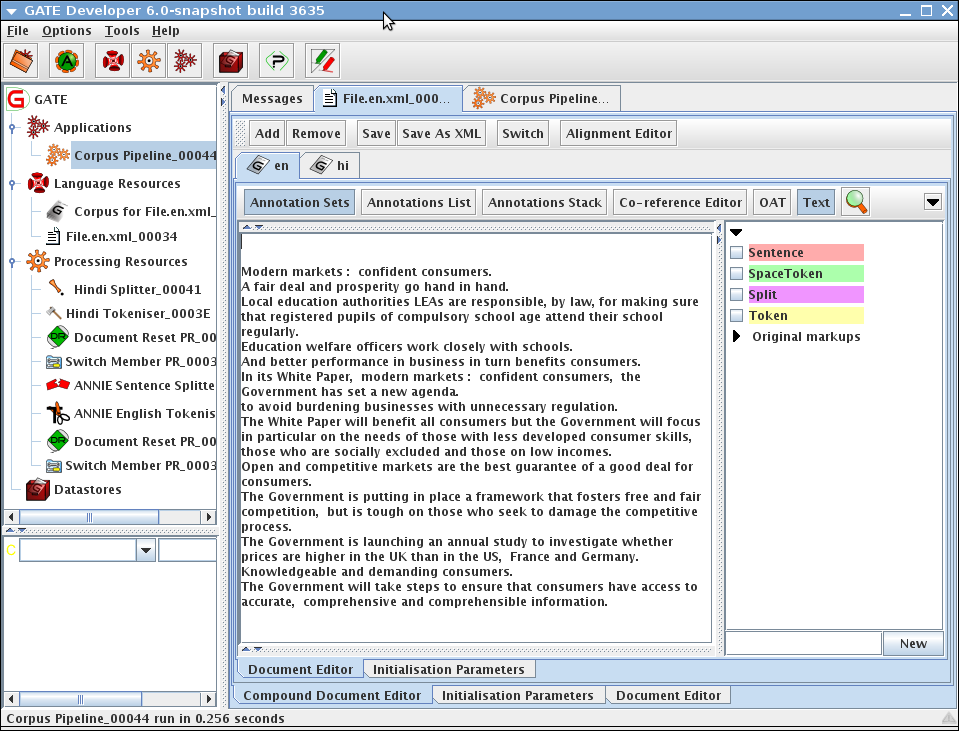

  20.2.3 Compound Document Editor
  20.2.4 Composite Document
  20.2.5 DeleteMembersPR
  20.2.6 SwitchMembersPR
  20.2.7 Saving as XML

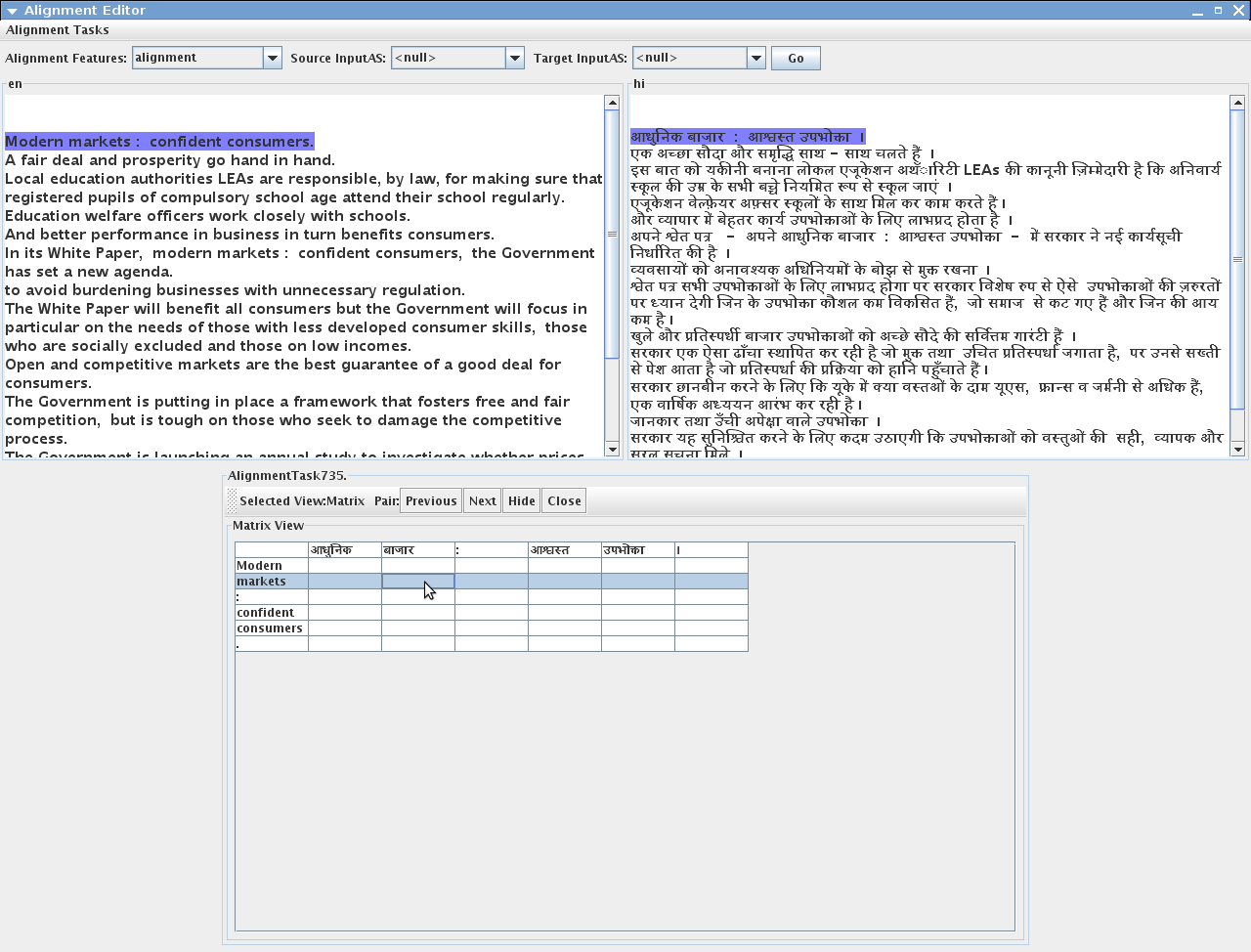

  20.2.8 Alignment Editor
  20.2.9 Saving Files and Alignments
  20.2.10 Section-by-Section Processing
21 Crowdsourcing Data with GATE
 21.1 The Basics
 21.2 Entity classification
  21.2.1 Creating a classification job
  21.2.2 Loading data into a job
  21.2.3 Importing the results
  21.2.4 Automatic adjudication
 21.3 Entity annotation

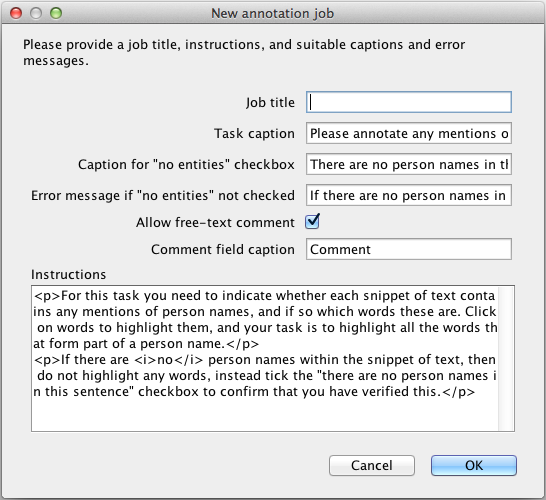

  21.3.1 Creating an annotation job
  21.3.2 Loading data into a job
  21.3.3 Importing the results
  21.3.4 Automatic adjudication
22 Combining GATE and UIMA
 22.1 Embedding a UIMA AE in GATE
  22.1.1 Mapping File Format
  22.1.2 The UIMA Component Descriptor
  22.1.3 Using the AnalysisEnginePR
 22.2 Embedding a GATE CorpusController in UIMA
  22.2.1 Mapping File Format
  22.2.2 The GATE Application Definition
  22.2.3 Configuring the GATEApplicationAnnotator
23 More (CREOLE) Plugins
 23.1 Verb Group Chunker
 23.2 Noun Phrase Chunker
  23.2.1 Differences from the Original
  23.2.2 Using the Chunker
 23.3 TaggerFramework
  23.3.1 TreeTagger—Multilingual POS Tagger
  23.3.2 GENIA and Double Quotes
 23.4 Chemistry Tagger
  23.4.1 Using the Tagger
 23.5 TextRazor Annotation Service
 23.6 Annotating Numbers
  23.6.1 Numbers in Words and Numbers
  23.6.2 Roman Numerals
 23.7 Annotating Measurements
 23.8 Annotating and Normalizing Dates
 23.9 Snowball Based Stemmers
  23.9.1 Algorithms

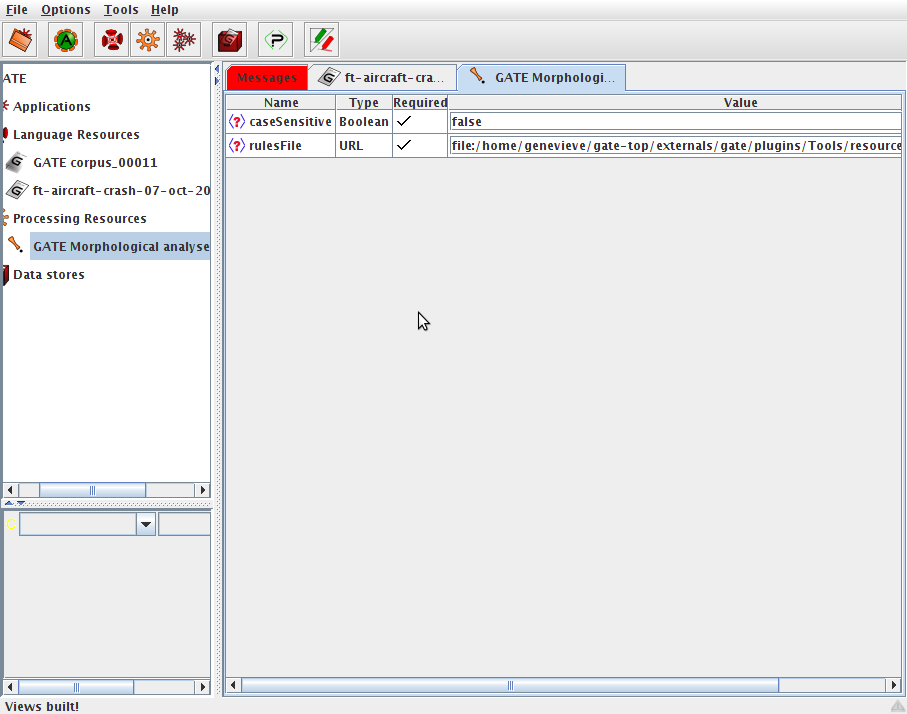

 23.10 GATE Morphological Analyzer
  23.10.1 Rule File
 23.11 Flexible Exporter
 23.12 Configurable Exporter
 23.13 Annotation Set Transfer
 23.14 Schema Enforcer

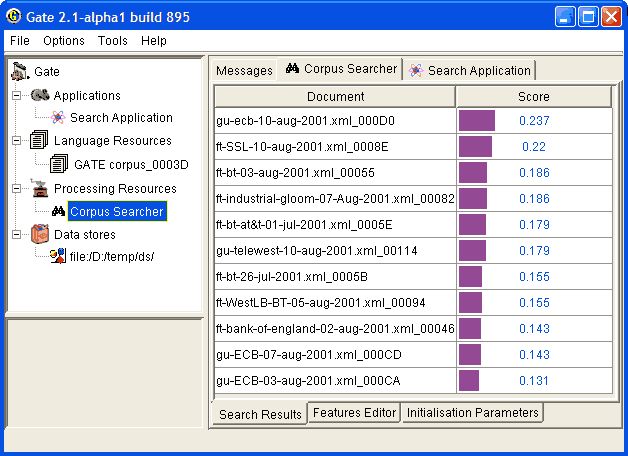

 23.15 Information Retrieval in GATE
  23.15.1 Using the IR Functionality in GATE
  23.15.2 Using the IR API
 23.16 Websphinx Web Crawler
  23.16.1 Using the Crawler PR
  23.16.2 Proxy configuration
 23.17 WordNet in GATE
  23.17.1 The WordNet API
 23.18 Kea - Automatic Keyphrase Detection
  23.18.1 Using the ‘KEA Keyphrase Extractor’ PR

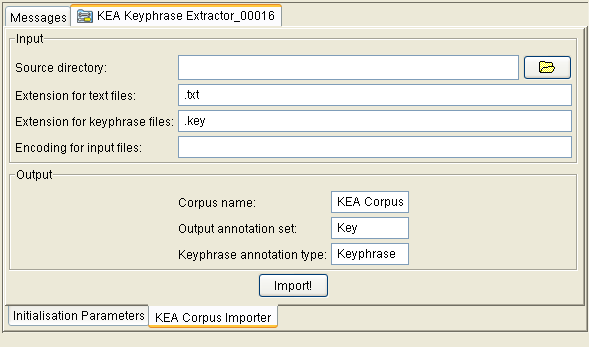

  23.18.2 Using Kea Corpora
 23.19 Annotation Merging Plugin
 23.20 Copying Annotations between Documents
 23.21 LingPipe Plugin
  23.21.1 LingPipe Tokenizer PR
  23.21.2 LingPipe Sentence Splitter PR
  23.21.3 LingPipe POS Tagger PR
  23.21.4 LingPipe NER PR
  23.21.5 LingPipe Language Identifier PR
 23.22 OpenNLP Plugin
  23.22.1 Init parameters and models
  23.22.2 OpenNLP PRs
  23.22.3 Obtaining and generating models
 23.23 Stanford CoreNLP
  23.23.1 Stanford Tagger
  23.23.2 Stanford Parser
  23.23.3 Stanford Named Entity Recognition
 23.24 Content Detection Using Boilerpipe
 23.25 Inter Annotator Agreement
 23.26 Schema Annotation Editor
 23.27 Coref Tools Plugin
 23.28 Pubmed Format
 23.29 MediaWiki Format
 23.30 Fast Infoset Document Format
 23.31 DataSift Document Format
 23.32 CSV Document Support
 23.33 TermRaider term extraction tools
  23.33.1 Termbank language resources
  23.33.2 Termbank Score Copier
  23.33.3 The PMI bank language resource
 23.34 Document Normalizer
 23.35 Developer Tools
 23.36 Linguistic Simplifier
 23.37 GATE-Time
  23.37.1 DCTParser
  23.37.2 HeidelTime
  23.37.3 TimeML Event Detection
IV  The GATE Family: Cloud, MIMIR, Teamware
24 GATE Cloud
 24.1 GATE Cloud services: an overview
 24.2 Using GATE Cloud services
 24.3 Annotation Jobs on GATE Cloud
  24.3.1 The Annotation Service Charges Explained
  24.3.2 Where to find more details
25 GATE Teamware: A Web-based Collaborative Corpus Annotation Tool
 25.1 Introduction
 25.2 Requirements for Multi-Role Collaborative Annotation Environments
  25.2.1 Typical Division of Labour
  25.2.2 Remote, Scalable Data Storage
  25.2.3 Automatic annotation services
  25.2.4 Workflow Support

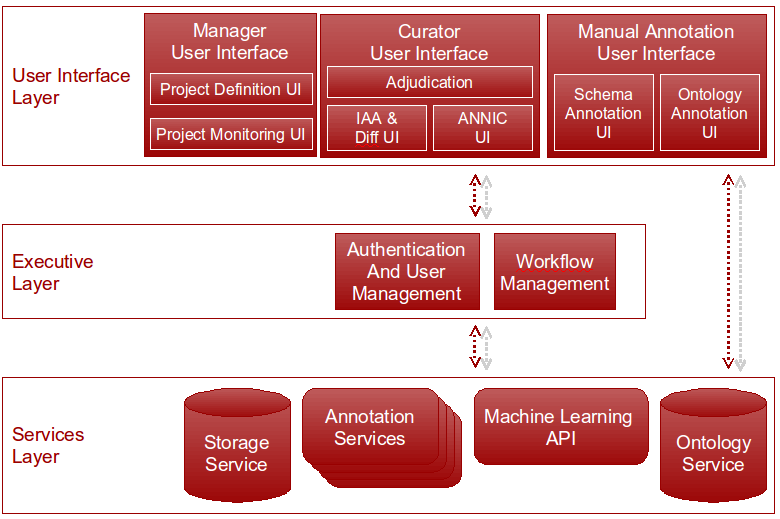

 25.3 Teamware: Architecture, Implementation, and Examples
  25.3.1 Data Storage Service
  25.3.2 Annotation Services
  25.3.3 The Executive Layer
  25.3.4 The User Interfaces
 25.4 Practical Applications
26 GATE Mímir
A Change Log
 A.1 Version 8.5.1 (June 2018)
 A.2 Version 8.5 (May 2018)
  A.2.1 For developers
 A.3 Version 8.4.1 (June 2017)
 A.4 Version 8.4 (February 2017)
  A.4.1 Java compatibility
 A.5 Version 8.3 (January 2017)
  A.5.1 Java compatibility
 A.6 Version 8.2 (May 2016)
  A.6.1 Java compatibility
 A.7 Version 8.1 (June 2015)
  A.7.1 New plugins and significant new features
  A.7.2 Library updates and bugfixes
  A.7.3 Tools for developers
 A.8 Version 8.0 (May 2014)
  A.8.1 Major changes
  A.8.2 Other new and improved plugins
  A.8.3 Bug fixes and other improvements
  A.8.4 For developers
 A.9 Version 7.1 (November 2012)
  A.9.1 New plugins
  A.9.2 Library updates
  A.9.3 GATE Embedded API changes
 A.10 Version 7.0 (February 2012)
  A.10.1 Major new features
  A.10.2 Removal of deprecated functionality
  A.10.3 Other enhancements and bug fixes
 A.11 Version 6.1 (April 2011)
  A.11.1 New CREOLE Plugins
  A.11.2 Other new features and improvements
 A.12 Version 6.0 (November 2010)
  A.12.1 Major new features
  A.12.2 Breaking changes
  A.12.3 Other new features and bugfixes
 A.13 Version 5.2.1 (May 2010)
 A.14 Version 5.2 (April 2010)
  A.14.1 JAPE and JAPE-related
  A.14.2 Other Changes
 A.15 Version 5.1 (December 2009)
  A.15.1 New Features
  A.15.2 JAPE improvements
  A.15.3 Other improvements and bug fixes
 A.16 Version 5.0 (May 2009)
  A.16.1 Major New Features
  A.16.2 Other New Features and Improvements
  A.16.3 Specific Bug Fixes
 A.17 Version 4.0 (July 2007)
  A.17.1 Major New Features
  A.17.2 Other New Features and Improvements
  A.17.3 Bug Fixes and Optimizations
 A.18 Version 3.1 (April 2006)
  A.18.1 Major New Features
  A.18.2 Other New Features and Improvements
  A.18.3 Bug Fixes
 A.19 January 2005
 A.20 December 2004
 A.21 September 2004
 A.22 Version 3 Beta 1 (August 2004)
 A.23 July 2004
 A.24 June 2004
 A.25 April 2004
 A.26 March 2004
 A.27 Version 2.2 – August 2003
 A.28 Version 2.1 – February 2003
 A.29 June 2002
B Version 5.1 Plugins Name Map
C Obsolete CREOLE Plugins
 C.1 Ontotext JapeC Compiler
 C.2 Google Plugin
 C.3 Yahoo Plugin
  C.3.1 Using the YahooPR
 C.4 Gazetteer Visual Resource - GAZE
  C.4.1 Display Modes
  C.4.2 Linear Definition Pane
  C.4.3 Linear Definition Toolbar
  C.4.4 Operations on Linear Definition Nodes
  C.4.5 Gazetteer List Pane
  C.4.6 Mapping Definition Pane
 C.5 Google Translator PR
D Design Notes
 D.1 Patterns
  D.1.1 Components
  D.1.2 Model, view, controller
  D.1.3 Interfaces
 D.2 Exception Handling
E Ant Tasks for GATE
 E.1 Declaring the Tasks
 E.2 The packagegapp task - bundling an application with its dependencies
  E.2.1 Introduction
  E.2.2 Basic Usage
  E.2.3 Handling Non-Plugin Resources
  E.2.4 Streamlining your Plugins
  E.2.5 Bundling Extra Resources
 E.3 The expandcreoles Task - Merging Annotation-Driven Config into creole.xml
F Named-Entity State Machine Patterns
 F.1 Main.jape
 F.2 first.jape
 F.3 firstname.jape
 F.4 name.jape
  F.4.1 Person
  F.4.2 Location
  F.4.3 Organization
  F.4.4 Ambiguities
  F.4.5 Contextual information
 F.5 name_post.jape
 F.6 date_pre.jape
 F.7 date.jape
 F.8 reldate.jape
 F.9 number.jape
 F.10 address.jape
 F.11 url.jape
 F.12 identifier.jape
 F.13 jobtitle.jape
 F.14 final.jape
 F.15 unknown.jape
 F.16 name_context.jape
 F.17 org_context.jape
 F.18 loc_context.jape
 F.19 clean.jape
G Part-of-Speech Tags used in the Hepple Tagger
H Copyright and Licence

Part I
GATE Basics [#]

Chapter 1
Introduction [#]

A computer language is not just a way of getting a computer to perform operations but rather that it is a novel formal medium for expressing ideas about methodology. Thus, programs must be written for people to read, and only incidentally for machines to execute. (The Structure and Interpretation of Computer Programs, H. Abelson, G. Sussman and J. Sussman, 1985.)

If you try to make something beautiful, it is often ugly. If you try to make something useful, it is often beautiful. (Oscar Wilde)1

GATE2 is an infrastructure for developing and deploying software components that process human language. It is nearly 15 years old and is in active use for all types of computational task involving human language. GATE excels at text analysis of all shapes and sizes. From large corporations to small startups, from multi-million research consortia to undergraduate projects, our user community is the largest and most diverse of any system of this type, and is spread across all but one of the continents3.

GATE is open source free software; users can obtain free support from the user and developer community via GATE.ac.uk or on a commercial basis from our industrial partners. We are the biggest open source language processing project with a development team more than double the size of the largest comparable projects (many of which are integrated with GATE4). More than 5 million has been invested in GATE development5; our objective is to make sure that this continues to be money well spent for all GATE’s users.

The GATE family of tools has grown over the years to include a desktop client for developers, a workflow-based web application, a Java library, an architecture and a process. GATE is:

We also develop:

For more information on the GATE family see http://gate.ac.uk/family/ and also Part IV of this book.

One of our original motivations was to remove the necessity for solving common engineering problems before doing useful research, or re-engineering before deploying research results into applications. Core functions of GATE take care of the lion’s share of the engineering:

On top of the core functions GATE includes components for diverse language processing tasks, e.g. parsers, morphology, tagging, Information Retrieval tools, Information Extraction components for various languages, and many others. GATE Developer and Embedded are supplied with an Information Extraction system (ANNIE) which has been adapted and evaluated very widely (numerous industrial systems, research systems evaluated in MUC, TREC, ACE, DUC, Pascal, NTCIR, etc.). ANNIE is often used to create RDF or OWL (metadata) for unstructured content (semantic annotation).

GATE version 1 was written in the mid-1990s; at the turn of the new millennium we completely rewrote the system in Java; version 5 was released in June 2009; and version 6 — in November 2010. We believe that GATE is the leading system of its type, but as scientists we have to advise you not to take our word for it; that’s why we’ve measured our software in many of the competitive evaluations over the last decade-and-a-half (MUC, TREC, ACE, DUC and more; see Section 1.4 for details). We invite you to give it a try, to get involved with the GATE community, and to contribute to human language science, engineering and development.

This book describes how to use GATE to develop language processing components, test their performance and deploy them as parts of other applications. In the rest of this chapter:

Note: if you don’t see the component you need in this document, or if we mention a component that you can’t see in the software, contact gate-users@lists.sourceforge.net7 – various components are developed by our collaborators, who we will be happy to put you in contact with. (Often the process of getting a new component is as simple as typing the URL into GATE Developer; the system will do the rest.)

1.1 How to Use this Text [#]

The material presented in this book ranges from the conceptual (e.g. ‘what is software architecture?’) to practical instructions for programmers (e.g. how to deal with GATE exceptions) and linguists (e.g. how to write a pattern grammar). Furthermore, GATE’s highly extensible nature means that new functionality is constantly being added in the form of new plugins. Important functionality is as likely to be located in a plugin as it is to be integrated into the GATE core. This presents something of an organisational challenge. Our (no doubt imperfect) solution is to divide this book into three parts. Part I covers installation, using the GATE Developer GUI and using ANNIE, as well as providing some background and theory. We recommend the new user to begin with Part I. Part II covers the more advanced of the core GATE functionality; the GATE Embedded API and JAPE pattern language among other things. Part III provides a reference for the numerous plugins that have been created for GATE. Although ANNIE provides a good starting point, the user will soon wish to explore other resources, and so will need to consult this part of the text. We recommend that Part III be used as a reference, to be dipped into as necessary. In Part III, plugins are grouped into broad areas of functionality.

1.2 Context [#]

GATE can be thought of as a Software Architecture for Language Engineering [Cunningham 00].

‘Software Architecture’ is used rather loosely here to mean computer infrastructure for software development, including development environments and frameworks, as well as the more usual use of the term to denote a macro-level organisational structure for software systems [Shaw & Garlan 96].

Language Engineering (LE) may be defined as:

…the discipline or act of engineering software systems that perform tasks involving processing human language. Both the construction process and its outputs are measurable and predictable. The literature of the field relates to both application of relevant scientific results and a body of practice. [Cunningham 99a]

The relevant scientific results in this case are the outputs of Computational Linguistics, Natural Language Processing and Artificial Intelligence in general. Unlike these other disciplines, LE, as an engineering discipline, entails predictability, both of the process of constructing LE-based software and of the performance of that software after its completion and deployment in applications.

Some working definitions:

  1. Computational Linguistics (CL): science of language that uses computation as an investigative tool.
  2. Natural Language Processing (NLP): science of computation whose subject matter is data structures and algorithms for computer processing of human language.
  3. Language Engineering (LE): building NLP systems whose cost and outputs are measurable and predictable.
  4. Software Architecture: macro-level organisational principles for families of systems. In this context is also used as infrastructure.
  5. Software Architecture for Language Engineering (SALE): software infrastructure, architecture and development tools for applied CL, NLP and LE.

(Of course the practice of these fields is broader and more complex than these definitions.)

In the scientific endeavours of NLP and CL, GATE’s role is to support experimentation. In this context GATE’s significant features include support for automated measurement (see Chapter 10), providing a ‘level playing field’ where results can easily be repeated across different sites and environments, and reducing research overheads in various ways.

1.3 Overview [#]

1.3.1 Developing and Deploying Language Processing Facilities [#]

GATE as an architecture suggests that the elements of software systems that process natural language can usefully be broken down into various types of component, known as resources8. Components are reusable software chunks with well-defined interfaces, and are a popular architectural form, used in Sun’s Java Beans and Microsoft’s .Net, for example. GATE components are specialised types of Java Bean, and come in three flavours:

These definitions can be blurred in practice as necessary.

Collectively, the set of resources integrated with GATE is known as CREOLE: a Collection of REusable Objects for Language Engineering. All the resources are packaged as Java Archive (or ‘JAR’) files, plus some XML configuration data. The JAR and XML files are made available to GATE by putting them on a web server, or simply placing them in the local file space. Section 1.3.2 introduces GATE’s built-in resource set.

When using GATE to develop language processing functionality for an application, the developer uses GATE Developer and GATE Embedded to construct resources of the three types. This may involve programming, or the development of Language Resources such as grammars that are used by existing Processing Resources, or a mixture of both. GATE Developer is used for visualisation of the data structures produced and consumed during processing, and for debugging, performance measurement and so on. For example, figure 1.1 is a screenshot of one of the visualisation tools.

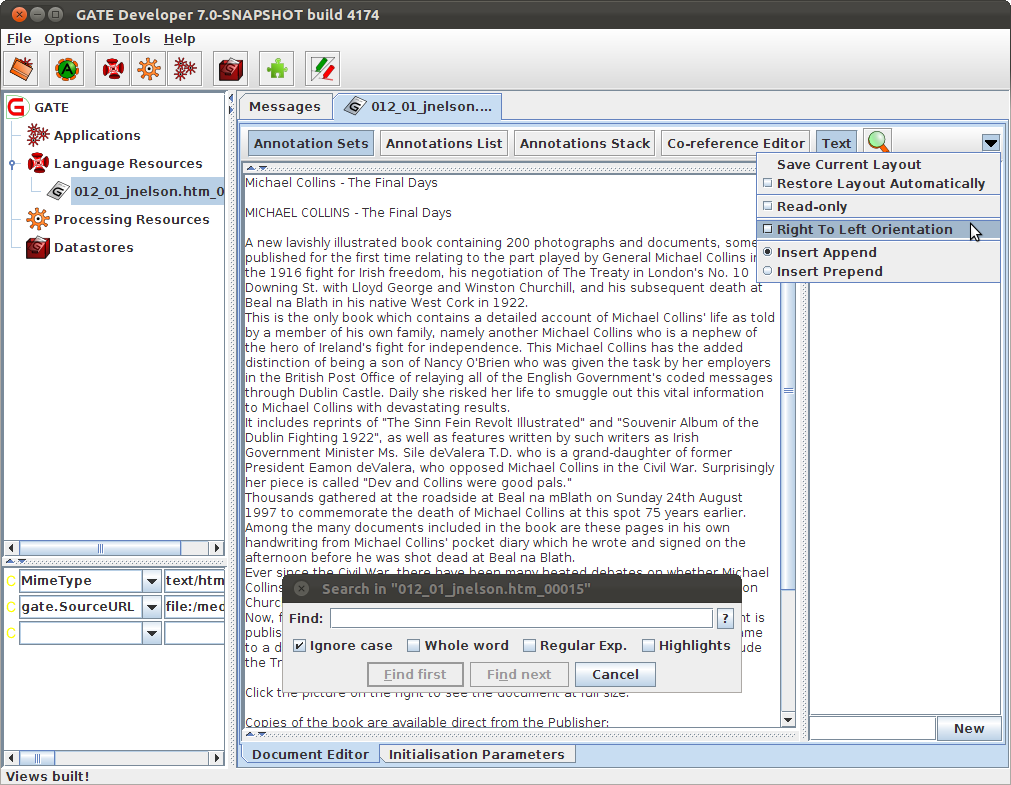

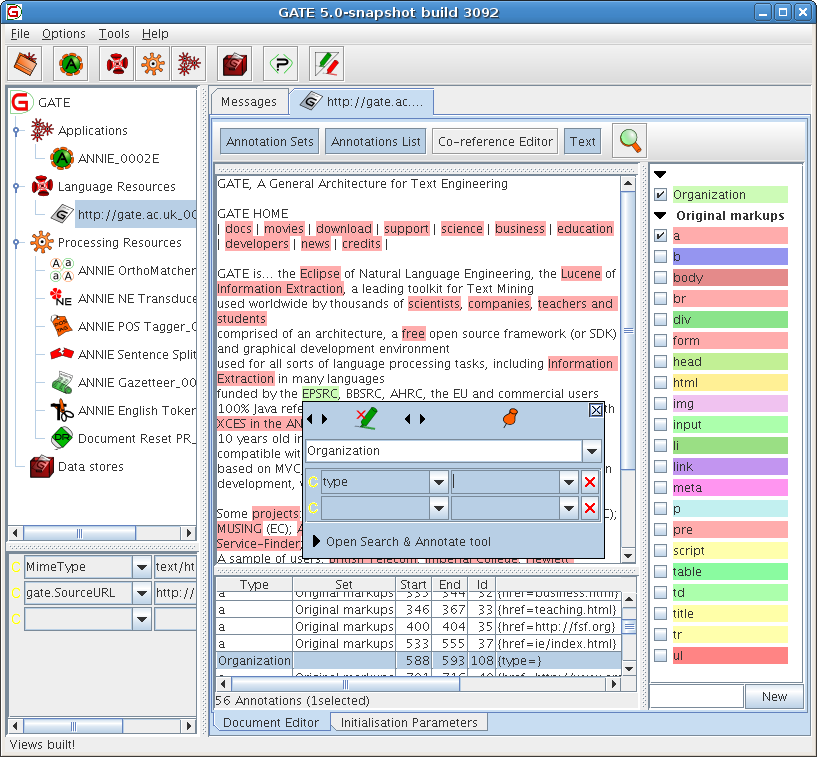

Figure 1.1: One of GATE’s visual resources

GATE Developer is analogous to systems like Mathematica for Mathematicians, or JBuilder for Java programmers: it provides a convenient graphical environment for research and development of language processing software.

When an appropriate set of resources have been developed, they can then be embedded in the target client application using GATE Embedded. GATE Embedded is supplied as a series of JAR files.9 To embed GATE-based language processing facilities in an application, these JAR files are all that is needed, along with JAR files and XML configuration files for the various resources that make up the new facilities.

1.3.2 Built-In Components [#]

GATE includes resources for common LE data structures and algorithms, including documents, corpora and various annotation types, a set of language analysis components for Information Extraction and a range of data visualisation and editing components.

GATE supports documents in a variety of formats including XML, RTF, email, HTML, SGML and plain text. In all cases the format is analysed and converted into a single unified model of annotation. The annotation format is a modified form of the TIPSTER format [Grishman 97] which has been made largely compatible with the Atlas format [Bird & Liberman 99], and uses the now standard mechanism of ‘stand-off markup’. GATE documents, corpora and annotations are stored in databases of various sorts, visualised via the development environment, and accessed at code level via the framework. See Chapter 5 for more details of corpora etc.

A family of Processing Resources for language analysis is included in the shape of ANNIE, A Nearly-New Information Extraction system. These components use finite state techniques to implement various tasks from tokenisation to semantic tagging or verb phrase chunking. All ANNIE components communicate exclusively via GATE’s document and annotation resources. See Chapter 6 for more details. Other CREOLE resources are described in Part III.

1.3.3 Additional Facilities in GATE Developer/Embedded [#]

Three other facilities in GATE deserve special mention:

1.3.4 An Example [#]

This section gives a very brief example of a typical use of GATE to develop and deploy language processing capabilities in an application, and to generate quantitative results for scientific publication.

Let’s imagine that a developer called Fatima is building an email client11 for Cyberdyne Systems’ large corporate Intranet. In this application she would like to have a language processing system that automatically spots the names of people in the corporation and transforms them into mailto hyperlinks.

A little investigation shows that GATE’s existing components can be tailored to this purpose. Fatima starts up GATE Developer, and creates a new document containing some example emails. She then loads some processing resources that will do named-entity recognition (a tokeniser, gazetteer and semantic tagger), and creates an application to run these components on the document in sequence. Having processed the emails, she can see the results in one of several viewers for annotations.

The GATE components are a decent start, but they need to be altered to deal specially with people from Cyberdyne’s personnel database. Therefore Fatima creates new ‘cyber-’ versions of the gazetteer and semantic tagger resources, using the ‘bootstrap’ tool. This tool creates a directory structure on disk that has some Java stub code, a Makefile and an XML configuration file. After several hours struggling with badly written documentation, Fatima manages to compile the stubs and create a JAR file containing the new resources. She tells GATE Developer the URL of these files12, and the system then allows her to load them in the same way that she loaded the built-in resources earlier on.

Fatima then creates a second copy of the email document, and uses the annotation editing facilities to mark up the results that she would like to see her system producing. She saves this and the version that she ran GATE on into her serial datastore. From now on she can follow this routine:

  1. Run her application on the email test corpus.

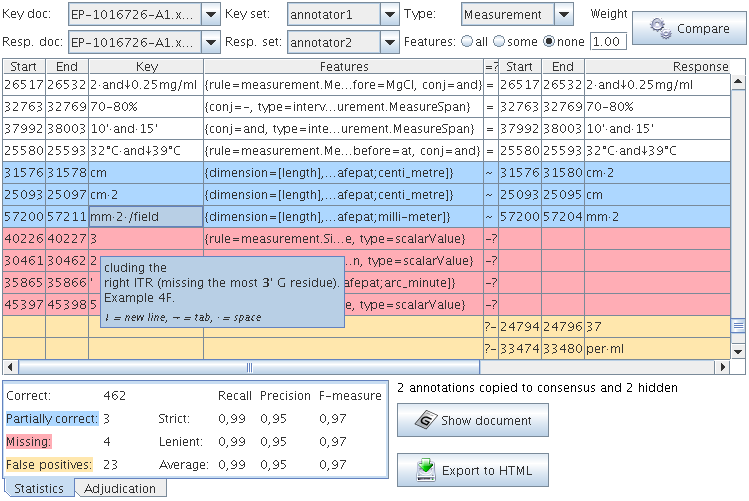

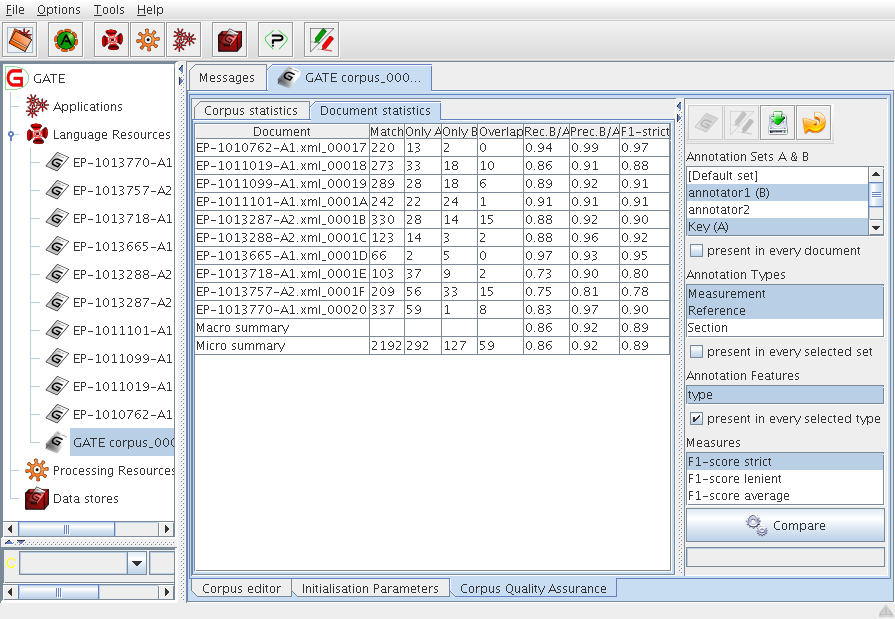

  2. Check the performance of the system by running the ‘annotation diff’ tool to compare her manual results with the system’s results. This gives her both percentage accuracy figures and a graphical display of the differences between the machine and human outputs.
  3. Make edits to the code, pattern grammars or gazetteer lists in her resources, and recompile where necessary.
  4. Tell GATE Developer to re-initialise the resources.
  5. Go to 1.

To make the alterations that she requires, Fatima re-implements the ANNIE gazetteer so that it regenerates itself from the local personnel data. She then alters the pattern grammar in the semantic tagger to prioritise recognition of names from that source. This latter job involves learning the JAPE language (see Chapter 8), but as this is based on regular expressions it isn’t too difficult.

Eventually the system is running nicely, and her accuracy is 93% (there are still some problem cases, e.g. when people use nicknames, but the performance is good enough for production use). Now Fatima stops using GATE Developer and works instead on embedding the new components in her email application using GATE Embedded. This application is written in Java, so embedding is very easy13: the GATE JAR files are added to the project CLASSPATH, the new components are placed on a web server, and with a little code to do initialisation, loading of components and so on, the job is finished in half a day – the code to talk to GATE takes up only around 150 lines of the eventual application, most of which is just copied from the example in the sheffield.examples.StandAloneAnnie class.

Because Fatima is worried about Cyberdyne’s unethical policy of developing Skynet to help the large corporates of the West strengthen their strangle-hold over the World, she wants to get a job as an academic instead (so that her conscience will only have to cope with the torture of students, as opposed to humanity). She takes the accuracy measures that she has attained for her system and writes a paper for the Journal of Nasturtium Logarithm Incitement describing the approach used and the results obtained. Because she used GATE for development, she can cite the repeatability of her experiments and offer access to example binary versions of her software by putting them on an external web server.

And everybody lived happily ever after.

1.4 Some Evaluations [#]

This section contains an incomplete list of publications describing systems that used GATE in competitive quantitative evaluation programmes. These programmes have had a significant impact on the language processing field and the widespread presence of GATE is some measure of the maturity of the system and of our understanding of its likely performance on diverse text processing tasks.

[Li et al. 07d]
describes the performance of an SVM-based learning system in the NTCIR-6 Patent Retrieval Task. The system achieved the best result on two of three measures used in the task evaluation, namely the R-Precision and F-measure. The system obtained close to the best result on the remaining measure (A-Precision).
[Saggion 07]
describes a cross-source coreference resolution system based on semantic clustering. It uses GATE for information extraction and the SUMMA system to create summaries and semantic representations of documents. One system configuration ranked 4th in the Web People Search 2007 evaluation.
[Saggion 06]
describes a cross-lingual summarization system which uses SUMMA components and the Arabic plugin available in GATE to produce summaries in English from a mixture of English and Arabic documents.
Open-Domain Question Answering:
The University of Sheffield has a long history of research into open-domain question answering. GATE has formed the basis of much of this research resulting in systems which have ranked highly during independent evaluations since 1999. The first successful question answering system developed at the University of Sheffield was evaluated as part of TREC 8 and used the LaSIE information extraction system (the forerunner of ANNIE) which was distributed with GATE [Humphreys et al. 99]. Further research was reported in [Scott & Gaizauskas. 00], [Greenwood et al. 02], [Gaizauskas et al. 03], [Gaizauskas et al. 04] and [Gaizauskas et al. 05]. In 2004 the system was ranked 9th out of 28 participating groups.
[Saggion 04]
describes techniques for answering definition questions. The system uses definition patterns manually implemented in GATE as well as learned JAPE patterns induced from a corpus. In 2004, the system was ranked 4th in the TREC/QA evaluations.
[Saggion & Gaizauskas 04b]
describes a multidocument summarization system implemented using summarization components compatible with GATE (the SUMMA system). The system was ranked 2nd in the Document Understanding Evaluation programmes.
[Maynard et al. 03e] and [Maynard et al. 03d]
describe participation in the TIDES surprise language program. ANNIE was adapted to Cebuano with four person days of effort, and achieved an F-measure of 77.5%. Unfortunately, ours was the only system participating!
[Maynard et al. 02b] and [Maynard et al. 03b]
describe results obtained on systems designed for the ACE task (Automatic Content Extraction). Although a comparison to other participating systems cannot be revealed due to the stipulations of ACE, results show 82%-86% precision and recall.
[Humphreys et al. 98]
describes the LaSIE-II system used in MUC-7.
[Gaizauskas et al. 95]
describes the LaSIE-II system used in MUC-6.

1.5 Recent Changes [#]

This section details recent changes made to GATE. Appendix A provides a complete change log.

1.5.1 Version 8.5.1 (June 2018) [#]

Version 8.5.1 is a minor release to fix a few critical bugs in 8.5:

1.5.2 Version 8.5 (May 2018) [#]

GATE Developer and Embedded 8.5 introduces a number of significant internal changes to the way plugins are managed, but with the exception of the plugin manager most users will not see significant changes in the way they use GATE.

GATE 8.5 remains backwards compatible with existing third-party plugins, though we encourage you to convert your plugins to the new style where possible.

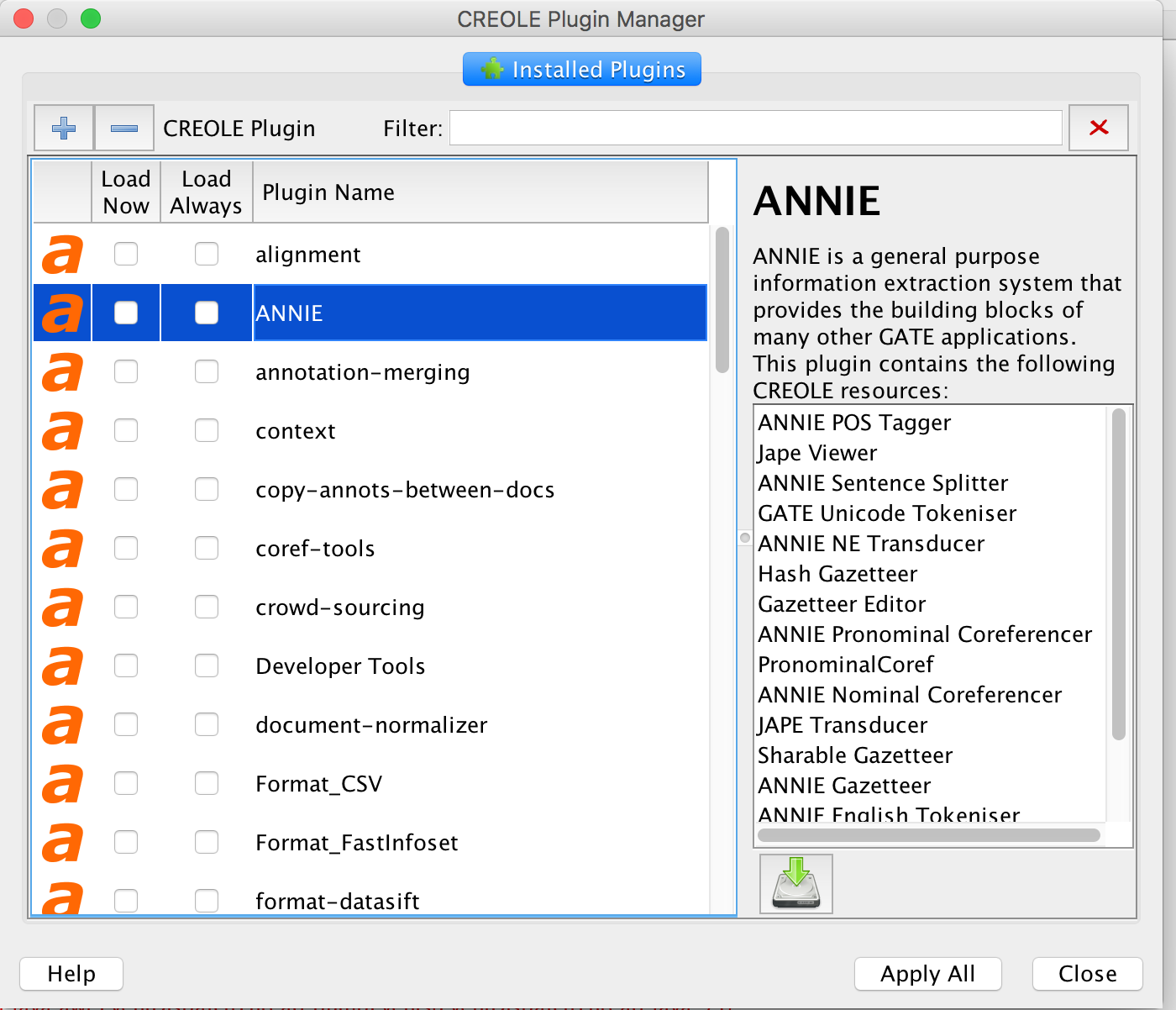

Further details on these changes can be found in sections 3.5 (the plugin manager in GATE Developer), 7.3 (loading plugins via the GATE Embedded API), 7.12 (creating a new plugin from scratch), and 7.20 (converting an existing plugin to the new style).

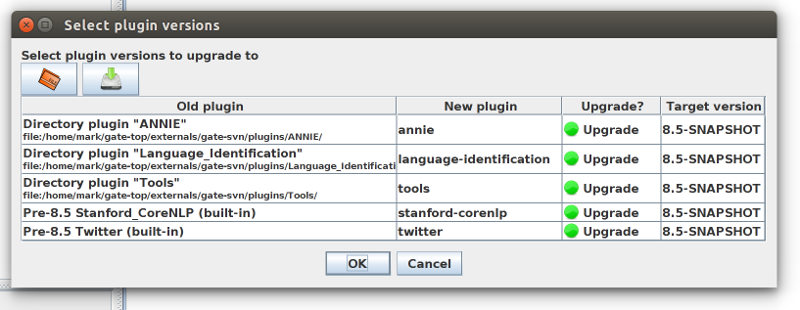

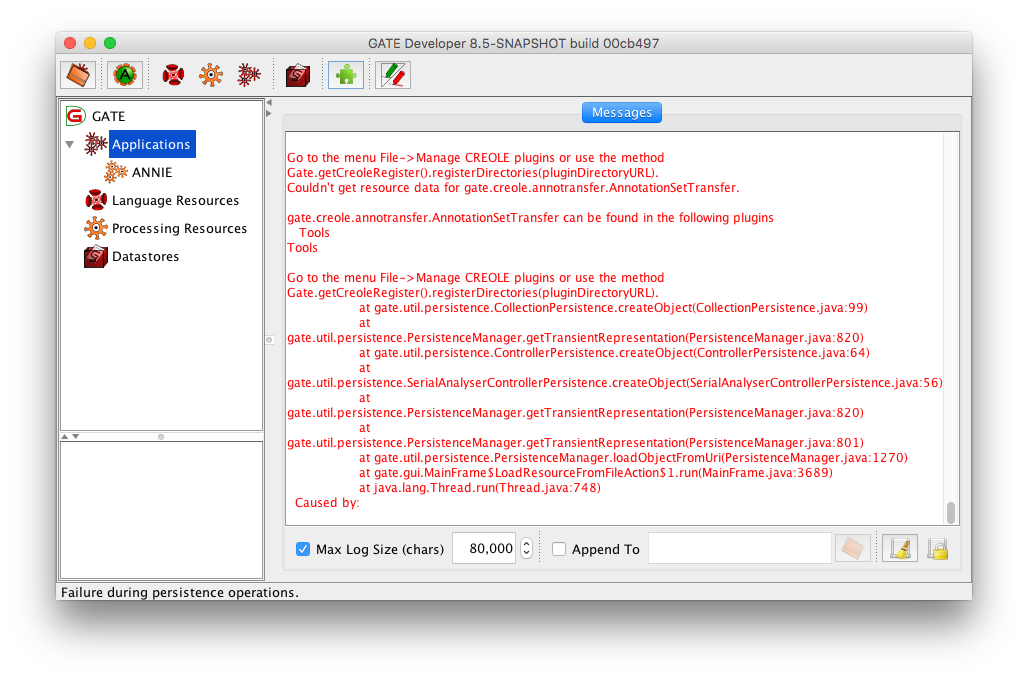

If you have an existing saved application from GATE version 8.4.1 or earlier it will be necessary to “upgrade” it to use the new core plugins. An upgrade tool is provided on the “Tools” menu of GATE Developer, and is described in section Section 3.9.5.

For developers

As part of this release, GATE development has moved from SourceForge to GitHub – bug reports, patches and feature requests should now use the GitHub issue tracker as described in section 12.1.

1.6 Further Reading [#]

Lots of documentation lives on the GATE web site, including:

For more details about Sheffield University’s work in human language processing see the NLP group pages or A Definition and Short History of Language Engineering ([Cunningham 99a]). For more details about Information Extraction see IE, a User Guide or the GATE IE pages.

A list of publications on GATE and projects that use it (some of which are available on-line from http://gate.ac.uk/gate/doc/papers.html):

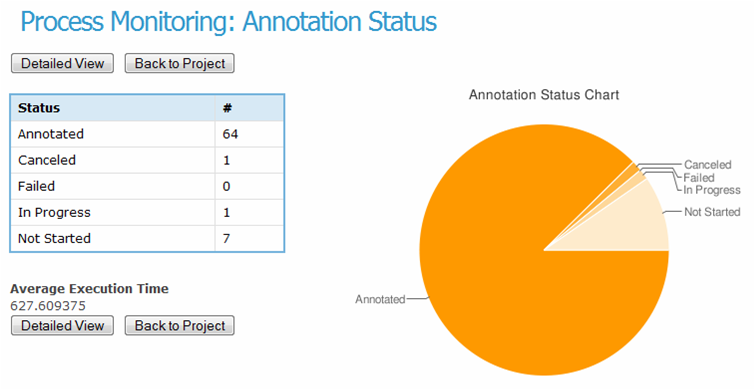

[Bontcheva et al. 10]

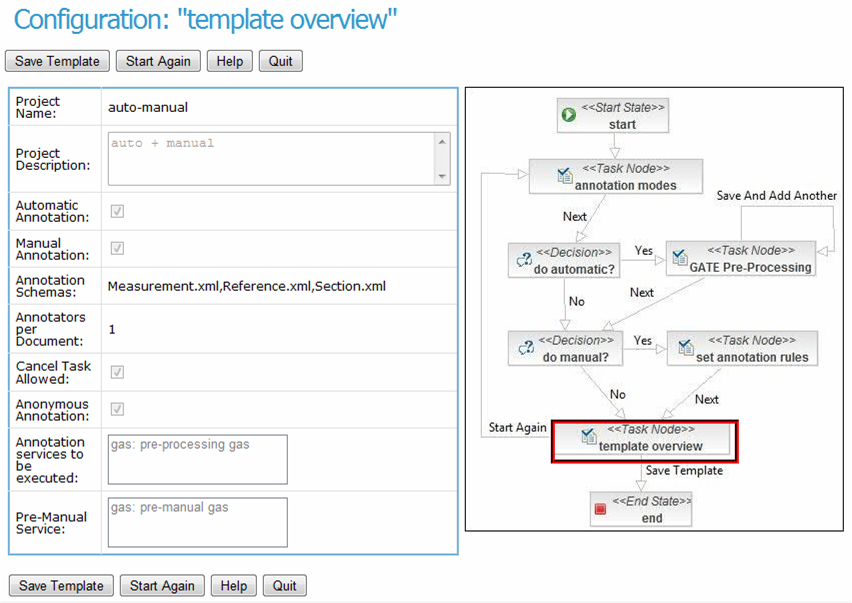

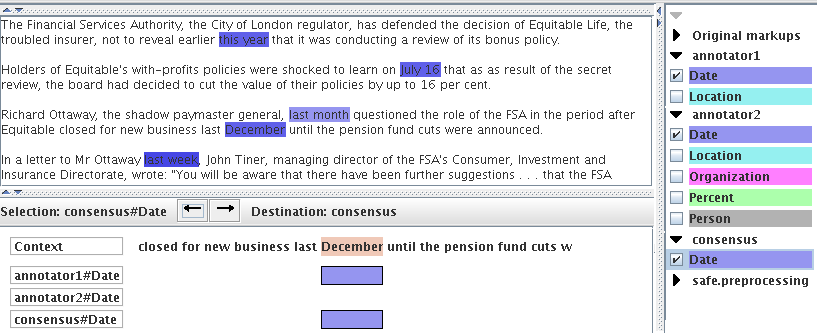

describes the Teamware web-based collaborative annotation environment, emphasising the different roles that users play in the corpus annotation process.
[Damljanovic 10]
presents the use of GATE in the development of controlled natural language interfaces. There is other related work by Damljanovic, Agatonovic, and Cunningham on using GATE to build natural language interfaces for quering ontologies.
[Aswani & Gaizauskas 10]
discusses the use of GATE to process South Asian languages (Hindi and Gujarati).


[Saggion & Funk 09]
focuses in detail on the use of GATE for mining opinions and facts for business intelligence gathering from web content.
[Aswani & Gaizauskas 09]

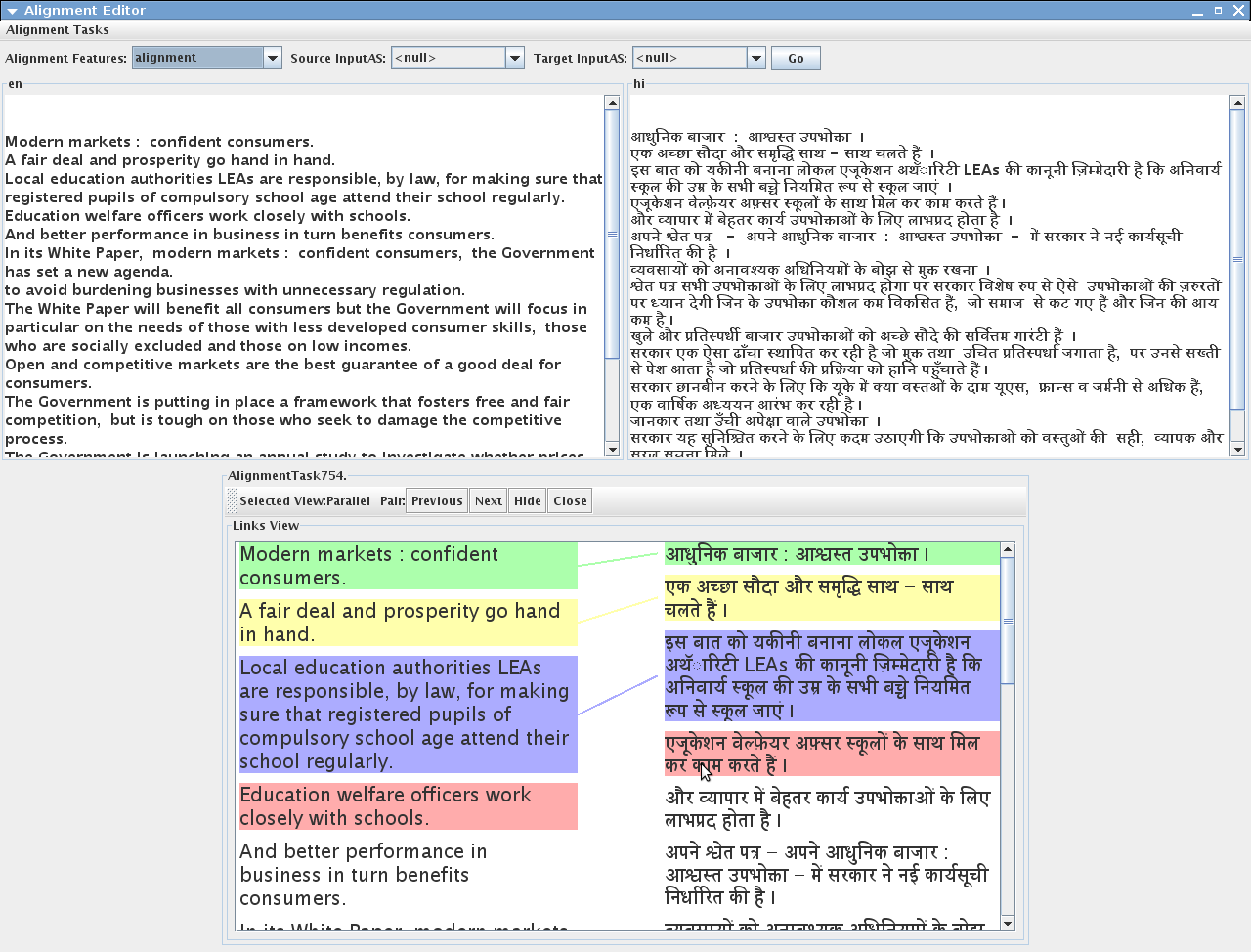

presents in more detail the text alignment component of GATE.
[Bontcheva et al. 09]
is the ‘Human Language Technologies’ chapter of ‘Semantic Knowledge Management’ (John Davies, Marko Grobelnik and Dunja MladeniÄĞ eds.)
[Damljanovic et al. 09]
discusses the use of semantic annotation for software engineering, as part of the TAO research project.
[Laclavik & Maynard 09]
reviews the current state of the art in email processing and communication research, focusing on the roles played by email in information management, and commercial and research efforts to integrate a semantic-based approach to email.
[Li et al. 09]
investigates two techniques for making SVMs more suitable for language learning tasks. Firstly, an SVM with uneven margins (SVMUM) is proposed to deal with the problem of imbalanced training data. Secondly, SVM active learning is employed in order to alleviate the difficulty in obtaining labelled training data. The algorithms are presented and evaluated on several Information Extraction (IE) tasks.


[Agatonovic et al. 08]
presents our approach to automatic patent enrichment, tested in large-scale, parallel experiments on USPTO and EPO documents.
[Damljanovic et al. 08]
presents Question-based Interface to Ontologies (QuestIO) - a tool for querying ontologies using unconstrained language-based queries.
[Damljanovic & Bontcheva 08]
presents a semantic-based prototype that is made for an open-source software engineering project with the goal of exploring methods for assisting open-source developers and software users to learn and maintain the system without major effort.
[Della Valle et al. 08]
presents ServiceFinder.
[Li & Cunningham 08]
describes our SVM-based system and several techniques we developed successfully to adapt SVM for the specific features of the F-term patent classification task.
[Li & Bontcheva 08]
reviews the recent developments in applying geometric and quantum mechanics methods for information retrieval and natural language processing.
[Maynard 08]
investigates the state of the art in automatic textual annotation tools, and examines the extent to which they are ready for use in the real world.
[Maynard et al. 08a]
discusses methods of measuring the performance of ontology-based information extraction systems, focusing particularly on the Balanced Distance Metric (BDM), a new metric we have proposed which aims to take into account the more flexible nature of ontologically-based applications.
[Maynard et al. 08b]
investigates NLP techniques for ontology population, using a combination of rule-based approaches and machine learning.
[Tablan et al. 08]
presents the QuestIO system âĂŞ a natural language interface for accessing structured information, that is domain independent and easy to use without training.


[Funk et al. 07a]
describes an ontologically based approach to multi-source, multilingual information extraction.
[Funk et al. 07b]
presents a controlled language for ontology editing and a software implementation, based partly on standard NLP tools, for processing that language and manipulating an ontology.
[Maynard et al. 07a]
proposes a methodology to capture (1) the evolution of metadata induced by changes to the ontologies, and (2) the evolution of the ontology induced by changes to the underlying metadata.
[Maynard et al. 07b]
describes the development of a system for content mining using domain ontologies, which enables the extraction of relevant information to be fed into models for analysis of financial and operational risk and other business intelligence applications such as company intelligence, by means of the XBRL standard.
[Saggion 07]
describes experiments for the cross-document coreference task in SemEval 2007. Our cross-document coreference system uses an in-house agglomerative clustering implementation to group documents referring to the same entity.
[Saggion et al. 07]
describes the application of ontology-based extraction and merging in the context of a practical e-business application for the EU MUSING Project where the goal is to gather international company intelligence and country/region information.
[Li et al. 07a]
introduces a hierarchical learning approach for IE, which uses the target ontology as an essential part of the extraction process, by taking into account the relations between concepts.
[Li et al. 07b]
proposes some new evaluation measures based on relations among classification labels, which can be seen as the label relation sensitive version of important measures such as averaged precision and F-measure, and presents the results of applying the new evaluation measures to all submitted runs for the NTCIR-6 F-term patent classification task.
[Li et al. 07c]
describes the algorithms and linguistic features used in our participating system for the opinion analysis pilot task at NTCIR-6.
[Li et al. 07d]
describes our SVM-based system and the techniques we used to adapt the approach for the specifics of the F-term patent classification subtask at NTCIR-6 Patent Retrieval Task.
[Li & Shawe-Taylor 07]
studies Japanese-English cross-language patent retrieval using Kernel Canonical Correlation Analysis (KCCA), a method of correlating linear relationships between two variables in kernel defined feature spaces.


[Aswani et al. 06]
(Proceedings of the 5th International Semantic Web Conference (ISWC2006)) In this paper the problem of disambiguating author instances in ontology is addressed. We describe a web-based approach that uses various features such as publication titles, abstract, initials and co-authorship information.
[Bontcheva et al. 06a]
‘Semantic Annotation and Human Language Technology’, contribution to ‘Semantic Web Technology: Trends and Research’ (Davies, Studer and Warren, eds.)
[Bontcheva et al. 06b]
‘Semantic Information Access’, contribution to ‘Semantic Web Technology: Trends and Research’ (Davies, Studer and Warren, eds.)
[Bontcheva & Sabou 06]
presents an ontology learning approach that 1) exploits a range of information sources associated with software projects and 2) relies on techniques that are portable across application domains.
[Davis et al. 06]
describes work in progress concerning the application of Controlled Language Information Extraction - CLIE to a Personal Semantic Wiki - Semper- Wiki, the goal being to permit users who have no specialist knowledge in ontology tools or languages to semi-automatically annotate their respective personal Wiki pages.
[Li & Shawe-Taylor 06]
studies a machine learning algorithm based on KCCA for cross-language information retrieval. The algorithm is applied to Japanese-English cross-language information retrieval.
[Maynard et al. 06]
discusses existing evaluation metrics, and proposes a new method for evaluating the ontology population task, which is general enough to be used in a variety of situation, yet more precise than many current metrics.
[Tablan et al. 06b]
describes an approach that allows users to create and edit ontologies simply by using a restricted version of the English language. The controlled language described is based on an open vocabulary and a restricted set of grammatical constructs.
[Tablan et al. 06a]
describes the creation of linguistic analysis and corpus search tools for Sumerian, as part of the development of the ETCSL.
[Wang et al. 06]
proposes an SVM based approach to hierarchical relation extraction, using features derived automatically from a number of GATE-based open-source language processing tools.


[Aswani et al. 05]
(Proceedings of Fifth International Conference on Recent Advances in Natural Language Processing (RANLP2005)) It is a full-featured annotation indexing and search engine, developed as a part of the GATE. It is powered with Apache Lucene technology and indexes a variety of documents supported by the GATE.
[Bontcheva 05]
presents the ONTOSUM system which uses Natural Language Generation (NLG) techniques to produce textual summaries from Semantic Web ontologies.
[Cunningham 05]
is an overview of the field of Information Extraction for the 2nd Edition of the Encyclopaedia of Language and Linguistics.
[Cunningham & Bontcheva 05]
is an overview of the field of Software Architecture for Language Engineering for the 2nd Edition of the Encyclopaedia of Language and Linguistics.
[Dowman et al. 05a]
(Euro Interactive Television Conference Paper) A system which can use material from the Internet to augment television news broadcasts.
[Dowman et al. 05b]
(World Wide Web Conference Paper) The Web is used to assist the annotation and indexing of broadcast news.
[Dowman et al. 05c]
(Second European Semantic Web Conference Paper) A system that semantically annotates television news broadcasts using news websites as a resource to aid in the annotation process.
[Li et al. 05c]
(Proceedings of Sheffield Machine Learning Workshop) describe an SVM based IE system which uses the SVM with uneven margins as learning component and the GATE as NLP processing module.
[Li et al. 05a]
(Proceedings of Ninth Conference on Computational Natural Language Learning (CoNLL-2005)) uses the uneven margins versions of two popular learning algorithms SVM and Perceptron for IE to deal with the imbalanced classification problems derived from IE.
[Li et al. 05b]
(Proceedings of Fourth SIGHAN Workshop on Chinese Language processing (Sighan-05)) a system for Chinese word segmentation based on Perceptron learning, a simple, fast and effective learning algorithm.
[Polajnar et al. 05]
(University of Sheffield-Research Memorandum CS-05-10) User-Friendly Ontology Authoring Using a Controlled Language.
[Saggion & Gaizauskas 05]
describes experiments on content selection for producing biographical summaries from multiple documents.
[Ursu et al. 05]
(Proceedings of the 2nd European Workshop on the Integration of Knowledge, Semantic and Digital Media Technologies (EWIMT 2005))Digital Media Preservation and Access through Semantically Enhanced Web-Annotation.
[Wang et al. 05]
(Proceedings of the 2005 IEEE/WIC/ACM International Conference on Web Intelligence (WI 2005)) Extracting a Domain Ontology from Linguistic Resource Based on Relatedness Measurements.


[Bontcheva 04]
(LREC 2004) describes lexical and ontological resources in GATE used for Natural Language Generation.
[Bontcheva et al. 04]
(JNLE) discusses developments in GATE in the early naughties.
[Cunningham & Scott 04a]
(JNLE) is the introduction to the above collection.
[Cunningham & Scott 04b]
(JNLE) is a collection of papers covering many important areas of Software Architecture for Language Engineering.
[Dimitrov et al. 04]
(Anaphora Processing) gives a lightweight method for named entity coreference resolution.
[Li et al. 04]
(Machine Learning Workshop 2004) describes an SVM based learning algorithm for IE using GATE.
[Maynard et al. 04a]
(LREC 2004) presents algorithms for the automatic induction of gazetteer lists from multi-language data.
[Maynard et al. 04b]
(ESWS 2004) discusses ontology-based IE in the hTechSight project.
[Maynard et al. 04c]
(AIMSA 2004) presents automatic creation and monitoring of semantic metadata in a dynamic knowledge portal.
[Saggion & Gaizauskas 04a]
describes an approach to mining definitions.
[Saggion & Gaizauskas 04b]
describes a sentence extraction system that produces two sorts of multi-document summaries; a general-purpose summary of a cluster of related documents and an entity-based summary of documents related to a particular person.
[Wood et al. 04]
(NLDB 2004) looks at ontology-based IE from parallel texts.


[Bontcheva et al. 03]
(NLPXML-2003) looks at GATE for the semantic web.
[Cunningham et al. 03]
(Corpus Linguistics 2003) describes GATE as a tool for collaborative corpus annotation.
[Kiryakov 03]
(Technical Report) discusses semantic web technology in the context of multimedia indexing and search.
[Manov et al. 03]
(HLT-NAACL 2003) describes experiments with geographic knowledge for IE.
[Maynard et al. 03a]
(EACL 2003) looks at the distinction between information and content extraction.
[Maynard et al. 03c]
(Recent Advances in Natural Language Processing 2003) looks at semantics and named-entity extraction.
[Maynard et al. 03e]
(ACL Workshop 2003) describes NE extraction without training data on a language you don’t speak (!).
[Saggion et al. 03a]
(EACL 2003) discusses robust, generic and query-based summarisation.
[Saggion et al. 03b]
(Data and Knowledge Engineering) discusses multimedia indexing and search from multisource multilingual data.
[Saggion et al. 03c]
(EACL 2003) discusses event co-reference in the MUMIS project.
[Tablan et al. 03]
(HLT-NAACL 2003) presents the OLLIE on-line learning for IE system.
[Wood et al. 03]
(Recent Advances in Natural Language Processing 2003) discusses using parallel texts to improve IE recall.


[Baker et al. 02]
(LREC 2002) report results from the EMILLE Indic languages corpus collection and processing project.
[Bontcheva et al. 02a]
(ACl 2002 Workshop) describes how GATE can be used as an environment for teaching NLP, with examples of and ideas for future student projects developed within GATE.
[Bontcheva et al. 02b]
(NLIS 2002) discusses how GATE can be used to create HLT modules for use in information systems.
[Bontcheva et al. 02c], [Dimitrov 02a] and [Dimitrov 02b]
(TALN 2002, DAARC 2002, MSc thesis) describe the shallow named entity coreference modules in GATE: the orthomatcher which resolves pronominal coreference, and the pronoun resolution module.
[Cunningham 02]
(Computers and the Humanities) describes the philosophy and motivation behind the system, describes GATE version 1 and how well it lived up to its design brief.
[Cunningham et al. 02]
(ACL 2002) describes the GATE framework and graphical development environment as a tool for robust NLP applications.
[Dimitrov 02a, Dimitrov et al. 02]
(DAARC 2002, MSc thesis) discuss lightweight coreference methods.
[Lal 02]
(Master Thesis) looks at text summarisation using GATE.
[Lal & Ruger 02]
(ACL 2002) looks at text summarisation using GATE.
[Maynard et al. 02a]
(ACL 2002 Summarisation Workshop) describes using GATE to build a portable IE-based summarisation system in the domain of health and safety.
[Maynard et al. 02c]
(AIMSA 2002) describes the adaptation of the core ANNIE modules within GATE to the ACE (Automatic Content Extraction) tasks.
[Maynard et al. 02d]
(Nordic Language Technology) describes various Named Entity recognition projects developed at Sheffield using GATE.
[Maynard et al. 02e]
(JNLE) describes robustness and predictability in LE systems, and presents GATE as an example of a system which contributes to robustness and to low overhead systems development.
[Pastra et al. 02]
(LREC 2002) discusses the feasibility of grammar reuse in applications using ANNIE modules.
[Saggion et al. 02b] and [Saggion et al. 02a]
(LREC 2002, SPLPT 2002) describes how ANNIE modules have been adapted to extract information for indexing multimedia material.
[Tablan et al. 02]
(LREC 2002) describes GATE’s enhanced Unicode support.

Older than 2002

[Maynard et al. 01]
(RANLP 2001) discusses a project using ANNIE for named-entity recognition across wide varieties of text type and genre.
[Bontcheva et al. 00] and [Brugman et al. 99]
(COLING 2000, technical report) describe a prototype of GATE version 2 that integrated with the EUDICO multimedia markup tool from the Max Planck Institute.
[Cunningham 00]
(PhD thesis) defines the field of Software Architecture for Language Engineering, reviews previous work in the area, presents a requirements analysis for such systems (which was used as the basis for designing GATE versions 2 and 3), and evaluates the strengths and weaknesses of GATE version 1.
[Cunningham et al. 00a], [Cunningham et al. 98a] and [Peters et al. 98]
(OntoLex 2000, LREC 1998) presents GATE’s model of Language Resources, their access and distribution.
[Cunningham et al. 00b]
(LREC 2000) taxonomises Language Engineering components and discusses the requirements analysis for GATE version 2.
[Cunningham et al. 00c] and [Cunningham et al. 99]
(COLING 2000, AISB 1999) summarise experiences with GATE version 1.
[Cunningham et al. 00d] and [Cunningham 99b]
(technical reports) document early versions of JAPE (superseded by the present document).
[Gambäck & Olsson 00]
(LREC 2000) discusses experiences in the Svensk project, which used GATE version 1 to develop a reusable toolbox of Swedish language processing components.
[Maynard et al. 00]
(technical report) surveys users of GATE up to mid-2000.
[McEnery et al. 00]
(Vivek) presents the EMILLE project in the context of which GATE’s Unicode support for Indic languages has been developed.
[Cunningham 99a]
(JNLE) reviewed and synthesised definitions of Language Engineering.
[Stevenson et al. 98] and [Cunningham et al. 98b]
(ECAI 1998, NeMLaP 1998) report work on implementing a word sense tagger in GATE version 1.
[Cunningham et al. 97b]
(ANLP 1997) presents motivation for GATE and GATE-like infrastructural systems for Language Engineering.
[Cunningham et al. 96a]
(manual) was the guide to developing CREOLE components for GATE version 1.
[Cunningham et al. 96b]
(TIPSTER) discusses a selection of projects in Sheffield using GATE version 1 and the TIPSTER architecture it implemented.
[Cunningham et al. 96c, Cunningham et al. 96d, Cunningham et al. 95]
(COLING 1996, AISB Workshop 1996, technical report) report early work on GATE version 1.
[Gaizauskas et al. 96a]
(manual) was the user guide for GATE version 1.
[Gaizauskas et al. 96b, Cunningham et al. 97a, Cunningham et al. 96e]
(ICTAI 1996, TIPSTER 1997, NeMLaP 1996) report work on GATE version 1.
[Humphreys et al. 96]
(manual) describes the language processing components distributed with GATE version 1.
[Cunningham 94, Cunningham et al. 94]
(NeMLaP 1994, technical report) argue that software engineering issues such as reuse, and framework construction, are important for language processing R&D.

Chapter 2
Installing and Running GATE [#]

2.1 Downloading GATE [#]

To download GATE point your web browser at http://gate.ac.uk/download/.

2.2 Installing and Running GATE [#]

GATE will run anywhere that supports Java 8 or later, including Linux, Mac OS X and Windows platforms. We don’t run tests on other platforms, but have had reports of successful installs elsewhere.

2.2.1 The Easy Way [#]

The easy way to install is to use the installer (created using the excellent IzPack). Download the installer (.exe for Windows, .jar for other platforms) and follow the instructions it gives you. Once the installation is complete, you can start GATE Developer using gate.exe (Windows) or GATE.app (Mac) in the top-level installation directory, on Linux and other platforms use gate.sh in the bin directory (see section 2.2.4).

2.2.2 The Hard Way (1) [#]

2.2.3 The Hard Way (2): Git [#]

The GATE code is maintained in a set of repositories on GitHub. The main repository for GATE Developer and Embedded is gate-core, and each plugin has its own repository (typically with a name beginning gateplugin-).

All the modules (gate-core and the plugins) are built using Apache Maven version 3.5.2 or later. Clone the appropriate repository, checkout the relevant branch (“master” is the latest snapshot version), and build the code using mvn install

See section 2.6 for more details.

2.2.4 Running GATE Developer on Unix/Linux [#]

The script gate.sh in the directory bin of your installation (or distro/bin if you are building from source) can be used to start GATE Developer. You can run this script by entering its full path in a terminal or by adding the bin directory to your binary path. In addition you can also add a symbolic link to this script in any directory that already is in your binary path.

If gate.sh is invoked without parameters, GATE Developer will use the files ~/.gate.xml and ~/.gate.session to store session and configuration data. Alternately you can run gate.sh with the following parameters:

show usage information
create or use the files .gate.session and .gate.xml in the current directory as the session and configuration files. If option -dc DIR occurs before this option, the file .gate.session is created from DIR/default.session if it does not already exist and the file .gate.xml is created from DIR/default.xml if it does not already exist.
-ln NAME
create or use NAME.session and NAME.xml in the current directory as the session and configuration files. If option -dc DIR occurs before this option, the file NAME.session is created from DIR/default.session if it does not already exist and the file DIR.xml is created from DIR/default.xml if it does not already exist.
if the current directory contains a file named log4j.properties then use it instead of the default (GATE_HOME/bin/log4j.properties) to configure logging. Alternately, you can specify any log4j configuration file by setting the log4j.configuration property explicitly (see below).
set the resources home directory to the LOCATION provided. If a resources home location is provided, the URLs in a saved application are saved relative to this location instead of relative to the application state file (see section 3.9.3). This is equivalent to setting the property gate.user.resourceshome to this location.
-d URL
loads the CREOLE plugin at the given URL during the start-up process.
uses the specified file as the site configuration.
-dc DIR
copy default.xml and/or default.session from the directory DIR when creating a new config or session file. This option works only together with either the -ln, -ll or -tmp option and must occur before -ln, -ll or -tmp. An existing config or session file is used, but if it does not exist, the file from the given directory is copied to create the file instead of using an empty/default file.
creates temporary configuration and session files in the current directory, optionally copying default.xml and default.session from the directory specified with a -dc DIR option that occurs before it. After GATE exits, those session and config files are removed.
all other parameters
are passed on to the java command. This can be used to e.g. set properties using the java option -D. For example to set the maximum amount of heap memory to be used when running GATE to 6000M, you can add -Xmx6000m as a parameter. In order to change the default encoding used by GATE to UTF-8 add -Dfile.encoding=utf-8 as a parameter. To specify a log4j configuration file add something like

Running GATE Developer with either the -ld or the -ln option from different directories is useful to keep several projects separate and can be used to run multiple instances of GATE Developer (or even different versions of GATE Developer) in succession or even simultanously without the configuration files getting mixed up between them.

2.3 Using System Properties with GATE [#]

During initialisation, GATE reads several Java system properties in order to decide where to find its configuration files.

Here is a list of the properties used, their default values and their meanings:

points to the location of the configuration file containing the site-wide options. If not set no site config will be used.
points to the file containing the user’s options. If not specified, or if the specified file does not exist at startup time, the default value of gate.xml (.gate.xml on Unix platforms) in the user’s home directory is used.
points to the file containing the user’s saved session. If not specified, the default value of gate.session (.gate.session on Unix) in the user’s home directory is used. When starting up GATE Developer, the session is reloaded from this file if it exists, and when exiting GATE Developer the session is saved to this file (unless the user has disabled ‘save session on exit’ in the configuration dialog). The session is not used when using GATE Embedded.
sets the default directory to be shown in the file chooser of GATE Developer to the specified directory instead of the user’s operating-system specific default directory.
is a URL pointing to the location of GATE’s built-in CREOLE directory. This is the location of the creole.xml file that defines the fundamental GATE resource types, such as documents, document format handlers, controllers and the basic visual resources that make up GATE. The default points to a location inside gate.jar and should not generally need to be overridden.

When using GATE Embedded, you can set the values for these properties before you call Gate.init(). Alternatively, you can set the values programmatically using the static methods setUserConfigFile(), etc. before calling Gate.init(). Note that from version 8.5 onwards, the user config file is ignored by default unless you also call runInSandbox(false) before init. See the Javadoc documentation for details.

To set these properties when running GATE developer see the next section.

2.4 Changing GATE’s launch configuration [#]

JVM options for GATE Developer are supplied in the gate.l4j.ini file on all platforms. The gate.l4j.ini file supplied by default with GATE simply sets two standard JVM memory options:


-Xmx specifies the maximum heap size in megabytes (m) or gigabytes (g), and -Xms specifies the initial size.

Note that the format consists of one option per line. All the properties listed in Section 2.3 can be configured here by prefixing them with -D, e.g., -Dgate.user.config=path/to/other-gate.xml.

Proxy configuration (see Section 23.16.2) can now be set in this file by adding these lines and editing them as needed for your configuration.


2.5 Configuring GATE [#]

When GATE Developer is started, or when Gate.init() is called from GATE Embedded (if you have disabled the default “sandbox” mode), GATE loads various sorts of configuration data stored as XML in a file generally called something like gate.xml or .gate.xml in your home directory. This data holds information such as:

Configuration data can be set from the GATE Developer GUI via the ‘Options’ menu then ‘Configuration’1. The user can change the appearance of the GUI in the ‘Appearance’ tab, which includes the options of font and the ‘look and feel’. The ‘Advanced’ tab enables the user to include annotation features when saving the document and preserving its format, to save the selected Options automatically on exit, and to save the session automatically on exit. These options are all stored in the user’s .gate.xml file.

2.6 Building GATE [#]

Note that you don’t need to build GATE unless you’re doing development on the system itself.


To build gate-core, cd to where you cloned gate-core and:

  1. Type:
    mvn install
  2. [optional] To make the Javadoc documentation:
    mvn site

In order to be able to run the GATE Developer you just built, you will also need to cd into the distro folder and run mvn compile in there, in order to create the classpath file that the GATE Developer launcher uses to find the JARs.

To build plugins cd into the plugin you just cloned and run mvn install. This will build the plugin and place it in your local Maven cache, from where GATE Developer will be able to resolve it at runtime.

Note if you are building a version of a plugin that depends on a SNAPSHOT version of gate-core then you will need to add some configuration to your Maven settings.xml file, as described in the gate-core README file.

2.6.1 Using GATE with Maven/Ivy [#]

This section is based on contributions by Marin Nozhchev (Ontotext) and Benson Margulies (Basis Technology Corp).

Stable releases of GATE (since 5.2.1) are available in the standard central Maven repository, with group ID “uk.ac.gate” and artifact ID “gate-core”. To use GATE in a Maven-based project you can simply add a dependency:


Similarly, with a project that uses Ivy for dependency management:

<dependency org="uk.ac.gate" name="gate-core" rev="8.5"/>

You do not need to do anything to allow GATE to access its plugins, it will fetch them at runtime from the internet when they are loaded.

Nightly snapshot builds of gate-core are available from our own Maven repository at http://repo.gate.ac.uk/content/groups/public.

2.7 Uninstalling GATE [#]

If you have used the installer, run:

java -jar uninstaller.jar

or just delete the whole of the installation directory (the one containing bin, lib, Uninstaller, etc.). The installer doesn’t install anything outside this directory, but for completeness you might also want to delete the settings files GATE creates in your home directory (.gate.xml and .gate.session).

2.8 Troubleshooting [#]

See the FAQ on the GATE Wiki for frequent questions about running and using GATE.

Chapter 3
Using GATE Developer [#]

‘The law of evolution is that the strongest survives!’

‘Yes; and the strongest, in the existence of any social species, are those who are most social. In human terms, most ethical. …There is no strength to be gained from hurting one another. Only weakness.’

The Dispossessed [p.183], Ursula K. le Guin, 1974.

This chapter introduces GATE Developer, which is the GATE graphical user interface. It is analogous to systems like Mathematica for mathematicians, or Eclipse for Java programmers, providing a convenient graphical environment for research and development of language processing software. As well as being a powerful research tool in its own right, it is also very useful in conjunction with GATE Embedded (the GATE API by which GATE functionality can be included in your own applications); for example, GATE Developer can be used to create applications that can then be embedded via the API. This chapter describes how to complete common tasks using GATE Developer. It is intended to provide a good entry point to GATE functionality, and so explanations are given assuming only basic knowledge of GATE. However, probably the best way to learn how to use GATE Developer is to use this chapter in conjunction with the demonstrations and tutorials movies. There are specific links to them throughout the chapter. There is also a complete new set of video tutorials here.

The basic business of GATE is annotating documents, and all the functionality we will introduce relates to that. Core concepts are;

What is considered to be the end result of the process varies depending on the task, but for the purposes of this chapter, output takes the form of the annotated document/corpus. Researchers might be more interested in figures demonstrating how successfully their application compares to a ‘gold standard’ annotation set; Chapter 10 in Part II will cover ways of comparing annotation sets to each other and obtaining measures such as F1. Implementers might be more interested in using the annotations programmatically; Chapter 7, also in Part II, talks about working with annotations from GATE Embedded. For the purposes of this chapter, however, we will focus only on creating the annotated documents themselves, and creating GATE applications for future use.

GATE includes a complete information extraction system that you are free to use, called ANNIE (a Nearly-New Information Extraction System). Many users find this is a good starting point for their own application, and so we will cover it in this chapter. Chapter 6 talks in a lot more detail about the inner workings of ANNIE, but we aim to get you started using ANNIE from inside of GATE Developer in this chapter.

We start the chapter with an exploration of the GATE Developer GUI, in Section 3.1. We describe how to create documents (Section 3.2) and corpora (Section 3.3). We talk about viewing and manually creating annotations (Section 3.4).

We then talk about loading the plugins that contain the processing resources you will use to construct your application, in Section 3.5. We then talk about instantiating processing resources (Section 3.7). Section 3.8 covers applications, including using ANNIE (Section 3.8.3). Saving applications and language resources (documents and corpora) is covered in Section 3.9. We conclude with a few assorted topics that might be useful to the GATE Developer user, in Section 3.11.

3.1 The GATE Developer Main Window [#]

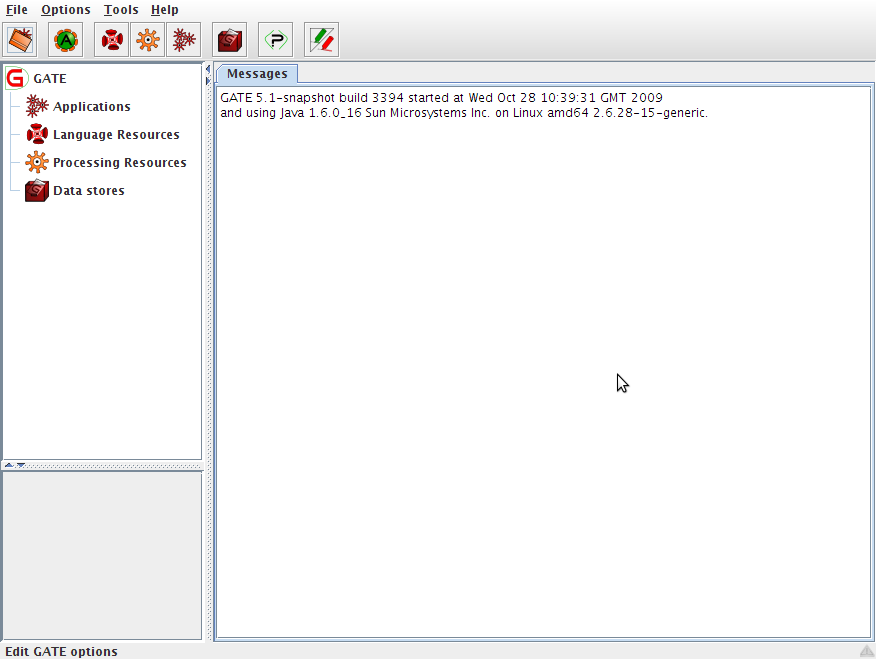

Figure 3.1: Main Window of GATE Developer

Figure 3.1 shows the main window of GATE Developer, as you will see it when you first run it. There are five main areas:

  1. at the top, the menus bar and tools bar with menus ‘File’, ‘Options’, ‘Tools’, ‘Help’ and icons for the most frequently used actions;
  2. on the left side, a tree starting from ‘GATE’ and containing ‘Applications’, ‘Language Resources’ etc. – this is the resources tree;
  3. in the bottom left corner, a rectangle, which is the small resource viewer;
  4. in the center, containing tabs with ‘Messages’ or the name of a resource from the resources tree, the main resource viewer;
  5. at the bottom, the messages bar.

The menu and the messages bar do the usual things. Longer messages are displayed in the messages tab in the main resource viewer area.

The resource tree and resource viewer areas work together to allow the system to display diverse resources in various ways. The many resources integrated with GATE can have either a small view, a large view, or both.

At any time, the main viewer can also be used to display other information, such as messages, by clicking on the appropriate tab at the top of the main window. If an error occurs in processing, the messages tab will flash red, and an additional popup error message may also occur.

In the options dialogue from the Options menu you can choose if you want to link the selection in the resources tree and the selected main view.

3.2 Loading and Viewing Documents [#]

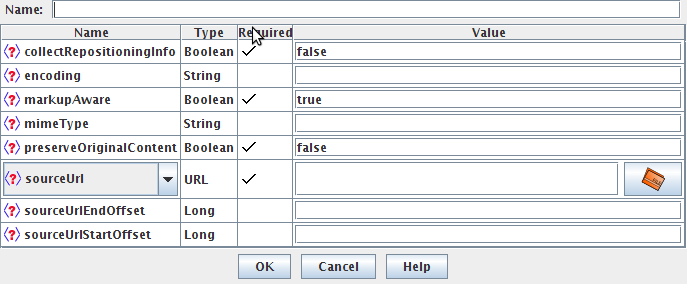

Figure 3.2: Making a New Document

If you right-click on ‘Language Resources’ in the resources pane, select “New’ then ‘GATE Document’, the window ‘Parameters for the new GATE Document’ will appear as shown in figure 3.2. Here, you can specify the GATE document to be created. Required parameters are indicated with a tick. The name of the document will be created for you if you do not specify it. Enter the URL of your document or use the file browser to indicate the file you wish to use for your document source. For example, you might use ‘http://gate.ac.uk’, or browse to a text or XML file you have on disk. Click on ‘OK’ and a GATE document will be created from the source you specified.

See also the movie for creating documents.


Figure 3.3: The Document Editor

The document editor is contained in the central tabbed pane in GATE Developer. Double-click on your document in the resources pane to view the document editor.

The document editor consists of a top panel with buttons and icons that control the display of different views and the search box. Initially, you will see just the text of your document, as shown in figure 3.3. Click on ‘Annotation Sets’ and ‘Annotations List’ to view the annotation sets to the right and the annotations list at the bottom.

You will see a view similar to figure 3.4. In place of the annotations list, you can also choose to see the annotations stack. In place of the annotation sets, you can also choose to view the co-reference editor. More information about this functionality is given in Section 3.4.

Several options can be set from the small triangle icon at the top right corner.

With ‘Save Current Layout’ you store the way the different views are shown and the annotation types highlighted in the document. Then if you set ‘Restore Layout Automatically’ you will get the same views and annotation types each time you open a document. The layout is saved to the user preferences file, gate.xml. It means that you can give this file to a new user so s/he will have a preconfigured document editor.

Another setting make the document editor ‘Read-only’. If enabled, you won’t be able to edit the text but you will still be able to edit annotations. It is useful to avoid to involuntarily modify the original text.

The option ‘Right To Left Orientation’ is useful for changing orientation of the text for the languages such as Arabic and Urdu. Selecting this option changes orientation of the text of the currently visible document.

Finally you can choose between ‘Insert Append’ and ‘Insert Prepend’. That setting is only relevant when you’re inserting text at the very border of an annotation.

If you place the cursor at the start of an annotation, in one case the newly entered text will become part of the annotation, in the other case it will stay outside. If you place the cursor at the end of an annotation, the opposite will happen.

Let use this sentence: ‘This is an [annotation].’ with the square brackets [] denoting the boundaries of the annotation. If we insert a ‘x’ just before the ‘a’ or just after the ‘n’ of ‘annotation’, here’s what we get:




Figure 3.4: The Document Editor with Annotation Sets and Annotations List

Text in a loaded document can be edited in the document viewer. The usual platform specific cut, copy and paste keyboard shortcuts should also work, depending on your operating system (e.g. CTRL-C, CTRL-V for Windows). The last icon, a magnifying glass, at the top of the document editor is for searching in the document. To prevent the new annotation windows popping up when a piece of text is selected, hold down the CTRL key. Alternatively, you can hide the annotation sets view by clicking on its button at the top of the document view; this will also cause the highlighted portions of the text to become un-highlighted.

See also Section 20.2.3 for the compound document editor.

3.3 Creating and Viewing Corpora [#]

You can create a new corpus in a similar manner to creating a new document; simply right-click on ‘Language Resources’ in the resources pane, select ‘New’ then ‘GATE corpus’. A brief dialogue box will appear in which you can optionally give a name for your corpus (if you leave this blank, a corpus name will be created for you) and optionally add documents to the corpus from those already loaded into GATE.

There are three ways of adding documents to a corpus:

  1. When creating the corpus, clicking on the icon next to the “documentsList” input field brings up a popup window with a list of the documents already loaded into GATE Developer. This enables the user to add any documents to the corpus.
  2. Alternatively, the corpus can be loaded first, and documents added later by double clicking on the corpus and using the + and - icons to add or remove documents to the corpus. Note that the documents must have been loaded into GATE Developer before they can be added to the corpus.
  3. Once loaded, the corpus can be populated by right clicking on the corpus and selecting ‘Populate’. With this method, documents do not have to have been previously loaded into GATE Developer, as they will be loaded during the population process. If you right-click on your corpus in the resources pane, you will see that you have the option to ‘Populate’ the corpus. If you select this option, you will see a dialogue box in which you can specify a directory in which GATE will search for documents. You can specify the extensions allowable; for example, XML or TXT. This will restrict the corpus population to only those documents with the extensions you wish to load. You can choose whether to recurse through the directories contained within the target directory or restrict the population to those documents contained in the top level directory. Click on ‘OK’ to populate your corpus. This option provides a quick way to create a GATE Corpus from a directory of documents.

Additionally, right-clicking on a loaded document in the tree and selecting the ‘New corpus with this document’ option creates a new transient corpus named Corpus for document name containing just this document.

See also the movie for creating and populating corpora.


Figure 3.5: Corpus Editor

Double click on your corpus in the resources pane to see the corpus editor, shown in figure 3.5. You will see a list of the documents contained within the corpus.

In the top left of the corpus editor, plus and minus buttons allow you to add documents to the corpus from those already loaded into GATE and remove documents from the corpus (note that removing a document from a corpus does not remove it from GATE).

Up and down arrows at the top of the view allow you to reorder the documents in the corpus. The rightmost button in the view opens the currently selected document in a document editor.

At the bottom, you will see that tabs entitled ‘Initialisation Parameters’ and ‘Corpus Quality Assurance’ are also available in addition to the corpus editor tab you are currently looking at. Clicking on the ‘Initialisation Parameters’ tab allows you to view the initialisation parameters for the corpus. The ‘Corpus Quality Assurance’ tab allows you to calculate agreement measures between the annotations in your corpus. Agreement measures are discussed in depth in Chapter 10. The use of corpus quality assurance is discussed in Section 10.3.

3.4 Working with Annotations [#]

In this section, we will talk in more detail about viewing annotations, as well as creating and editing them manually. As discussed in at the start of the chapter, the main purpose of GATE is annotating documents. Whilst applications can be used to annotate the documents entirely automatically, annotation can also be done manually, e.g. by the user, or semi-automatically, by running an application over the corpus and then correcting/adding new annotations manually. Section 3.4.5 focuses on manual annotation. In Section 3.7 we talk about running processing resources on our documents. We begin by outlining the functionality around viewing annotations, organised by the GUI area to which the functionality pertains.

3.4.1 The Annotation Sets View [#]

To view the annotation sets, click on the ‘Annotation Sets’ button at the top of the document editor, or use the F3 key (see Section 3.10 for more keyboard shortcuts). This will bring up the annotation sets viewer, which displays the annotation sets available and their corresponding annotation types.

The annotation sets view is displayed on the left part of the document editor. It’s a tree-like view with a root for each annotation set. The first annotation set in the list is always a nameless set. This is the default annotation set. You can see in figure 3.4 that there is a drop-down arrow with no name beside it. Other annotation sets on the document shown in figure 3.4 are ‘Key’ and ‘Original markups’. Because the document is an XML document, the original XML markup is retained in the form of an annotation set. This annotation set is expanded, and you can see that there are annotations for ‘TEXT’, ‘body’, ‘font’, ‘html’, ‘p’, ‘table’, ‘td’ and ‘tr’.

To display all the annotations of one type, tick its checkbox or use the space key. The text segments corresponding to these annotations will be highlighted in the main text window. To delete an annotation type, use the delete key. To change the color, use the enter key. There is a context menu for all these actions that you can display by right-clicking on one annotation type, a selection or an annotation set.

If you keep shift key pressed when you open the annotation sets view, GATE Developer will try to select any annotations that were selected in the previous document viewed (if any); otherwise no annotation will be selected.

Having selected an annotation type in the annotation sets view, hovering over an annotation in the main resource viewer or right-clicking on it will bring up a popup box containing a list of the annotations associated with it, from which one can select an annotation to view in the annotation editor, or if there is only one, the annotation editor for that annotation. Figure 3.6 shows the annotation editor.

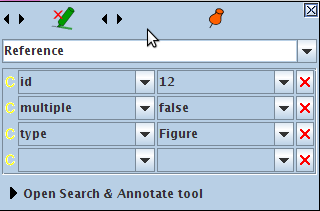

Figure 3.6: The Annotation Editor

3.4.2 The Annotations List View [#]

To view the list of annotations and their features, click on the ‘Annotations list’ button at the top of the main window or use F4 key. The annotation list view will appear below the main text. It will only contain the annotations selected from the annotation sets view. These lists can be sorted in ascending and descending order for any column, by clicking on the corresponding column heading. Moreover you can hide a column by using the context menu by right-clicking on the column headings. Selecting rows in the table will blink the respective annotations in the document. Right-click on a row or selection in this view to delete or edit an annotation. Delete key is a shortcut to delete selected annotations.

3.4.3 The Annotations Stack View [#]


Figure 3.7: Annotations stack view centred on the document caret.

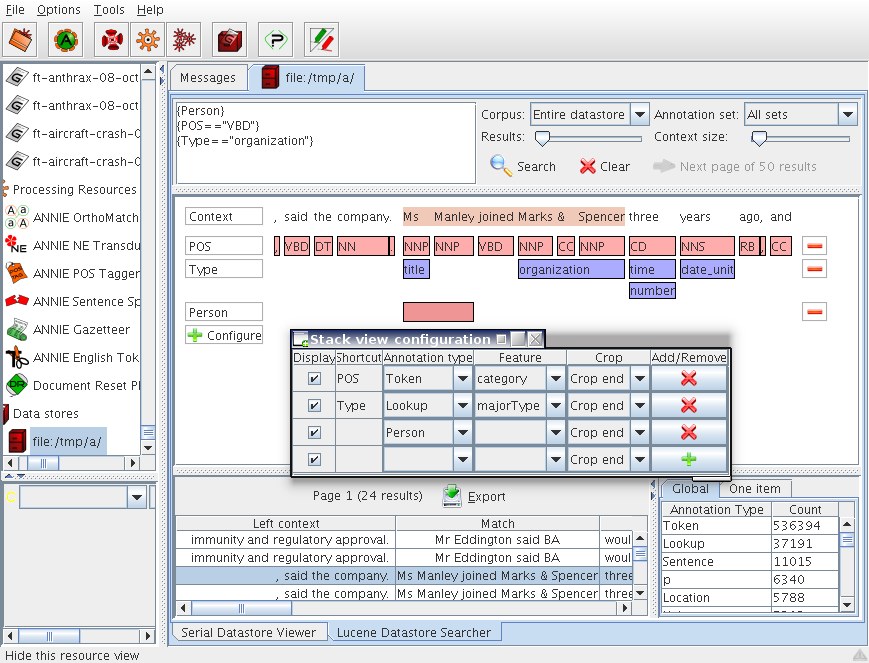

This view is similar to the ANNIC view described in section 9.2. It displays annotations at the document caret position with some context before and after. The annotations are stacked from top to bottom, which gives a clear view when they are overlapping.

As the view is centred on the document caret, you can use the conventional key to move it and update the view: notably the keys left and right to skip one letter; control + left/right to skip one word; up and down to go one line up or down; and use the document scrollbar then click in the document to move further.

There are two buttons at the top of the view that centre the view on the closest previous/next annotation boundary among all displayed. This is useful when you want to skip a region without annotation or when you want to reach the beginning or end of a very long annotation.

The annotation types displayed correspond to those selected in the annotation sets view. You can display feature values for an annotation rectangle by hovering the mouse on it or select only one feature to display by double-clicking on the annotation type in the first column.

Right-click on an annotation in the annotations stack view to edit it. Control-Shift-click to delete it. Double-click to copy it to another annotation set. Control-click on a feature value that contains an URL to display it in your browser.

All of these mouse shortcuts make it easier to create a gold standard annotation set.

3.4.4 The Co-reference Editor [#]


Figure 3.8: Co-reference editor inside a document editor. The popup window in the document under the word ‘EPSRC’ is used to add highlighted annotations to a co-reference chain. Here the annotation type ‘Organization’ of the annotation set ‘Default’ is highlighted and also the co-references ‘EC’ and ‘GATE’.

The co-reference editor allows co-reference chains (see Section 6.9) to be displayed and edited in GATE Developer. To display the co-reference editor, first open a document in GATE Developer, and then click on the Co-reference Editor button in the document viewer.

The combo box at the top of the co-reference editor allows you to choose which annotation set to display co-references for. If an annotation set contains no co-reference data, then the tree below the combo box will just show ‘Coreference Data’ and the name of the annotation set. However, when co-reference data does exist, a list of all the co-reference chains that are based on annotations in the currently selected set is displayed. The name of each co-reference chain in this list is the same as the text of whichever element in the chain is the longest. It is possible to highlight all the member annotations of any chain by selecting it in the list.

When a co-reference chain is selected, if the mouse is placed over one of its member annotations, then a pop-up box appears, giving the user the option of deleting the item from the chain. If the only item in a chain is deleted, then the chain itself will cease to exist, and it will be removed from the list of chains. If the name of the chain was derived from the item that was deleted, then the chain will be given a new name based on the next longest item in the chain.

A combo box near the top of the co-reference editor allows the user to select an annotation type from the current set. When the Show button is selected all the annotations of the selected type will be highlighted. Now when the mouse pointer is placed over one of those annotations, a pop-up box will appear giving the user the option of adding the annotation to a co-reference chain. The annotation can be added to an existing chain by typing the name of the chain (as shown in the list on the right) in the pop-up box. Alternatively, if the user presses the down cursor key, a list of all the existing annotations appears, together with the option [New Chain]. Selecting the [New Chain] option will cause a new chain to be created containing the selected annotation as its only element.

Each annotation can only be added to a single chain, but annotations of different types can be added to the same chain, and the same text can appear in more than one chain if it is referenced by two or more annotations.

The movie for inspecting results is also useful for learning about viewing annotations.

3.4.5 Creating and Editing Annotations [#]

To create annotations manually, select the text you want to annotate and hover the mouse on the selection or use control+E keys. A popup will appear, allowing you to create an annotation, as shown in figure 3.9

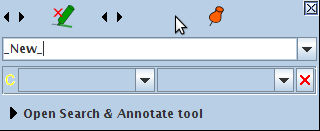

Figure 3.9: Creating a New Annotation

The type of the annotation, by default, will be the same as the last annotation you created, unless there is none, in which case it will be ‘_New_’. You can enter any annotation type name you wish in the text box, unless you are using schema-driven annotation (see Section 3.4.6). You can add or change features and their values in the table below.

To delete an annotation, click on the red X icon at the top of the popup window. To grow/shrink the span of the annotation at its start use the two arrow icons on the left or right and left keys. Use the two arrow icons next on the right to change the annotation end or alt+right and alt+left keys. Add shift and control+shift keys to make the span increment bigger. The red X icon is for removing the annotation.

The pin icon is to pin the window so that it remains where it is. If you drag and drop the window, this automatically pins it too. Pinning it means that even if you select another annotation (by hovering over it in the main resource viewer) it will still stay in the same position.

The popup menu only contains annotation types present in the Annotation Schema and those already listed in the relevant Annotation Set. To create a new Annotation Schema, see Section 3.4.6. The popup menu can be edited to add a new annotation type, however.

The new annotation created will automatically be placed in the annotation set that has been selected (highlighted) by the user. To create a new annotation set, type the name of the new set to be created in the box below the list of annotation sets, and click on ‘New’.

Figure 3.10 demonstrates adding a ‘Organization’ annotation for the string ‘EPSRC’ (highlighted in green) to the default annotation set (blank name in the annotation set view on the right) and a feature name ‘type’ with a value about to be added.


Figure 3.10: Adding an Organization annotation to the Default Annotation Set

To add a second annotation to a selected piece of text, or to add an overlapping annotation to an existing one, press the CTRL key to avoid the existing annotation popup appearing, and then select the text and create the new annotation. Again by default the last annotation type to have been used will be displayed; change this to the new annotation type. When a piece of text has more than one annotation associated with it, on mouseover all the annotations will be displayed. Selecting one of them will bring up the relevant annotation popup.

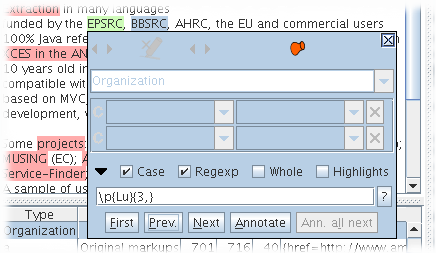

Figure 3.11: Search and Annotate Function of the Annotation Editor.

To search and annotate the document automatically, use the search and annotate function as shown in figure 3.11:

Note that after using the [First] button you can move the caret in the document and use the [Next] button to avoid continuing the search from the beginning of the document. The [?] button at the end of the search text field will help you to build powerful regular expressions to search.

3.4.6 Schema-Driven Editing [#]

Annotation schemas allow annotation types and features to be pre-specified, so that during manual annotation, the relevant options appear on the drop-down lists in the annotation editor. You can see some example annotation schemas in Section 5.4.1. Annotation schemas provide a means to define types of annotations in GATE Developer. Basically this means that GATE Developer ‘knows about’ annotations defined in a schema. Annotation schemas are supported by the ‘Annotation schema’ language resource, which is one of the default LR types (along with corpus and document) available in GATE without the need to load any plugins.

To load an annotation schema into GATE Developer, right-click on ‘Language Resources’ in the resources pane. Select ‘New’ then ‘Annotation schema’. A popup box will appear in which you can browse to your annotation schema XML file. A default set of annotation schemas for common annotation types including Person, Organization and Location is provided in the ANNIE plugin, and can be loaded by creating an Annotation schema LR from the file plugins/ANNIE/resources/schema/ANNIE-Schemas.xml in the GATE distribution. You can also define your own schemas to tell GATE Developer about other kinds of annotations you frequently use. Each schema file can define only one annotation type, but you can have a master file which includes others, in order to load a group of schemas in one operation. The ANNIE schemas provide an example of this technique.

By default GATE Developer will allow you to create any annotations in a document, whether or not there is a schema to describe them. An alternative annotation editor component is available which constrains the available annotation types and features much more tightly, based on the annotation schemas that are currently loaded. This is particularly useful when annotating large quantities of data or for use by less skilled users.

To use this, you must load the Schema_Annotation_Editor plugin. With this plugin loaded, the annotation editor will only offer the annotation types permitted by the currently loaded set of schemas, and when you select an annotation type only the features permitted by the schema are available to edit1. Where a feature is declared as having an enumerated type the available enumeration values are presented as an array of buttons, making it easy to select the required value quickly.

3.4.7 Printing Text with Annotations [#]

We suggest you to use your browser to print a document as GATE don’t propose a printing facility for the moment.

First save your document by right clicking on the document in the left resources tree then choose ‘Save Preserving Format’. You will get an XML file with all the annotations highlighted as XML tags plus the ‘Original markups’ annotations set.

It’s possible that the output will not have an XML header and footer because the document was created from a plain text document. In that case you can use the XHTML example below.

Then add a stylesheet processing instruction at the beginning of the XML file, the second line in the following minimalist XHTML document:

<?xml version="1.0" encoding="UTF-8" ?>
<?xml-stylesheet type="text/css" href="gate.css"?>
<!DOCTYPE html
     PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
    <title>Virtual Library</title>
  <p>Content of the document</p>

And create a file ‘gate.css’ in the same directory:

BODY, body { margin: 2em } /* or any other first level tag */
P, p { display: block } /* or any other paragraph tag */
/* ANNIE tags but you can use whatever tags you want */
/* be careful that XML tags are case sensitive */
Date         { background-color: rgb(230, 150, 150) }
FirstPerson  { background-color: rgb(150, 230, 150) }
Identifier   { background-color: rgb(150, 150, 230) }
JobTitle     { background-color: rgb(150, 230, 230) }
Location     { background-color: rgb(230, 150, 230) }
Money        { background-color: rgb(230, 230, 150) }
Organization { background-color: rgb(230, 200, 200) }
Percent      { background-color: rgb(200, 230, 200) }
Person       { background-color: rgb(200, 200, 230) }
Title        { background-color: rgb(200, 230, 230) }
Unknown      { background-color: rgb(230, 200, 230) }
Etc          { background-color: rgb(230, 230, 200) }
/* The next block is an example for having a small tag
   with the name of the annotation type after each annotation */
Date:after {
content: "Date";
font-size: 50%;
vertical-align: sub;
color: rgb(100, 100, 100);

Finally open the XML file in your browser and print it.

Note that overlapping annotations, cannot be expressed correctly with inline XML tags and thus won’t be displayed correctly.

3.5 Using CREOLE Plugins [#]

In GATE, processing resources are used to automatically create and manipulate annotations on documents. We will talk about processing resources in the next section. However, we must first introduce CREOLE plugins. In most cases, in order to use a particular processing resource (and certain language resources) you must first load the CREOLE plugin that contains it. This section talks about using CREOLE plugins. Then, in Section 3.7, we will talk about creating and using processing resources.

The definitions of CREOLE resources (e.g. processing resources such as taggers and parsers, see Chapter 4) are stored in Maven central repository.

Plugins can have one or more of the following states in relation with GATE:

plugins are those plugins that the system knows about. These include all the plugins: 1. default plugins provided by Gate team. 2. The plugins added by the user manually according to the Maven artifact id. 3. those installed in the user’s own plugin directory.
plugins are the plugins currently loaded in the system. All CREOLE resource types from the loaded plugins are available for use. All known plugins can easily be loaded and unloaded using the user interface.
plugins are the list of plugins that the system loads automatically during initialisation which can be configured via the load.plugin.path system property.

As hinted at above plugins can be loaded from numerous sources:

core plugins
are distributed with GATE to the Maven central repository.
maven plugins
are distributed with other parties to the Maven central repository.
user plugins
are plugins that have been installed by the user into their personal plugins folder. The location of this folder can be set either through the configuration tab of the CREOLE manager interface or via the gate.user.plugins system property
remote plugins
are plugins which are loaded via http from a remote machine.

The CREOLE plugins can be managed through the graphical user interface which can be activated by selecting ‘Manage CREOLE Plugins’ from the ‘File’ menu. This will bring up a window listing all the known plugins. For each plugin there are two check-boxes – one labelled ‘Load Now’, which will load the plugin, and the other labelled ‘Load Always’ which will add the plugin to the list of auto-loadable plugins. A ‘Delete’ button is also provided – which will remove the plugin from the list of known plugins. This operation does not delete the actual plugin directory. Installed plugins are found automatically when GATE is started; if an installed plugin is deleted from the list, it will re-appear next time GATE is launched.


Figure 3.12: Plugin Management Console

If you select a plugin, you will see in the pane on the right the list of resources that plugin contains. For example, in figure 3.12, the ‘ANNIE’ plugin is selected, and you can see that it contains 17 resources. If you wish to use a particular resource you will have to ascertain which plugin contains it. This list can be useful for that.

Having loaded the plugins you need, the resources they define will be available for use. Typically, to the GATE Developer user, this means that they will appear on the ‘New’ menu when you right-click on ‘Processing Resources’ in the resources pane, although some special plugins have different effects; for example, the Schema_Annotation_Editor (see Section 3.4.6).

Some plugins also contain files which are used to configure the resources. For example, the ANNIE plugin contains the resources for the ANNIE Gazetteer and the ANNIE NE Transducer (amongst other things). While often these files can be used straight from within the plugin, it can be useful to edit them, either to add missing information or as a starting point for delveloping new resources etc. To extract a copy of these resource files from a plugin simply select it in the plugin manager and then click the download resources button shown under the list of resources the plugin defines. This button will only be enabled for plugins which contain such files. After clicking the button you will be asked to select a directory into which to copy the files. You can then edit the files as needed before using them to configure a new instance of the appropriate processing resource.

3.6 Installing and updating CREOLE Plugins [#]

While GATE is distributed with a number of core plugins (see Part III) there are many more plugins developed and made available by other GATE users. Some of these additional plugins can easily be installed into your local copy of GATE through the CREOLE plugin manager.


Figure 3.13: Installing New CREOLE Plugins Through The Manager

Installing new plugins is simply a case of checking the box and clicking ‘Apply All’. Note that plugins are installed into the user plugins directory, which must have been correctly configured before you can try installing new plugins.

Once a plugin is installed it will appear in the list of ‘Installed Plugins’ and can be loaded in the same way as any other CREOLE plugin (see Section 3.7). If a new version of a plugin you have installed becomes available the new version will be offered as an update. These updates can be installed in the same way as a new plugin.

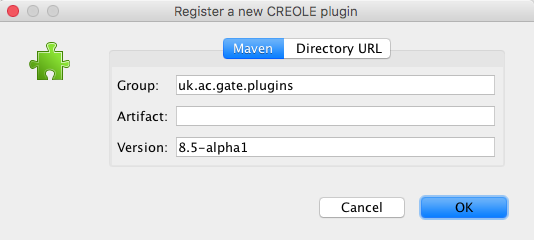

To register a new plugin just need simply click the ‘+’ button located at the top right corner of Plugin Manager Then you can either register a new plugin by provide the Maven Group and Artifact ID for maven plugins or provide the Dirctory URL for local or remote plugins.

3.7 Loading and Using Processing Resources [#]

This section describes how to load and run CREOLE resources not present in ANNIE. To load ANNIE, see Section 3.8.3. For technical descriptions of these resources, see the appropriate chapter in Part III (e.g. Chapter 23). First ensure that the necessary plugins have been loaded (see Section 3.5). If the resource you require does not appear in the list of Processing Resources, then you probably do not have the necessary plugin loaded. Processing resources are loaded by selecting them from the set of Processing Resources: right click on Processing Resources or select ‘New Processing Resource’ from the File menu.

For example, use the Plugin Console Manager to load the ‘Tools’ plugin. When you right click on ‘Processing Resources’ in the resources pane and select ‘New’ you have the option to create any of the processing resources that plugin provides. You may choose to create a ‘GATE Morphological Analyser’, with the default parameters. Having done this, an instance of the GATE Morphological Analyser appears under ‘Processing Resources’. This processing resource, or PR, is now available to use. Double-clicking on it in the resources pane reveals its initialisation parameters, see figure 3.14.


Figure 3.14: GATE Morphological Analyser Initialisation Parameters

This processing resource is now available to be added to applications. It must be added to an application before it can be applied to documents. You may create as many of a particular processing resource as you wish, for example with different initialisation parameters. Section 3.8 talks about creating and running applications.

See also the movie for loading processing resources.

3.8 Creating and Running an Application [#]

Once all the resources you need have been loaded, an application can be created from them, and run on your corpus. Right click on ‘Applications’ and select ‘New’ and then either ‘Corpus Pipeline’ or ‘Pipeline’. A pipeline application can only be run over a single document, while a corpus pipeline can be run over a whole corpus.

To build the pipeline, double click on it, and select the resources needed to run the application (you may not necessarily wish to use all those which have been loaded).

Transfer the necessary components from the set of ‘loaded components’ displayed on the left hand side of the main window to the set of ‘selected components’ on the right, by selecting each component and clicking on the left and right arrows, or by double-clicking on each component.

Ensure that the components selected are listed in the correct order for processing (starting from the top). If not, select a component and move it up or down the list using the up/down arrows at the left side of the pane.

Ensure that any parameters necessary are set for each processing resource (by clicking on the resource from the list of selected resources and checking the relevant parameters from the pane below). For example, if you wish to use annotation sets other than the Default one, these must be defined for each processing resource.

Note that if a corpus pipeline is used, the corpus needs only to be set once, using the drop-down menu beside the ‘corpus’ box. If a pipeline is used, the document must be selected for each processing resource used.

Finally, click on ‘Run’ to run the application on the document or corpus.

See also the movie for loading and running processing resources.

For how to use the conditional versions of the pipelines see Section 3.8.2 and for saving/restoring the configuration of an application see Section 3.9.3.

3.8.1 Running an Application on a Datastore [#]

To avoid loading all your documents at the same time you can run an application on a datastore corpus.

To do this you need to load your datastore, see section 3.9.2, and to load the corpus from the datastore by double clicking on it in the datastore viewer.

Then, in the application viewer, you need to select this corpus in the drop down list of corpora.

When you run the application on the corpus datastore, each document will be loaded, processed, saved then unloaded. So at any time there will be only one document from the datastore corpus loaded. This prevent memory shortage but is also a little bit slower than if all your documents were already loaded.

The processed documents are automatically saved back to the datastore so you may want to use a copy of the datastore to experiment.

Be very careful that if you have some documents from the datastore corpus already loaded before running the application then they will not be unloaded nor saved. To save such document you have to right click on it in the resources tree view and save it to the datastore.

3.8.2 Running PRs Conditionally on Document Features [#]

The ‘Conditional Pipeline’ and ‘Conditional Corpus Pipeline’ application types are conditional versions of the pipelines mentioned in Section 3.8 and allow processing resources to be run or not according to the value of a feature on the document. In terms of graphical interface, the only addition brought by the conditional versions of the applications is a box situated underneath the lists of available and selected resources which allows the user to choose whether the currently selected processing resource will run always, never or only on the documents that have a particular value for a named feature.

If the Yes option is selected then the corresponding resource will be run on all the documents processed by the application as in the case of non-conditional applications. If the No option is selected then the corresponding resource will never be run; the application will simply ignore its presence. This option can be used to temporarily and quickly disable an application component, for debugging purposes for example.

The If value of feature option permits running specific application components conditionally on document features. When selected, this option enables two text input fields that are used to enter the name of a feature and the value of that feature for which the corresponding processing resource will be run. When a conditional application is run over a document, for each component that has an associated condition, the value of the named feature is checked on the document and the component will only be used if the value entered by the user matches the one contained in the document features.

At first sight the conditional behaviour available with these controller may seem limited, but in fact it is very powerful when used in conjunction with JAPE grammars (see chapter 8). Complex conditions can be encoded in JAPE rules which set the appropriate feature values on the document for use by the conditional controllers. Alternatively, the Groovy plugin provides a scriptable controller (see section 7.16.3) in which the execution strategy is defined by a Groovy script, allowing much richer conditional behaviour to be encoded directly in the controller’s configuration.

3.8.3 Doing Information Extraction with ANNIE [#]

This section describes how to load and run ANNIE (see Chapter 6) from GATE Developer. ANNIE is a good place to start because it provides a complete information extraction application, that you can run on any corpus. You can then view the effects.

From the File menu, select ‘Load ANNIE System’. To run it in its default state, choose ‘with Defaults’. This will automatically load all the ANNIE resources, and create a corpus pipeline called ANNIE with the correct resources selected in the right order, and the default input and output annotation sets.

If ‘without Defaults’ is selected, the same processing resources will be loaded, but a popup window will appear for each resource, which enables the user to specify a name, location and other parameters for the resource. This is exactly the same procedure as for loading a processing resource individually, the difference being that the system automatically selects those resources contained within ANNIE. When the resources have been loaded, a corpus pipeline called ANNIE will be created as before.

The next step is to add a corpus (see Section 3.3), and select this corpus from the drop-down corpus menu in the Serial Application editor. Finally click on ‘Run’ from the Serial Application editor, or by right clicking on the application name in the resources pane and selecting ‘Run’. (Many people prefer to switch to the messages tab, then run their application by right-clicking on it in the resources pane, because then it is possible to monitor any messages that appear whilst the application is running.)

To view the results, double click on one of the document contained in the corpus processed in the left hand tree view. No annotation sets nor annotations will be shown until annotations are selected in the annotation sets; the ‘Default’ set is indicated only with an unlabelled right-arrowhead which must be selected in order to make visible the available annotations. Open the default annotation set and select some of the annotations to see what the ANNIE application has done.

See also the movie for loading and running ANNIE.

3.8.4 Modifying ANNIE [#]

You will need to first make a copy of ANNIE resources by extracting them from the ANNIE plugin via the plugin manager. Once you have a copy of the resources simply locate the file(s) you want to modify, edit them, and then use them to configure the appropriate ANNIE processing resources.

3.9 Saving Applications and Language Resources [#]

In this section, we will describe how applications and language resources can be saved for use outside of GATE and for use with GATE at a later time. Section 3.9.1 talks about saving documents to file. Section 3.9.2 outlines how to use datastores. Section 3.9.3 talks about saving application states (resource parameter states), and Section 3.9.4 talks about exporting applications together with referenced files and resources to a ZIP file.

3.9.1 Saving Documents to File [#]

There are three main ways to save annotated documents:

  1. preserving the original markup, with optional added annotations;
  2. in GATE’s own XML serialisation format (including all the annotations on the document);
  3. by writing your own dump algorithm as a processing resource.

This section describes how to use the first two options.

Both types of data export are available in the popup menu triggered by right-clicking on a document in the resources tree (see Section 3.1): type 1 is called ‘Save Preserving Format’ and type 2 is called ‘Save as XML’. In addition, all documents in a corpus can be saved as individual XML files into a directory by right-clicking on the corpus in the resources tree and choosing the option ‘Save as XML‘.

Selecting the save as XML option leads to a file open dialogue; give the name of the file you want to create, and the whole document and all its data will be exported to that file. If you later create a document from that file, the state will be restored. (Note: because GATE’s annotation model is richer than that of XML, and because our XML dump implementation sometimes cuts corners2, the state may not be identical after restoration. If your intention is to store the state for later use, use a DataStore instead.)

The ‘Save Preserving Format’ option also leads to a file dialogue; give a name and the data you require will be dumped into the file. The action can be used for documents that were created from files using the XML or HTML format. It will save all the original tags as well as the document annotations that are currently displayed in the ‘Annotations List’ view. This option is useful for selectively saving only some annotation types.

The annotations are saved as normal document tags, using the annotation type as the tag name. If the advanced option ‘Include annotation features for “Save Preserving Format”’ (see Section 2.5) is set to true, then the annotation features will also be saved as tag attributes.

Using this operation for GATE documents that were not created from an HTML or XML file results in a plain text file, with in-line tags for the saved annotations.

Note that GATE’s model of annotation allows graph structures, which are difficult to represent in XML (XML is a tree-structured representation format). During the dump process, annotations that cross each other in ways that cannot be represented in legal XML will be discarded, and a warning message printed.

3.9.2 Saving and Restoring LRs in Datastores [#]

Where corpora are large, the memory available may not be sufficient to have all documents open simultaneously. The datastore functionality provides the option to save documents to disk and open them only one at a time for processing. This means that much larger corpora can be used. A datastore can also be useful for saving documents in an efficient and lossless way.

To save a text in a datastore, a new datastore must first be created if one does not already exist. Create a datastore by right clicking on Datastore in the left hand pane, and select the option ‘Create Datastore’. Select the data store type you wish to use. Create a directory to be used as the datastore (note that the datastore is a directory and not a file).

You can either save a whole corpus to the datastore (in which case the structure of the corpus will be preserved) or you can save individual documents. The recommended method is to save the whole corpus. To save a corpus, right click on the corpus name and select the ‘Save to...’ option (giving the name of the datastore created earlier). To save individual documents to the datastore, right clicking on each document name and follow the same procedure.

To load a document from a datastore, do not try to load it as a language resource. Instead, open the datastore by right clicking on Datastore in the left hand pane, select ‘Open Datastore’ and choose the datastore to open. The datastore tree will appear in the main window. Double click on a corpus or document in this tree to open it. To save a corpus and document back to the same datastore, simply select the ‘Save’ option.

See also the movie for creating a datastore and the movie for loading corpus and documents from a datastore.

3.9.3 Saving Application States to a File [#]

Resources, and applications that are made up of them, are created based on the settings of their parameters (see Section 3.7). It is possible to save the data used to create an application to a file and re-load it later. To save the application to a file, right click on it in the resources tree and select ‘Save application state’, which will give you a file creation dialogue. Choose a file name that ends in gapp as this file dialog and the one for loading application states age displays all files which have a name ending in gapp. A common convention is to use .gapp or .xgapp as a file extension.

To restore the application later, select ‘Restore application from file’ from the ‘File’ menu.

Note that the data that is saved represents how to recreate an application – not the resources that make up the application itself. So, for example, if your application has a resource that initialises itself from some file (e.g. a grammar, a document) then that file must still exist when you restore the application.

In case you don’t want to save the corpus configuration associated with the application then you must select ‘<none>’ in the corpus list of the application before saving the application.

The file resulting from saving the application state contains the values of the initialisation and runtime parameters for all the processing resources contained by the stored application as well as the values of the initialisation parameters for all the language resources referenced by those processing resources. Note that if you reference a document that has been created with an empty URL and empty string content parameter and subsequently been manually edited to add content, that content will not be saved. In order for document content to be preserved, load the document from an URL, specify the content as for the string content parameter or use a document from a datastore.

For the parameters of type URL or “ResourceReference” (which are typically used to select resources such as grammars or rules files either from inside the plugin or elsewhere on disk) a transformation is applied so that the paths are are stored relative to either the location of the saved application state file or a special user resources home directory, according to the following rules:

References to resources inside GATE plugins are stored as a special type of URI of the form creole://group;artifact;version/path/inside/plugin. In this way, all resource files that are part of plugins are always used corretly, no matter where the plugins are stored. Resource files which are not part of a plugin and used by an application do not need to be in the same location as when the application was initially created but rather in the same location relative to the location of the application file. In addition if your application uses a project-specific location for global resources or project specific plugins, the java property gate.user.resourceshome can be set to this location and the application will be stored so that this location will also always be used correctly, no matter where the application state file is copied to. To set the resources home directory, the -rh location option for the Linux script gate.sh to start GATE can be used. The combination of these features allows the creation and deployment of portable applications by keeping the application file and the resource files used by the application together.

If your application uses resources from inside plugins then those resources may change if you upgrade your application to a newer version of the plugin. If you want to upgrade to a newer plugin but keep the same resources you should export a copy of the resource files from the plugin onto disk and load them from there instead of using the plugin-relative defaults.

When an application is restored from an application state file, GATE uses the keyword $relpath$ for paths relative to the location of the gapp file and $resourceshom$ for paths relative to the the location the property gate.user.resourceshome is set. There exists other keywords that can be interesting in some cases. You will need to edit the gapp file manually. You can use $sysprop:...$ to declare paths relative to any java system property, for example $sysprop:user.home$.

If you want to save your application along with all plugins and resources it requires you can use the ‘Export for GATE Cloud’ option (see Section 3.9.4).

See also the movie for saving and restoring applications.

3.9.4 Saving an Application with its Resources (e.g. GATE Cloud) [#]

When you save an application using the ‘Save application state’ option (see Section 3.9.3), the saved file contains references to the plugins that were loaded when the application was saved, and to any resource files required by the application. To be able to reload the file, these plugins and other dependencies must exist at the same locations (relative to the saved state file). While this is fine for saving and loading applications on a single machine it means that if you want to package your application to run it elsewhere (e.g. deploy it to GATE Cloud) then you need to be careful to include all the resource files and plugins at the right locations in your package. The ‘Export for GATE Cloud’ option on the right-click menu for an application helps to automate this process.

When you export an application in this way, GATE Developer produces a ZIP file containing the saved application state (in the same format as ‘Save application state’). Any plugins and resource files that the application refers to are also included in the zip file, and the relative paths in the saved state are rewritten to point to the correct locations within the package. The resulting package is therefore self-contained and can be copied to another machine and unpacked there, or passed to GATE Cloud for deployment. Maven-style plugins will be resolved from within the package rather than being downloaded at runtime from the internet.

There are a few important points to note about the export process:

If you require more flexibility than this option provides you should read Section E.2, which describes the underlying Ant task that the exporter uses.

3.9.5 Upgrade An Application to use Newer Versions of Plugins [#]

Some of the changes introduced in GATE 8.5 mean that applications saved with a previous version of GATE might not load without being updated. Loading such an application is likely to result in errors similar to those seen in Figure 3.15.


Figure 3.15: Old xgapp version Loading Error

In order to load such application into GATE 8.5 (or above), you need first upgrade them to use compatible versions of the relevant plugins. In most cases this process can be automated and we provide a tool to walk you through the process. To start upgrading an application select ‘Upgrade XGapp’ from the ‘Tools’ menu. This will first ask you to choose an application file to upgrade and will then present the UI shown in Figure 3.16.


Figure 3.16: XGapp Upgrade Tool

One the application has been analysed the tool will show you a table in which each row signifies a plugin used by the app. In the left most column it lists the plugin currently referenced by the application. This is followed by details of the new plugin. While in most cases the tool can correctly determine the right plugin to offer in this column you can correct any mistakes by double-clicking the incorrect plugin and then specifying the correct plugin location. The final two columns determine if the plugin is upgraded and to which version. The versions offered are all those which are available and known to be compatible with the version of GATE you are running. By default the latest available version will be selected, although -SNAPSHOT versions are only selected by default if you are also running a -SNAPSHOT version of GATE.

The ‘Upgrade’ column allows you to determine if and how a plugin will be upgraded. The three possible choices are Upgrade, Plugin Only, and Skip. Skip is fairly self explanatory but upgrade and plugin only require a little more explanation. Upgrade means that not only will the plugin location be upgraded, but also any resources that reside within the plugin will also be changed to reference those within the new plugin. This is the only upgrade option when considering a plugin which was originally part of the GATE distribution. The plugin only option allows you to change the application to load a new version of the plugin which leaving the resource locations untouched. This is useful for cases where you have edited the resources inside a plugin rather than having created a separate copy specific to the application.

After upgrade, the old version of the application file will still be available but will have been renamed by adding the ’.bak’ suffix.

In most cases this upgrade process will work without issue. If, however, you find you have an application which fails to open after the upgrade then it maybe because one or more plugins couldn’t be correctly mapped to new versions. In these cases the best option is to revert the upgrade (replace the xgapp file with the generated backup), load the application into GATE 8.4.1 and then use the “Export for GATE Cloud” option to produce a self contained application (see Section 3.9.4). Then finally run the upgrade tool over this version of the application.

The two buttons at the top of the dialog allow you save and restore the mappings defined in the table. This makes it easier to upgrade a set of related applications which should all be upgraded in a similar fashion.

Note that this process is not limited simply to upgrading applications saved prior to GATE 8.5 but can be used at any time to upgrade the version of a plugin used by an application.

3.10 Keyboard Shortcuts [#]

You can use various keyboard shortcuts for common tasks in GATE Developer. These are listed in this section.

General (Section 3.1):

Resources tree (Section 3.1):

Document editor (Section 3.2):

Annotation editor (Section 3.4):

Annic/Lucene datastore (Chapter 9):

Annic/Lucene query text field (Chapter 9):

3.11 Miscellaneous [#]

3.11.1 Stopping GATE from Restoring Developer Sessions/Options [#]

GATE can remember Developer options and the state of the resource tree when it exits. The options are saved by default; the session state is not saved by default. This default behaviour can be changed from the ‘Advanced’ tab of the ‘Configuration’ choice on the ‘Options’ menu (or the ‘Preferences’ option on the ‘GATE’ application menu on Mac).

If a problem occurs and the saved data prevents GATE Developer from starting, you can fix this by deleting the configuration and session data files. These are stored in your home directory, and are called gate.xml and gate.sesssion or .gate.xml and .gate.sesssion depending on platform. On Windows your home is typically:

95, 98, NT:
Windows Directory/profiles/username
2000, XP:
Windows Drive/Documents and Settings/username
Windows 7 or later
Windows Drive/Users/username

though the directory name may be in your local language if your copy of Windows is not in English.

3.11.2 Working with Unicode [#]

When you create a document from a URL pointing to textual data in GATE, you have to tell the system what character encoding the text is stored in. By default, GATE will set this parameter to be the empty string. This tells Java to use the default encoding for whatever platform it is running on at the time – e.g. on Western versions of Windows this will be ISO-8859-1, and Eastern ones ISO-8859-9. On Linux systems, the default encoding is influenced by the LANG environment variable, e.g. when this variable is set to en_US.utf-8 the default encoding used will be UTF-8. You can change the default encoding used by GATE to UTF-8 by adding -Dfile.encoding=UTF-8 to the gate.l4j.ini file.

A popular way to store Unicode documents is in UTF-8, which is a superset of ASCII (but can still store all Unicode data); if you get an error message about document I/O during reading, try setting the encoding to UTF-8, or some other locally popular encoding.

Chapter 4
CREOLE: the GATE Component Model [#]

…Noam Chomsky’s answer in Secrets, Lies and Democracy (David Barsamian 1994; Odonian) to ‘What do you think about the Internet?’

‘I think that there are good things about it, but there are also aspects of it that concern and worry me. This is an intuitive response – I can’t prove it – but my feeling is that, since people aren’t Martians or robots, direct face-to-face contact is an extremely important part of human life. It helps develop self-understanding and the growth of a healthy personality.

‘You just have a different relationship to somebody when you’re looking at them than you do when you’re punching away at a keyboard and some symbols come back. I suspect that extending that form of abstract and remote relationship, instead of direct, personal contact, is going to have unpleasant effects on what people are like. It will diminish their humanity, I think.’

Chomsky, quoted at http://philip.greenspun.com/wtr/dead-trees/53015.

The GATE architecture is based on components: reusable chunks of software with well-defined interfaces that may be deployed in a variety of contexts. The design of GATE is based on an analysis of previous work on infrastructure for LE, and of the typical types of software entities found in the fields of NLP and CL (see in particular chapters 4–6 of [Cunningham 00]). Our research suggested that a profitable way to support LE software development was an architecture that breaks down such programs into components of various types. Because LE practice varies very widely (it is, after all, predominantly a research field), the architecture must avoid restricting the sorts of components that developers can plug into the infrastructure. The GATE framework accomplishes this via an adapted version of the Java Beans component framework from Sun, as described in section 4.2.

GATE components may be implemented by a variety of programming languages and databases, but in each case they are represented to the system as a Java class. This class may do nothing other than call the underlying program, or provide an access layer to a database; on the other hand it may implement the whole component.

GATE components are one of three types:

The distinction between language resources and processing resources is explored more fully in section D.1.1. Collectively, the set of resources integrated with GATE is known as CREOLE: a Collection of REusable Objects for Language Engineering.

In the rest of this chapter:

4.1 The Web and CREOLE [#]

GATE allows resource implementations and Language Resource persistent data to be distributed over the Web, and uses Java annotations for configuration of resources (and GATE itself).

Resource implementations are grouped together as ‘plugins’, stored either in a single JAR file published via the standard Maven repository mechanism, or at a URL (when the resources are in the local file system this would be a file:/ URL). When a plugin is loaded into GATE it looks for a configuration file called creole.xml relative to the plugin URL or inside the plugin JAR file and uses the contents of this file in combination with Java annotations on the source code to determine what resources this plugin declares and, in the case of directory-style plugins, where to find the classes that implement the resource types (typically a JAR file in the plugin directory). GATE retrieves the configuration information from the plugin’s resource classes and adds the resource definitions to the CREOLE register. When a user requests an instantiation of a resource, GATE creates an instance of the resource class in the virtual machine.

Language resource data can be stored in binary serialised form in the local file system.

4.2 The GATE Framework [#]

We can think of the GATE framework as a backplane into which users can plug CREOLE components. The user gives the system a list of plugins to search when it starts up, and components in those plugins are loaded by the system.

The backplane performs these functions:

A set of components plus the framework is a deployment unit which can be embedded in another application.

At their most basic, all GATE resources are Java Beans, the Java platform’s model of software components. Beans are simply Java classes that obey certain interface conventions:

GATE uses Java Beans conventions to construct and configure resources at runtime, and defines interfaces that different component types must implement.

4.3 The Lifecycle of a CREOLE Resource [#]

CREOLE resources exhibit a variety of forms depending on the perspective they are viewed from. Their implementation is as a Java class plus an XML metadata file living at the same URL. When using GATE Developer, resources can be loaded and viewed via the resources tree (left pane) and the ‘create resource’ mechanism. When programming with GATE Embedded, they are Java objects that are obtained by making calls to GATE’s Factory class. These various incarnations are the phases of a CREOLE resource’s ‘lifecycle’. Depending on what sort of task you are using GATE for, you may use resources in any or all of these phases. For example, you may only be interested in getting a graphical view of what GATE’s ANNIE Information Extraction system (see Chapter 6) does; in this case you will use GATE Developer to load the ANNIE resources, and load a document, and create an ANNIE application and run it on the document. If, on the other hand, you want to create your own resources, or modify the Java code of an existing resource (as opposed to just modifying its grammar, for example), you will need to deal with all the lifecycle phases.

The various phases may be summarised as:

Creating a new resource from scratch (bootstrapping).
To create the binary image of a resource (a Java class in a JAR file), and the XML file that describes the resource to GATE, you need to create the appropriate .java file(s), compile them and package them as a .jar. GATE provides a Maven archetype to start this process – see Section 7.12. Alternatively you can simply copy code from an existing resource.
Instantiating a resource in GATE Embedded.
To create a resource in your own Java code, use GATE’s Factory class (this takes care of parameterising the resource, restoring it from a database where appropriate, etc. etc.). Section 7.2 describes how to do this.
Loading a resource into GATE Developer.
To load a resource into GATE Developer, use the various ‘New ... resource’ options from the File menu and elsewhere. See Section 3.1.
Resource configuration and implementation.
GATE’s Maven archetype will create an empty resource that does nothing. In order to achieve the behaviour you require, you’ll need to change the Java code and its configuration annotations. See section 4.7 for more details.

4.4 Processing Resources and Applications [#]

PRs can be combined into applications. Applications model a control strategy for the execution of PRs. In GATE, applications are called ‘controllers’ accordingly.

Currently the main application types provided by GATE implement sequential or “pipeline” control flow. There are two main types of pipeline:

Simple pipelines
simply group a set of PRs together in order and execute them in turn. The implementing class is called SerialController.
Corpus pipelines
are specific for LanguageAnalysers – PRs that are applied to documents and corpora. A corpus pipeline opens each document in the corpus in turn, sets that document as a runtime parameter on each PR, runs all the PRs on the corpus, then closes the document. The implementing class is called SerialAnalyserController.

Conditional versions of these controllers are also available. These allow processing resources to be run conditionally on document features. See Section 3.8.2 for how to use these. If more flexibility is required, the Groovy plugin provides a scriptable controller (see section 7.16.3) whose execution strategy is specified using the Groovy programming language.

Controllers are themselves PRs – in particular a simple pipeline is a standard PR and a corpus pipeline is a LanguageAnalyser – so one pipeline can be nested in another. This is particularly useful with conditional controllers to group together a set of PRs that can all be turned on or off as a group.

There is also a real-time version of the corpus pipeline. When creating such a controller, a timeout parameter needs to be set which determines the maximum amount of time (in milliseconds) allowed for the processing of a document. Documents that take longer to process, are simply ignored and the execution moves to the next document after the timeout interval has lapsed.

All controllers have special handling for processing resources that implement the interface gate.creole.ControllerAwarePR. This interface provides methods that are called by the controller at the start and end of the whole application’s execution – for a corpus pipeline, this means before any document has been processed and after all documents in the corpus have been processed, which is useful for PRs that need to share data structures across the whole corpus, build aggregate statistics, etc. For full details, see the JavaDoc documentation for ControllerAwarePR.

4.5 Language Resources and Datastores [#]

Language Resources can be stored in Datastores. Datastores are an abstract model of disk-based persistence, which can be implemented by various types of storage mechanism. Here are the types implemented:

Serial Datastores
are based on Java’s serialisation system, and store data directly into files and directories.
Lucene Datastores
is a full-featured annotation indexing and retrieval system. It is provided as part of an extension of the Serial Datastores. See Section 9 for more details.

4.6 Built-in CREOLE Resources [#]

GATE comes with various built-in components:

4.7 CREOLE Resource Configuration [#]

This section describes how to supply GATE with the configuration data it needs about a resource, such as what its parameters are, how to display it if it has a visualisation, etc. Several GATE resources can be grouped into a single plugin, which is a directory or JAR file containing an XML configuration file called creole.xml at its root. The creole.xml file provides metadata about the plugin as a whole, the configuration for individual resource classes is given directly in the Java source file using Java annotations.

A creole.xml file has a root element <CREOLE-DIRECTORY> which supports several optional attribute:

The name of the plugin. Used in the GUI to help identify the plugin in a nicer way than the direcory or artifact name.
The version number of the plugin. For example, 3, 3.1, 3.11, 3.12-SNAPSHOT etc.
A short description of the resources provided by the plugin. Note that there is really only space for a single sentence in the GUI.
The earliest version of GATE that this plugin is compatible with. This should be in the same format as the version shown in the GATE titlebar, i.e. 8.5 or 8.6-beta1. Do not include the build number information.

Currently all these attributes are optional, as in most cases the information can be pulled from other elements of the plugin metadata; for example, plugins distributued via Maven will use information from the pom.xml if not specified.

For many simple single-JAR plugins the creole.xml file need have no other content – just an empty <CREOLE-DIRECTORY /> element – but there are certain child elements that are used in some types of plugin.

Directory-style plugins need at least one <JAR> child element to tell GATE where to find the classes that implement the plugin’s resources. Each <JAR> element contains a path to a JAR file, which is resolved relative to the location of the creole.xml, for example:

  <JAR SCAN="true">myPlugin.jar</JAR>

JAR files that contain resource classes must be specified with SCAN="true", which tells GATE to scan the JAR contents to discover resource classes annotated with @CreoleResource (see below). Other JAR files required by the plugin can be specified using other <JAR> elements without SCAN="true".

Plugins can depend on other plugins, for example if a plugin defines a PR which internally makes use of a JAPE transducer then that plugin would declare that it depends on ANNIE (the standard plugin that defines the JAPE transducer PR). This is done with a <REQUIRES> element. To depend on a single-JAR plugin from a Maven repository, use an empty element with attributes GROUP, ARTIFACT and VERSION, for example

  <REQUIRES GROUP="uk.ac.gate.plugins"
            VERSION="8.5" />

Directory-style plugins can also depend on other directory-style plugins using a relative path (e.g. <REQUIRES>../other-plugin</REQUIRES>, but this is generally discouraged – if your plugin is likely to be required as a dependency of other plugins then it is better converted to the single JAR Maven style so the dependency can be handled via group/artifact/version co-ordinates.

You may see old plugins with other elements such as <RESOURCE>, this is the older style of configuration in XML, which is now deprecated in favour of the annotations described below.

4.7.1 Configuring Resources using Annotations [#]

The configuration of the resources within a plugin is handled using Java annotation types to embed the configuration data directly in the Java source code. @CreoleResource is used to mark a class as a GATE resource, and parameter information is provided through annotations on the JavaBean set methods. At runtime these annotations are read and used to construct the resource data that is registered with the CREOLE register. The metadata annotation types are all marked @Documented so the CREOLE configuration data will be visible in the generated JavaDoc documentation.

For more detailed information, see the JavaDoc documentation for gate.creole.metadata.

Basic Resource-Level Data

To mark a class as a CREOLE resource, simply use the @CreoleResource annotation (in the gate.creole.metadata package), for example:

1import gate.creole.AbstractLanguageAnalyser;
2import gate.creole.metadata.*;
4@CreoleResource(name = "GATE Tokeniser",
5                comment = "Splits text into tokens and spaces")
6public class Tokeniser extends AbstractLanguageAnalyser {
7  ...

The @CreoleResource annotation provides slots for various configuration values:

(String) the name of the resource, as it will appear in the ‘New’ menu in GATE Developer. If omitted, defaults to the bare name of the resource class (without a package name).
(String) a descriptive comment about the resource, which will appear as the tooltip when hovering over an instance of this resource in the resources tree in GATE Developer. If omitted, no comment is used.
(String) a URL to a help document on the web for this resource. It is used in the help browser inside GATE Developer.
(boolean) should this resource type be hidden from the GATE Developer GUI, so it does not appear in the ‘New’ menus? If omitted, defaults to false (i.e. not hidden).
(String) the icon to use to represent the resource in GATE Developer. If omitted, a generic language resource or processing resource icon is used. The value of this element can be:
  • a plain name such as “Application”, which is prepended with the package name gate.resources.img.svg. and the suffix “Icon”, which is assumed to be a Java class implementing javax.swing.Icon. GATE provides a collection of these icon classes which are generated from SVG files and are fully scalable for high-DPI monitors.
  • a path to an image file inside the plugin’s JAR, starting with a forward slash, e.g. /myplugin/images/icon.png
(String) the interface type implemented by this resource, for example a new type of document would specify "gate.Document" here.
(boolean) is this resource type a tool? The “tool” flag identifies things like resource helpers and resources that contribute items to the tools menu in GATe Developer.
(array of @AutoInstance annotations) definitions for any instances of this resource that should be created automatically when the plugin is loaded. If omitted, no auto-instances are created by default. Auto-instances are useful for things like document formats and tools which contribute behaviour to other GATE resources, and which should be available by default whenever the plugin is loaded.

For visual resources only, the following elements are also available:

(GuiType enum) the type of GUI this resource defines. The options are LARGE (the VR should appear in the main right-hand panel of the GUI) or SMALL (the VR should appear in the bottom left hand corner below the resources tree).
(String) the class name of the resource type that this VR displays, e.g. "gate.Corpus". Any resource whose type is assignable to this type will be displayed with this viewer, so for example a VR that can display all types of document would specify gate.Document, whereas a VR that can only display the default GATE document implementation would specify gate.corpora.DocumentImpl.
(boolean) is this VR the ‘most important’ viewer for its displayed resource type? If there are several different viewers that are all applicable to a particular resource type, the mainViewer hint helps GATE Developer decide which one should be initially visible as the selected tab.

For annotation viewers, you should specify an annotationTypeDisplayed element giving the annotation type that the viewer can display (e.g. Sentence).

Resource Parameters

Parameters are declared by placing annotations on their JavaBean set methods. To mark a setter method as a parameter, use the @CreoleParameter annotation, for example:

  @CreoleParameter(comment = "The location of the list of abbreviations")
  public void setAbbrListUrl(URL listUrl) {

GATE will infer the parameter’s name from the name of the JavaBean property in the usual way (i.e. strip off the leading set and convert the following character to lower case, so in this example the name is abbrListUrl). The parameter name is not taken from the name of the method parameter. The parameter’s type is inferred from the type of the method parameter (java.net.URL in this case).

The annotation elements of @CreoleParameter are as follows:

(String) an optional descriptive comment about the parameter.
(String) the optional default value for this parameter. The value is specified as a string but is converted to the relevant type by GATE according to the conversions described below.
(String) for parameters of type URL or ResourceReference, a semicolon-separated list of default file suffixes that this parameter accepts.
(Class) for Collection-valued parameters, the type of the elements in the collection. This can usually be inferred from the generic type information, for example public void setIndices(List<Integer> indices), but must be specified if the set method’s parameter has a raw (non-parameterized) type.

Parameter default values must be specified as strings, but parameters can be of any type and GATE applies the following rules to convert the default string into an appropriate value for the parameter type:

if the parameter is of type String the default value is used directly
Primitive wrapper types e.g. Integer
the string is passed to the relevant valueOf method
enum types
the value is passed to Enum.valueOf
java.net.URL or gate.creole.ResourceReference
the string is parsed as a URI, and if the URI is relative then it is resolved against the plugin (for directory-style plugins this means against the location of creole.xml and for Maven plugins it is the root of the plugin JAR file)
collection types (Set, List, etc.)
the string is treated as a semicolon-separated list of values, and each value is converted to the collection’s element type following these same rules.
the string is parsed as “feature1=value1;feature2=value2” etc. (a semicolon-separated list of “name=value” pairs)
any other java.* type
if the type has a constructor taking a String then that constructor is called with the default string as its parameter.

If there is no default specified, the default value is null.

Mutually-exclusive parameters are handled by adding a disjunction="label" and priority=n to the @CreoleParameter annotation – all parameters that share the same label are grouped in the same disjunction, and will be offered in order of priority. The parameter with the smallest priority value will be the one listed first, and thus the one that is offered initially when creating a resource of this type in GATE Developer. For example, the following is a simplified extract from gate.corpora.DocumentImpl:

1@CreoleParameter(disjunction="src", priority=1)
2public void setSourceUrl(URL src) { /* */ }
4@CreoleParameter(disjunction="src", priority=2)
5public void setStringContent(String content) { /* */ }

This declares the parameters “stringContent” and “sourceUrl” as mutually-exclusive, and when creating an instance of this resource in GATE Developer the parameter that will be shown initially is sourceUrl. To set stringContent instead the user must select it from the drop-down list. Parameters with the same declared priority value will appear next to each other in the list, but their relative ordering is not specified. Parameters with no explicit priority are always listed after those that do specify a priority.

Optional and runtime parameters are marked using extra annotations, for example:

1  @Optional
2  @RunTime
3  @CreoleParameter
4  public void setAnnotationSetName(String asName) {
5    ...

Runtime parameters apply only to Processing Resources, and are parameters that are not used when the resource is initialised but instead only when it is executed. An “optional” parameter is one that does not have to be set before creating or executing the resource.


A resource will inherit any configuration data that was not explicitly specified from annotations on its parent class and on any interfaces it implements. Specifically, if you do not specify a comment, interfaceName, icon, annotationTypeDisplayed or the GUI-related elements (guiType and resourceDisplayed) on your @CreoleResource annotation then GATE will look up the class tree for other @CreoleResource annotations, first on the superclass, its superclass, etc., then at any implemented interfaces, and use the first value it finds. This is useful if you are defining a family of related resources that inherit from a common base class.

The resource name and the isPrivate and mainViewer flags are not inherited.

Parameter definitions are inherited in a similar way. For example, the gate.LanguageAnalyser interface provides two parameter definitions via annotated set methods, for the corpus and document parameters. Any @CreoleResource annotated class that implements LanguageAnalyser, directly or indirectly, will get these parameters automatically.

Of course, there are some cases where this behaviour is not desirable, for example if a subclass calculates a value for a superclass parameter rather than having the user set it directly. In this case you can hide the parameter by overriding the set method in the subclass and using a marker annotation:

1  @HiddenCreoleParameter
2  public void setSomeParam(String someParam) {
3    super.setSomeParam(someParam);
4  }

The overriding method will typically just call the superclass one, as its only purpose is to provide a place to put the @HiddenCreoleParameter annotation.

Alternatively, you may want to override some of the configuration for a parameter but inherit the rest from the superclass. Again, this is handled by trivially overriding the set method and re-annotating it:

1  // superclass
2  @CreoleParameter(comment = "Location of the grammar file",
3                   suffixes = "jape")
4  public void setGrammarUrl(URL grammarLocation) {
5    ...
6  }
8  @Optional
9  @RunTime
10  @CreoleParameter(comment = "Feature to set on success")
11  public void setSuccessFeature(String name) {
12    ...
13  }
1  //
2  // subclass
4  // override the default value, inherit everything else
5  @CreoleParameter(defaultValue = "resources/defaultGrammar.jape")
6  public void setGrammarUrl(URL url) {
7    super.setGrammarUrl(url);
8  }
10  // we want the parameter to be required in the subclass
11  @Optional(false)
12  @CreoleParameter
13  public void setSuccessFeature(String name) {
14    super.setSuccessFeature(name);
15  }

Note that for backwards compatibility, data is only inherited from superclass annotations if the subclass is itself annotated with @CreoleResource.

4.7.2 Loading Third-Party Libraries in a Maven plugin [#]

A Maven plugin is distributed as a single JAR file, but if the plugin depends on any third-party libraries these can be specified as dependencies in the corresponding POM file in the usual Maven way as compile or runtime scoped dependencies.

If one plugin has a compile-time dependency on another (as opposed to simply a runtime dependency when one plugin creates resources defined in another) then you should specify the dependency in your POM as <scope>provided</scope> as well as declaring it in creole.xml with group/artifact/version.

4.8 Tools: How to Add Utilities to GATE Developer [#]

Visual Resources allow a developer to provide a GUI to interact with a particular resource type (PR or LR), but sometimes it is useful to provide general utilities for use in the GATE Developer GUI that are not tied to any specific resource type. Examples include the annotation diff tool and the Groovy console (provided by the Groovy plugin), both of which are self-contained tools that display in their own top-level window. To support this, the CREOLE model has the concept of a tool.

A resource type is marked as a tool by setting tool = true in the @CreoleResource annotation. If a resource is declared to be a tool, and written to implement the gate.gui.ActionsPublisher interface, then whenever an instance of the resource is created its published actions will be added to the “Tools” menu in GATE Developer.

Since the published actions of every instance of the resource will be added to the tools menu, it is best not to use this mechanism on resource types that can be instantiated by the user. The “tool” marker is best used in combination with the “private” flag (to hide the resource from the list of available types in the GUI) and one or more hidden autoinstance definitions to create a limited number of instances of the resource when its defining plugin is loaded. See the GroovySupport resource in the Groovy plugin for an example of this.

4.8.1 Putting Your Tools in a Sub-Menu [#]

If your plugin provides a number of tools (or a number of actions from the same tool) you may wish to organise your actions into one or more sub-menus, rather than placing them all on the single top-level tools menu. To do this, you need to put a special value into the actions returned by the tool’s getActions() method:

2    new String[] {"Acme toolkit", "Statistics"});

The key must be GateConstants.MENU_PATH_KEY and the value must be an array of strings. Each string in the array represents the name of one level of sub-menus. Thus in the example above the action would be placed under “Tools Acme toolkit Statistics”. If no MENU_PATH_KEY value is provided the action will be placed directly on the Tools menu.

4.8.2 Adding Tools To Existing Resource Types [#]

While Visual Resources (VR) allow you to add new features to a particular resource they have a number of shortcomings. Firstly not every new feature will require a full VR; often a new entry on the resources right-click menu will suffice. More importantly new feautres added via a VR are only available while the VR is open. A Resource Helper is a form of Tool, as above, which can add new menu options to any existing resource type without requiring a VR.

A Resource Helper is defined in the same way as a Tool (by setting the tool = true feature of the @CreoleResource annotation and loaded via an autoinstance definition) but must also extend the gate.gui.ResourceHelper class. A Resource Helper can then return a set of actions for a given resource which will be added to its right-click menu. See the FastInfosetExporter resource in the “Format: FastInfoset” plugin for an example of how this works.

A Resource Helper may also make new API calls accessable to allow similar functionality to be made available to GATE Embedded, see Section 7.19 for more details on how this works.

Chapter 5
Language Resources: Corpora, Documents and Annotations [#]

Sometimes in life you’ve got to dance like nobody’s watching.

I think they should introduce ‘sleeping’ to the Olympics. It would be an excellent field event, in which the ‘athletes’ (for want of a better word) all lay down in beds, just beyond where the javelins land, and the first one to fall asleep and not wake up for three hours would win gold. I, for one, would be interested in seeing what kind of personality would be suited to sleeping in a competitive environment.

Life is a mystery to be lived, not a problem to be solved.

Round Ireland with a Fridge, Tony Hawks, 1998 (pp. 119, 147, 179).

This chapter documents GATE’s model of corpora, documents and annotations on documents. Section 5.1 describes the simple attribute/value data model that corpora, documents and annotations all share. Section 5.2, Section 5.3 and Section 5.4 describe corpora, documents and annotations on documents respectively. Section 5.5 describes GATE’s support for diverse document formats, and Section 5.5.2 describes facilities for XML input/output.

5.1 Features: Simple Attribute/Value Data [#]

GATE has a single model for information that describes documents, collections of documents (corpora), and annotations on documents, based on attribute/value pairs. Attribute names are strings; values can be any Java object. The API for accessing this feature data is Java’s Map interface (part of the Collections API).

5.2 Corpora: Sets of Documents plus Features [#]

A Corpus in GATE is a Java Set whose members are Documents. Both Corpora and Documents are types of LanguageResource (LR); all LRs have a FeatureMap (a Java Map) associated with them that stored attribute/value information about the resource. FeatureMaps are also used to associate arbitrary information with ranges of documents (e.g. pieces of text) via the annotation model (see below).

Documents have a DocumentContent which is a text at present (future versions may add support for audiovisual content) and one or more AnnotationSets which are Java Sets.

5.3 Documents: Content plus Annotations plus Features [#]

Documents are modelled as content plus annotations (see Section 5.4) plus features (see Section 5.1). The content of a document can be any subclass of DocumentContent.

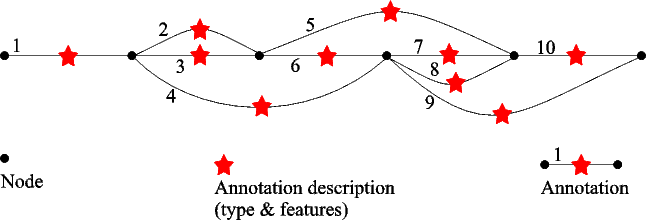

5.4 Annotations: Directed Acyclic Graphs [#]

Annotations are organised in graphs, which are modelled as Java sets of Annotation. Annotations may be considered as the arcs in the graph; they have a start Node and an end Node, an ID, a type and a FeatureMap. Nodes have pointers into the sources document, e.g. character offsets.

5.4.1 Annotation Schemas [#]

Annotation schemas provide a means to define types of annotations in GATE. GATE uses the XML Schema language supported by W3C for these definitions. When using GATE Developer to create/edit annotations, a component is available (gate.gui.SchemaAnnotationEditor) which is driven by an annotation schema file. This component will constrain the data entry process to ensure that only annotations that correspond to a particular schema are created. (Another component allows unrestricted annotations to be created.)

Schemas are resources just like other GATE components. Below we give some examples of such schemas. Section 3.4.6 describes how to create new schemas. Note that each schema file defines a single annotation type, however it is possible to use include definitions in a schema to refer to other schemas in order to load a whole set of schemas as a group. The default schemas for ANNIE annotation types (defined in resources/schema in the ANNIE plugin) give an example of this technique.

Date Schema
<?xml version="1.0"?>
 <!-- XSchema deffinition for Date-->
  <element name="Date">
      <attribute name="kind"  use="optional">
          <restriction base="string">
            <enumeration value="date"/>
            <enumeration value="time"/>
            <enumeration value="dateTime"/>

Person Schema
<?xml version="1.0"?>
    <!-- XSchema definition for Person-->
    <element name="Person" />

Address Schema
<?xml version="1.0"?> <schema
    <!-- XSchema definition for Address-->
    <element name="Address">
        <attribute name="kind"  use="optional">
            <restriction base="string">
              <enumeration value="email"/>
              <enumeration value="url"/>
              <enumeration value="phone"/>
              <enumeration value="ip"/>
              <enumeration value="street"/>
              <enumeration value="postcode"/>
              <enumeration value="country"/>
              <enumeration value="complete"/>

5.4.2 Examples of Annotated Documents [#]

This section shows some simple examples of annotated documents.

This material is adapted from [Grishman 97], the TIPSTER Architecture Design document upon which GATE version 1 was based. Version 2 has a similar model, although annotations are now graphs, and instead of multiple spans per annotation each annotation now has a single start/end node pair. The current model is largely compatible with [Bird & Liberman 99], and roughly isomorphic with "stand-off markup" as latterly adopted by the SGML/XML community.

Each example is shown in the form of a table. At the top of the table is the document being annotated; immediately below the line with the document is a ruler showing the position (byte offset) of each character (see TIPSTER Architecture Design Document).

Underneath this appear the annotations, one annotation per line. For each annotation is shown its Id, Type, Span (start/end offsets derived from the start/end nodes), and Features. Integers are used as the annotation Ids. The features are shown in the form name = value.

The first example shows a single sentence and the result of three annotation procedures: tokenization with part-of-speech assignment, name recognition, and sentence boundary recognition. Each token has a single feature, its part of speech (pos), using the tag set from the University of Pennsylvania Tree Bank; each name also has a single feature, indicating the type of name: person, company, etc.


Cyndi savoredthe soup.



IdType SpanStartSpan EndFeatures

1 token 0 5 pos=NP

2 token 6 13 pos=VBD

3 token 14 17 pos=DT

4 token 18 22 pos=NN

5 token 22 23

6 name 0 5 name_type=person

7 sentence0 23

Table 5.1: Result of annotation on a single sentence

Annotations will typically be organized to describe a hierarchical decomposition of a text. A simple illustration would be the decomposition of a sentence into tokens. A more complex case would be a full syntactic analysis, in which a sentence is decomposed into a noun phrase and a verb phrase, a verb phrase into a verb and its complement, etc. down to the level of individual tokens. Such decompositions can be represented by annotations on nested sets of spans. Both of these are illustrated in the second example, which is an elaboration of our first example to include parse information. Each non-terminal node in the parse tree is represented by an annotation of type parse.


Cyndi savoredthe soup.



IdType SpanStartSpan EndFeatures

1 token 0 5 pos=NP

2 token 6 13 pos=VBD

3 token 14 17 pos=DT

4 token 18 22 pos=NN

5 token 22 23

6 name 0 5 name_type=person

7 sentence0 23 constituents=[1],[2],[3].[4],[5]

Table 5.2: Result of annotations including parse information

In most cases, the hierarchical structure could be recovered from the spans. However, it may be desirable to record this structure directly through a constituents feature whose value is a sequence of annotations representing the immediate constituents of the initial annotation. For the annotations of type parse, the constituents are either non-terminals (other annotations in the parse group) or tokens. For the sentence annotation, the constituents feature points to the constituent tokens. A reference to another annotation is represented in the table as "[ Annotation Id]"; for example, "[3]" represents a reference to annotation 3. Where the value of an feature is a sequence of items, these items are separated by commas. No special operations are provided in the current architecture for manipulating constituents. At a less esoteric level, annotations can be used to record the overall structure of documents, including in particular documents which have structured headers, as is shown in the third example (Table 5.3).


To: All Barnyard Animals


From: Chicken Little


Date: November 10,1194


Subject: Descending Firmament


Priority: Urgent


The sky is falling. The sky is falling.



IdType SpanStartSpan EndFeatures

1 Addressee4 24

2 Source 31 45

3 Date 53 69 ddmmyy=101194

4 Subject 78 98

5 Priority 109 115

6 Body 116 155

7 Sentence 116 135

8 Sentence 136 155

Table 5.3: Annotation showing overall document structure

If the Addressee, Source, ... annotations are recorded when the document is indexed for retrieval, it will be possible to perform retrieval selectively on information in particular fields. Our final example (Table 5.4) involves an annotation which effectively modifies the document. The current architecture does not make any specific provision for the modification of the original text. However, some allowance must be made for processes such as spelling correction. This information will be recorded as a correction feature on token annotations and possibly on name annotations:


Topster tackles 2 terrorbytes.



IdTypeSpanStartSpan EndFeatures

1 token0 7 pos=NP correction=TIPSTER

2 token8 15 pos=VBZ

3 token16 17 pos=CD

4 token18 29 pos=NNS correction=terabytes

5 token29 30

Table 5.4: Annotation modifying the document

5.4.3 Creating, Viewing and Editing Diverse Annotation Types [#]

Note that annotation types should consist of a single word with no spaces. Otherwise they may not be recognised by other components such as JAPE transducers, and may create problems when annotations are saved as inline (‘Save Preserving Format’ in the context menu).

To view and edit annotation types, see Section 3.4. To add annotations of a new type, see Section 3.4.5. To add a new annotation schema, see Section 3.4.6.

5.5 Document Formats [#]

The following document formats are supported by GATE by default:

Additional formats are provided by plugins – you must load the relevant plugin before attempting to parse these document types

By default GATE will try and identify the type of the document, then strip and convert any markup into GATE’s annotation format. To disable this process, set the markupAware parameter on the document to false.

When reading a document of one of these types, GATE extracts the text between tags (where such exist) and create a GATE annotation filled as follows:

The name of the tag will constitute the annotation’s type, all the tags attributes will materialize in the annotation’s features and the annotation will span over the text covered by the tag. A few exceptions of this rule apply for the RTF, Email and Plain Text formats, which will be described later in the input section of these formats.

The text between tags is extracted and appended to the GATE document’s content and all annotations created from tags will be placed into a GATE annotation set named ‘Original markups’.


If the markup is like this:

<aTagName attrib1="value1" attrib2="value2" attrib3="value3"> A
piece of text</aTagName>

then the annotation created by GATE will look like:

annotation.type = "aTagName";
annotation.fm = {attrib1=value1;atrtrib2=value2;attrib3=value3};
annotation.start = startNode;
annotation.end = endNode;

The startNode and endNode are created from offsets referring the beginning and the end of ‘A piece of text’ in the document’s content.

The documents supported by GATE have to be in one of the encodings accepted by Java. The most popular is the ‘UTF-8’ encoding which is also the most storage efficient one for UNICODE. If, when loading a document in GATE the encoding parameter is set to ‘’(the empty string), then the default encoding of the platform will be used.

5.5.1 Detecting the Right Reader [#]

In order to successfully apply the document creation algorithm described above, GATE needs to detect the proper reader to use for each document format. If the user knows in advance what kind of document they are loading then they can specify the MIME type (e.g. text/html) using the init parameter mimeType, and GATE will respect this. If an explicit type is not given, GATE attempts to determine the type by other means, taking into consideration (where possible) the information provided by three sources:

The first represents the extension of a file like (xml,htm,html,txt,sgm,rtf, etc), the second represents the HTTP information sent by a web server regarding the content type of the document being send by it (text/html; text/xml, etc), and the third one represents certain sequences of chars which are ultimately number sequences. GATE is capable of supporting multimedia documents, if the right reader is added to the framework. Sometimes, multimedia documents are identified by a signature consisting in a sequence of numbers. Inside GATE they are called magic numbers. For textual documents, certain char sequences form such magic numbers. Examples of magic numbers sequences will be provided in the Input section of each format supported by GATE.

All those tests are applied to each document read, and after that, a voting mechanism decides what is the best reader to associate with the document. There is a degree of priority for all those tests. The document’s extension test has the highest priority. If the system is in doubt which reader to choose, then the one associated with document’s extension will be selected. The next higher priority is given to the web server’s content type and the third one is given to the magic numbers detection. However, any two tests that identify the same mime type, will have the highest priority in deciding the reader that will be used. The web server test is not always successful as there might be documents that are loaded from a local file system, and the magic number detection test is not always applicable. In the next paragraphs we will se how those tests are performed and what is the general mechanism behind reader detection.

The method that detects the proper reader is a static one, and it belongs to the gate.DocumentFormat class. It uses the information stored in the maps filled by the init() method of each reader. This method comes with three signatures:

1static public DocumentFormat getDocumentFormat( gate.Document
2aGateDocument, URL url)
4static public DocumentFormat getDocumentFormat(gate.Document
5aGateDocument, String fileSuffix)
7static public DocumentFormat getDocumentFormat(gate.Document
8aGateDocument, MimeType mimeType)

The first two methods try to detect the right MimeType for the GATE document, and after that, they call the third one to return the reader associate with a MimeType. Of course, if an explicit mimeType parameter was specified, GATE calls the third form of the method directly, passing the specified type. GATE uses the implementation from ‘http://jigsaw.w3.org’ for mime types.

The magic numbers test is performed using the information form
magic2mimeTypeMap map. Each key from this map, is searched in the first bufferSize (the default value is 2048) chars of text. The method that does this is called
runMagicNumbers(InputStreamReader aReader) and it belongs to DocumentFormat class. More details about it can be found in the GATE API documentation.

In order to activate a reader to perform the unpacking, the creole definition of a GATE document defines a parameter called ‘markupAware’ initialized with a default value of true. This parameter, forces GATE to detect a proper reader for the document being read. If no reader is found, the document’s content is load and presented to the user, just like any other text editor (this for textual documents).

You can also use Tika format auto-detection by setting the mimeType of a document to "application/tika". Then the document will be parsed only by Tika.

The next subsections investigates particularities for each format and will describe the file extensions registered with each document format.

5.5.2 XML [#]

Input [#]

GATE permits the processing of any XML document and offers support for XML namespaces. It benefits the power of Apache’s Xerces parser and also makes use of Sun’s JAXP layer. Changing the XML parser in GATE can be achieved by simply replacing the value of a Java system property (‘javax.xml.parsers.SAXParserFactory’).

GATE will accept any well formed XML document as input. Although it has the possibility to validate XML documents against DTDs it does not do so because the validating procedure is time consuming and in many cases it issues messages that are annoying for the user.

There is an open problem with the general approach of reading XML, HTML and SGML documents in GATE. As we previously said, the text covered by tags/elements is appended to the GATE document content and a GATE annotation refers to this particular span of text. When appending, in cases such as ‘end.</P><P>Start’ it might happen that the ending word of the previous annotation is concatenated with the beginning phrase of the annotation currently being created, resulting in a garbage input for GATE processing resources that operate at the text surface.

Let’s take another example in order to better understand the problem:

<title>This is a title</title><p>This is a paragraph</p><a
href="#link">Here is an useful link</a>

When the markup is transformed to annotations, it is likely that the text from the document’s content will be as follows:

This is a titleThis is a paragraphHere is an useful link

The annotations created will refer the right parts of the texts but for the GATE’s processing resources like (tokenizer, gazetteer, etc) which work on this text, this will be a major disaster. Therefore, in order to prevent this problem from happening, GATE checks if it’s likely to join words and if this happens then it inserts a space between those words. So, the text will look like this after loaded in GATE Developer:

This is a title This is a paragraph Here is an useful link

There are cases when these words are meant to be joined, but they are rare. This is why it’s an open problem.

The extensions associate with the XML reader are:

The web server content type associate with xml documents is: text/xml.

The magic numbers test searches inside the document for the XML(<?xml version="1.0") signature. It is also able to detect if the XML document uses the semantics described in the GATE document format DTD (see 5.5.2 below) or uses other semantics.

Namespace handling

By default, GATE will retain the namespace prefix and namespace URIs of XML elements when creating annotations and features within the Original markups annotation set. For example, the element

<dc:title xmlns:dc="http://purl.org/dc/elements/1.1/">Document title</dc:title>

will create the following annotation


However, as the colon character ’:’ is a reserved meta-character in JAPE, it is not possible to write a JAPE rule that will match the dc:title element or its namespace URI.

If you need to match namespace-prefixed elements in the Original markups AS, you can alter the default namespace deserialization behaviour to remove the namespace prefix and add it as a feature (along with the namespace URI), by specifying the following attributes in the <GATECONFIG> element of gate.xml or local configuration file:


namespacePrefix="prefix" />

For example

<dc:title>Document title</dc:title>

would create in Original markups AS (assuming the xmlns:dc URI has defined in the document root or parent element)

title(prefix=dc, namespace=http://purl.org/dc/elements/1.1/)

If a JAPE rule is written to create a new annotation, e.g.

description(prefix=foo, namespace=http://www.example.org/)

then these would be serialized to

<dc:title xmlns:dc="http://purl.org/dc/elements/1.1/">Document title</dc:title>
<foo:description xmlns:foo="http://www.example.org/">...</foo:description>

when using the ’Save preserving document format’ XML output option (see 5.5.2 below).

Output [#]

GATE is capable of ensuring persistence for its resources. The types of persistent storage used for Language Resources are:

We describe the latter case here.

XML persistence doesn’t necessarily preserve all the objects belonging to the annotations, documents or corpora. Their features can be of all kinds of objects, with various layers of nesting. For example, lists containing lists containing maps, etc. Serializing these arbitrary data types in XML is not a simple task; GATE does the best it can, and supports native Java types such as Integers and Booleans, but where complex data types are used, information may be lost(the types will be converted into Strings). GATE provides a full serialization of certain types of features such as collections, strings and numbers. It is possible to serialize only those collections containing strings or numbers. The rest of other features are serialized using their string representation and when read back, they will be all strings instead of being the original objects. Consequences of this might be observed when performing evaluations (see Chapter 10).

When GATE outputs an XML document it may do so in one of two ways:

In the former case, the XML output will be close to the original document. In the latter case, the format is a GATE-specific one which can be read back by the system to recreate all the information that GATE held internally for the document.

In order to understand why there are two types of XML serialization, one needs to understand the structure of a GATE document. GATE allows a graph of annotations that refer to parts of the text. Those annotations are grouped under annotation sets. Because of this structure, sometimes it is impossible to save a document as XML using tags that surround the text referred to by the annotation, because tags crossover situations could appear (XML is essentially a tree-based model of information, whereas GATE uses graphs). Therefore, in order to preserve all annotations in a GATE document, a custom type of XML document was developed.

The problem of crossover tags appears with GATE’s second option (the preserve format one), which is implemented at the cost of losing certain annotations. The way it is applied in GATE is that it tries to restore the original markup and where it is possible, to add in the same manner annotations produced by GATE.

How to Access and Use the Two Forms of XML Serialization

Save as XML Option [#]

This option is available in GATE Developer in the pop-up menu associated with each language resource (document or corpus). Saving a corpus as XML is done by calling ‘Save as XML’ on each document of the corpus. This option saves all the annotations of a document together their features(applying the restrictions previously discussed), using the GateDocument.dtd :

 <!ELEMENT GateDocument (GateDocumentFeatures,
           TextWithNodes, (AnnotationSet+))>
 <!ELEMENT GateDocumentFeatures (Feature+)>
 <!ELEMENT Feature (Name, Value)>
 <!ELEMENT Name (\#PCDATA)>
 <!ELEMENT Value (\#PCDATA)>
 <!ELEMENT TextWithNodes (\#PCDATA | Node)*>
 <!ELEMENT AnnotationSet (Annotation*)>
 <!ATTLIST AnnotationSet  Name CDATA \#IMPLIED>
 <!ELEMENT Annotation (Feature*)>
 <!ATTLIST Annotation  Type      CDATA \#REQUIRED
                       StartNode CDATA \#REQUIRED
                       EndNode   CDATA \#REQUIRED>

The document is saved under a name chosen by the user and it may have any extension. However, the recommended extension would be ‘xml’.

Using GATE Embedded, this option is available by calling gate.Document’s toXml() method. This method returns a string which is the XML representation of the document on which the method was called.

Note: It is recommended that the string representation to be saved on the file system using the UTF-8 encoding, as the first line of the string is : <?xml version="1.0" encoding="UTF-8"?>

Example of such a GATE format document:

<?xml version="1.0" encoding="UTF-8" ?>
<!-- The document’s features-->
  <Name className="java.lang.String">MimeType</Name>
  <Value className="java.lang.String">text/plain</Value>
  <Name className="java.lang.String">gate.SourceURL</Name>
  <Value className="java.lang.String">file:/G:/tmp/example.txt</Value>
<!-- The document content area with serialized nodes -->
<Node id="0"/>A TEENAGER <Node
id="11"/>yesterday<Node id="20"/> accused his parents of cruelty
by feeding him a daily diet of chips which sent his weight
ballooning to 22st at the age of l2<Node id="146"/>.<Node
<!-- The default annotation set -->
<Annotation Type="Date" StartNode="11"
  <Name className="java.lang.String">rule2</Name>
  <Value className="java.lang.String">DateOnlyFinal</Value>
</Feature> <Feature>
  <Name className="java.lang.String">rule1</Name>
  <Value className="java.lang.String">GazDateWords</Value>
</Feature> <Feature>
  <Name className="java.lang.String">kind</Name>
  <Value className="java.lang.String">date</Value>
</Feature> </Annotation> <Annotation Type="Sentence" StartNode="0"
EndNode="147"> </Annotation> <Annotation Type="Split"
StartNode="146" EndNode="147"> <Feature>
  <Name className="java.lang.String">kind</Name>
  <Value className="java.lang.String">internal</Value>
</Feature> </Annotation> <Annotation Type="Lookup" StartNode="11"
EndNode="20"> <Feature>
  <Name className="java.lang.String">majorType</Name>
  <Value className="java.lang.String">date_key</Value>
</Feature> </Annotation>
<!-- Named annotation set -->
<AnnotationSet Name="Original markups" >
Type="paragraph" StartNode="0" EndNode="147"> </Annotation>

Note: One must know that all features that are not collections containing numbers or strings or that are not numbers or strings are discarded. With this option, GATE does not preserve those features it cannot restore back.

The Preserve Format Option This option is available in GATE Developer from the popup menu of the annotations table. If no annotation in this table is selected, then the option will restore the document’s original markup. If certain annotations are selected, then the option will attempt to restore the original markup and insert all the selected ones. When an annotation violates the crossed over condition, that annotation is discarded and a message is issued.

This option makes it possible to generate an XML document with tags surrounding the annotation’s referenced text and features saved as attributes. All features which are collections, strings or numbers are saved, and the others are discarded. However, when read back, only the attributes under the GATE namespace (see below) are reconstructed back differently to the others. That is because GATE does not store in the XML document the information about the features class and for collections the class of the items. So, when read back, all features will become strings, except those under the GATE namespace.

One will notice that all generated tags have an attribute called ‘gateId’ under the namespace ‘http://www.gate.ac.uk’. The attribute is used when the document is read back in GATE, in order to restore the annotation’s old ID. This feature is needed because it works in close cooperation with another attribute under the same namespace, called ‘matches’. This attribute indicates annotations/tags that refer the same entity1. They are under this namespace because GATE is sensitive to them and treats them differently to all other elements with their attributes which fall under the general reading algorithm described at the beginning of this section.

The ‘gateId’ under GATE namespace is used to create an annotation which has as ID the value indicated by this attribute. The ‘matches’ attribute is used to create an ArrayList in which the items will be Integers, representing the ID of annotations that the current one matches.


If the text being processed is as follows:

<Person gate:gateId="23">John</Person> and <Person
gate:gateId="25" gate:matches="23;25;30">John Major</Person> are
the same person.

What GATE does when it parses this text is it creates two annotations:

a1.type = "Person"
a1.ID = Integer(23)
a1.start = <the start offset of
a1.end = <the end offset of John>
a1.featureMap = {}
a2.type = "Person"
a2.ID = Integer(25)
a2.start = <the start offset
of John Major>
a2.end = <the end offset of John Major>
a2.featureMap = {matches=[Integer(23); Integer(25); Integer(30)]}

Under GATE Embedded, this option is available by calling gate.Document’s toXml(Set aSetContainingAnnotations) method. This method returns a string which is the XML representation of the document on which the method was called. If called with null as a parameter, then the method will attempt to restore only the original markup. If the parameter is a set that contains annotations, then each annotation is tested against the crossover restriction, and for those found to violate it, a warning will be issued and they will be discarded.

In the next subsections we will show how this option applies to the other formats supported by GATE.

5.5.3 HTML [#]


HTML documents are parsed by GATE using the NekoHTML parser. The documents are read and created in GATE the same way as the XML documents.

The extensions associate with the HTML reader are:

The web server content type associate with html documents is: text/html.

The magic numbers test searches inside the document for the HTML(<html) signature.There are certain HTML documents that do not contain the HTML tag, so the magical numbers test might not hold.

There is a certain degree of customization for HTML documents in that GATE introduces new lines into the document’s text content in order to obtain a readable form. The annotations will refer the pieces of text as described in the original document but there will be a few extra new line characters inserted.

After reading H1, H2, H3, H4, H5, H6, TR, CENTER, LI, BR and DIV tags, GATE will introduce a new line (NL) char into the text. After a TITLE tag it will introduce two NLs. With P tags, GATE will introduce one NL at the beginning of the paragraph and one at the end of the paragraph. All newly added NLs are not considered to be part of the text contained by the tag.


The ‘Save as XML’ option works exactly the same for all GATE’s documents so there is no particular observation to be made for the HTML formats.

When attempting to preserve the original markup formatting, GATE will generate the document in xhtml. The html document will look the same with any browser after processed by GATE but it will be in another syntax.

5.5.4 SGML [#]


The SGML support in GATE is fairly light as there is no freely available Java SGML parser. GATE uses a light converter attempting to transform the input SGML file into a well formed XML. Because it does not make use of a DTD, the conversion might not be always good. It is advisable to perform a SGML2XML conversion outside the system(using some other specialized tools) before using the SGML document inside GATE.

The extensions associate with the SGML reader are:

The web server content type associate with xml documents is : text/sgml.

There is no magic numbers test for SGML.


When attempting to preserve the original markup formatting, GATE will generate the document as XML because the real input of a SGML document inside GATE is an XML one.

5.5.5 Plain text [#]


When reading a plain text document, GATE attempts to detect its paragraphs and add ‘paragraph’ annotations to the document’s ‘Original markups’ annotation set. It does that by detecting two consecutive NLs. The procedure works for both UNIX like or DOS like text files.


If the plain text read is as follows:

Paragraph 1. This text belongs to the first paragraph.
Paragraph 2. This text belongs to the second paragraph

then two ‘paragraph’ type annotation will be created in the ‘Original markups’ annotation set (referring the first and second paragraphs ) with an empty feature map.

The extensions associate with the plain text reader are:

The web server content type associate with plain text documents is: text/plain.

There is no magic numbers test for plain text.


When attempting to preserve the original markup formatting, GATE will dump XML markup that surrounds the text refereed.

The procedure described above applies both for plain text and RTF documents.

5.5.6 RTF [#]


Accessing RTF documents is performed by using the Java’s RTF editor kit. It only extracts the document’s text content from the RTF document.

The extension associate with the RTF reader is ‘rtf’.

The web server content type associate with xml documents is : text/rtf.

The magic numbers test searches for {∖∖rtf1.


Same as the plain tex output.

5.5.7 Email [#]


GATE is able to read email messages packed in one document (UNIX mailbox format). It detects multiple messages inside such documents and for each message it creates annotations for all the fields composing an e-mail, like date, from, to, subject, etc. The message’s body is analyzed and a paragraph detection is performed (just like in the plain text case) . All annotation created have as type the name of the e-mail’s fields and they are placed in the Original markup annotation set.


From someone@zzz.zzz.zzz Wed Sep  6 10:35:50 2000
Date: Wed, 6 Sep2000 10:35:49 +0100 (BST)
From: forename1 surname2 <someone1@yyy.yyy.xxx>
To: forename2 surname2 <someone2@ddd.dddd.dd.dd>
Subject: A subject
Message-ID: <Pine.SOL.3.91.1000906103251.26010A-100000@servername>
MIME-Version: 1.0
Content-Type: TEXT/PLAIN; charset=US-ASCII
This text belongs to the e-mail body....
This is a paragraph in the body of the e-mail
This is another paragraph.

GATE attempts to detect lines such as ‘From someone@zzz.zzz.zzz Wed Sep 6 10:35:50 2000’ in the e-mail text. Those lines separate e-mail messages contained in one file. After that, for each field in the e-mail message annotations are created as follows:

The annotation type will be the name of the field, the feature map will be empty and the annotation will span from the end of the field until the end of the line containing the e-mail field.


a1.type = "date" a1 spans between the two ^ ^. Date:^ Wed,
6Sep2000 10:35:49 +0100 (BST)^
a2.type = "from"; a2 spans between the two ^ ^. From:^ forename1
surname2 <someone1@yyy.yyy.xxx>^

The extensions associated with the email reader are:

The web server content type associate with plain text documents is: text/email.

The magic numbers test searches for keywords like Subject:,etc.


Same as plain text output.

5.5.8 PDF Files and Office Documents [#]

GATE uses the Apache Tika library to provide support for PDF documents and a number of the document formats from both Microsoft Office and OpenOffice. In essense Tika converts the document structure into HTML which is then used to create a GATE document. This means that whilst a PDF or Word document may have been loaded the “Original markups” set will contain HTML elements. One advantage of this approach is that processing resources and JAPE grammars designed for use with HTML files should also work well with PDF and Office documents.

5.5.9 UIMA CAS Documents [#]

GATE can read UIMA CAS documents. The CAS stands for Common Analysis Structure. It provides a common representation to the artifact being analyzed, here a text.

The subject of analysis (SOFA), here a string, is used as the document content. Multiple sofa are concatenated. The analysis results or metadata are added as annotations when having begin and end offsets and otherwise are added as document features. The views are added as GATE annotation sets. The type system (a hierarchical annotation schema) is not currently supported.

The web server content type associate with UIMA documents is: text/xmi+xml.

The extensions are: xcas, xmicas, xmi.

The magic numbers are:

<CAS version="2">



5.5.10 CoNLL/IOB Documents [#]

GATE can read files of text annotated in the traditional CoNLL or BIO/BILOU format, typically used to represent POS tags and chunks and best known for Conference on Natural Language Learning2 tasks. The following example illustrates one sentence with POS and chunk tags (B- and I- indicate the beginning and continuation, respectively, of a chunk); the columns represent the tokens, the POS tags, and the chunk tags, and sentences are separated by blank lines.

My    PRP$  B-NP
dog   NN    I-NP
has   VBZ   B-VP
fleas NNS   B-NP
.     .     O

GATE interpets this format quite flexibly: the columns can be separated by any whitespace sequence, and the number of columns can vary. The strings from the leftmost column become strings in the document content, with spaces interposed, and Token and SpaceToken annotations (with string and length features) are created appropriately in the Original markups set).

Each blank line (empty or containing only whitespace) in the original data becomes a newline in the document content.

The tags in subsequent columns are transformed into annotations. A chunk tag (beginning with B- and followed by zero or more matching I- tags) produces an annotation whose type is determined by the rest of the tag (NP or VP in the above example, but any string with no whitespace is acceptable), with a kind = chunk feature. A chunk tag beginning with L- (last) terminates the chunk, and a U- (unigram) tag produces a chunk annotation over one token. Other tags produce annotations with the tag name as the type and a kind = token feature.

Every annotation derived from a tag has a column feature whose int value indicates the source column in the data (numbered from 0 for the string column). An “O” tag closes all open chunk tags at the end of the previous token.

This document format is associated with MIME-type text/x-conll and filename extensions .conll and .iob.

5.6 XML Input/Output [#]

Support for input from and output to XML is described in Section 5.5.2. In short:

When using GATE Embedded, object representations of XML documents such as DOM or jDOM, or query and transformation languages such as X-Path or XSLT, may be used in parallel with GATE’s own Document representation (gate.Document) without conflicts.

Chapter 6
ANNIE: a Nearly-New Information Extraction System [#]

And so the time had passed predictably and soberly enough in work and routine chores, and the events of the previous night from first to last had faded; and only now that both their days’ work was over, the child asleep and no further disturbance anticipated, did the shadowy figures from the masked ball, the melancholy stranger and the dominoes in red, revive; and those trivial encounters became magically and painfully interfused with the treacherous illusion of missed opportunities. Innocent yet ominous questions and vague ambiguous answers passed to and fro between them; and, as neither of them doubted the other’s absolute candour, both felt the need for mild revenge. They exaggerated the extent to which their masked partners had attracted them, made fun of the jealous stirrings the other revealed, and lied dismissively about their own. Yet this light banter about the trivial adventures of the previous night led to more serious discussion of those hidden, scarcely admitted desires which are apt to raise dark and perilous storms even in the purest, most transparent soul; and they talked about those secret regions for which they felt hardly any longing, yet towards which the irrational wings of fate might one day drive them, if only in their dreams. For however much they might belong to one another heart and soul, they knew last night was not the first time they had been stirred by a whiff of freedom, danger and adventure.

Dream Story, Arthur Schnitzler, 1926 (pp. 4-5).

GATE was originally developed in the context of Information Extraction (IE) R&D, and IE systems in many languages and shapes and sizes have been created using GATE with the IE components that have been distributed with it (see [Maynard et al. 00] for descriptions of some of these projects).1

GATE is distributed with an IE system called ANNIE, A Nearly-New IE system (developed by Hamish Cunningham, Valentin Tablan, Diana Maynard, Kalina Bontcheva, Marin Dimitrov and others). ANNIE relies on finite state algorithms and the JAPE language (see Chapter 8).

ANNIE components form a pipeline which appears in figure 6.1.


Figure 6.1: ANNIE and LaSIE

ANNIE components are included with GATE (though the linguistic resources they rely on are generally more simple than the ones we use in-house). The rest of this chapter describes these components.

6.1 Document Reset [#]

The document reset resource enables the document to be reset to its original state, by removing all the annotation sets and their contents, apart from the one containing the document format analysis (Original Markups). An optional parameter, keepOriginalMarkupsAS, allows users to decide whether to keep the Original Markups AS or not while reseting the document. The parameter annotationTypes can be used to specify a list of annotation types to remove from all the sets instead of the whole sets.

Alternatively, if the parameter setsToRemove is not empty, the other parameters except annotationTypes are ignored and only the annotation sets specified in this list will be removed. If annotationTypes is also specified, only those annotation types in the specified sets are removed. In order to specify that you want to reset the default annotation set, just click the "Add" button without entering a name – this will add <null> which denotes the default annotation set. This resource is normally added to the beginning of an application, so that a document is reset before an application is rerun on that document.

6.2 Tokeniser [#]

The tokeniser splits the text into very simple tokens such as numbers, punctuation and words of different types. For example, we distinguish between words in uppercase and lowercase, and between certain types of punctuation. The aim is to limit the work of the tokeniser to maximise efficiency, and enable greater flexibility by placing the burden on the grammar rules, which are more adaptable.

6.2.1 Tokeniser Rules

A rule has a left hand side (LHS) and a right hand side (RHS). The LHS is a regular expression which has to be matched on the input; the RHS describes the annotations to be added to the AnnotationSet. The LHS is separated from the RHS by ‘>’. The following operators can be used on the LHS:

| (or)
* (0 or more occurrences)
? (0 or 1 occurrences)
+ (1 or more occurrences)

The RHS uses ‘;’ as a separator, and has the following format:

{LHS} > {Annotation type};{attribute1}={value1};...;{attribute
n}={value n}

Details about the primitive constructs available are given in the tokeniser file (DefaultTokeniser.Rules).

The following tokeniser rule is for a word beginning with a single capital letter:


It states that the sequence must begin with an uppercase letter, followed by zero or more lowercase letters. This sequence will then be annotated as type ‘Token’. The attribute ‘orth’ (orthography) has the value ‘upperInitial’; the attribute ‘kind’ has the value ‘word’.

6.2.2 Token Types

In the default set of rules, the following kinds of Token and SpaceToken are possible:


A word is defined as any set of contiguous upper or lowercase letters, including a hyphen (but no other forms of punctuation). A word also has the attribute ‘orth’, for which four values are defined:


A number is defined as any combination of consecutive digits. There are no subdivisions of numbers.


Two types of symbol are defined: currency symbol (e.g. ‘$’, ‘£’) and symbol (e.g. ‘&’, ‘ˆ  ’). These are represented by any number of consecutive currency or other symbols (respectively).


Three types of punctuation are defined: start_punctuation (e.g. ‘(’), end_punctuation (e.g. ‘)’), and other punctuation (e.g. ‘:’). Each punctuation symbol is a separate token.


White spaces are divided into two types of SpaceToken - space and control - according to whether they are pure space characters or control characters. Any contiguous (and homogeneous) set of space or control characters is defined as a SpaceToken.

The above description applies to the default tokeniser. However, alternative tokenisers can be created if necessary. The choice of tokeniser is then determined at the time of text processing.

6.2.3 English Tokeniser [#]

The English Tokeniser is a processing resource that comprises a normal tokeniser and a JAPE transducer (see Chapter 8). The transducer has the role of adapting the generic output of the tokeniser to the requirements of the English part-of-speech tagger. One such adaptation is the joining together in one token of constructs like “ ’30s”, “ ’Cause”, “ ’em”, “ ’N”, “ ’S”, “ ’s”, “ ’T”, “ ’d”, “ ’ll”, “ ’m”, “ ’re”, “ ’til”, “ ve”, etc. Another task of the JAPE transducer is to convert negative constructs like “don’t” from three tokens (“don”, “ ’ “ and “t”) into two tokens (“do” and “n’t”).

The English Tokeniser should always be used on English texts that need to be processed afterwards by the POS Tagger.

6.3 Gazetteer [#]

The role of the gazetteer is to identify entity names in the text based on lists. The ANNIE gazetteer is described here, and also covered in Chapter 13 in Section 13.2.

The gazetteer lists used are plain text files, with one entry per line. Each list represents a set of names, such as names of cities, organisations, days of the week, etc.

Below is a small section of the list for units of currency:

European Currency Units
German mark
German marks
New Taiwan dollar
New Taiwan dollars
NT dollar
NT dollars

An index file (lists.def) is used to access these lists; for each list, a major type is specified and, optionally, a minor type. It is also possible to include a language in the same way (fourth column), where lists for different languages are used, though ANNIE is only concerned with monolingual recognition. By default, the Gazetteer PR creates a Lookup annotation for every gazetteer entry it finds in the text. One can also specify an annotation type (fifth column) specific to an individual list. In the example below, the first column refers to the list name, the second column to the major type, and the third to the minor type.

These lists are compiled into finite state machines. Any text tokens that are matched by these machines will be annotated with features specifying the major and minor types. Grammar rules then specify the types to be identified in particular circumstances. Each gazetteer list should reside in the same directory as the index file.


So, for example, if a specific day needs to be identified, the minor type ‘day’ should be specified in the grammar, in order to match only information about specific days; if any kind of date needs to be identified,the major type ‘date’ should be specified, to enable tokens annotated with any information about dates to be identified. More information about this can be found in the following section.

In addition, the gazetteer allows arbitrary feature values to be associated with particular entries in a single list. ANNIE does not use this capability, but to enable it for your own gazetteers, set the optional gazetteerFeatureSeparator parameter to a single character (or an escape sequence such as \t or \uNNNN) when creating a gazetteer. In this mode, each line in a .lst file can have feature values specified, for example, with the following entry in the index file:


the following software_company.lst:

Red Hat&stockSymbol=RHAT
Apple Computer&abbrev=Apple&stockSymbol=AAPL

and gazetteerFeatureSeparator set to &, the gazetteer will annotate Red Hat as a Lookup with features majorType=company, minorType=software and stockSymbol=RHAT. Note that you do not have to provide the same features for every line in the file, in particular it is possible to provide extra features for some lines in the list but not others.

Here is a full list of the parameters used by the Default Gazetteer:

Init-time parameters

A URL pointing to the index file (usually lists.def) that contains the list of pattern lists.
The character encoding to be used while reading the pattern lists.
The character used to add arbitrary features to gazetteer entries. See above for an example.
Should the gazetteer be case sensitive during matching.

Run-time parameters

The document to be processed.
The name for annotation set where the resulting Lookup annotations will be created.
Should the gazetteer only match whole words? If set to true, a string segment in the input document will only be matched if it is bordered by characters that are not letters, non spacing marks, or combining spacing marks (as identified by the Unicode standard).
Should the gazetteer only match the longest possible string starting from any position. This parameter is only relevant when the list of lookups contains proper prefixes of other entries (e.g when both ‘Dell’ and ‘Dell Europe’ are in the lists). The default behaviour (when this parameter is set to true) is to only match the longest entry, ‘Dell Europe’ in this example. This is the default GATE gazetteer behaviour since version 2.0. Setting this parameter to false will cause the gazetteer to match all possible prefixes.

6.4 Sentence Splitter [#]

The sentence splitter is a cascade of finite-state transducers which segments the text into sentences. This module is required for the tagger. The splitter uses a gazetteer list of abbreviations to help distinguish sentence-marking full stops from other kinds.

Each sentence is annotated with the type ‘Sentence’. Each sentence break (such as a full stop) is also given a ‘Split’ annotation. It has a feature ‘kind’ with two possible values: ‘internal’ for any combination of exclamation and question mark or one to four dots and ‘external’ for a newline.

The sentence splitter is domain and application-independent.

There is an alternative ruleset for the Sentence Splitter which considers newlines and carriage returns differently. In general this version should be used when a new line on the page indicates a new sentence). To use this alternative version, simply load the main-single-nl.jape from the default location instead of main.jape (the default file) when asked to select the location of the grammar file to be used.

6.5 RegEx Sentence Splitter [#]

The RegEx sentence splitter is an alternative to the standard ANNIE Sentence Splitter. Its main aim is to address some performance issues identified in the JAPE-based splitter, mainly do to with improving the execution time and robustness, especially when faced with irregular input.

As its name suggests, the RegEx splitter is based on regular expressions, using the default Java implementation.

The new splitter is configured by three files containing (Java style, see http://java.sun.com/j2se/1.5.0/docs/api/java/util/regex/Pattern.html) regular expressions, one regex per line. The three different files encode patterns for:

internal splits
sentence splits that are part of the sentence, such as sentence ending punctuation;
external splits
sentence splits that are NOT part of the sentence, such as 2 consecutive new lines;
non splits
text fragments that might be seen as splits but they should be ignored (such as full stops occurring inside abbreviations).

The new splitter comes with an initial set of patterns that try to emulate the behaviour of the original splitter (apart from the situations where the original one was obviously wrong, like not allowing sentences to start with a number).

Here is a full list of the parameters used by the RegEx Sentence Splitter:

Init-time parameters

The character encoding to be used while reading the pattern lists.
URL for the file containing the list of external split patterns;
URL for the file containing the list of internal split patterns;
URL for the file containing the list of non split patterns;

Run-time parameters

The document to be processed.
The name for annotation set where the resulting Split and Sentence annotations will be created.

6.6 Part of Speech Tagger [#]

The tagger [Hepple 00] is a modified version of the Brill tagger, which produces a part-of-speech tag as an annotation on each word or symbol. The list of tags used is given in Appendix G. The tagger uses a default lexicon and ruleset (the result of training on a large corpus taken from the Wall Street Journal). Both of these can be modified manually if necessary. Two additional lexicons exist - one for texts in all uppercase (lexicon_cap), and one for texts in all lowercase (lexicon_lower). To use these, the default lexicon should be replaced with the appropriate lexicon at load time. The default ruleset should still be used in this case.

The ANNIE Part-of-Speech tagger requires the following parameters.

If - (inputASName == outputASName) AND (outputAnnotationType == baseTokenAnnotationType)

then - New features are added on existing annotations of type ‘baseTokenAnnotationType’.

otherwise - Tagger searches for the annotation of type ‘outputAnnotationType’ under the ‘outputASName’ annotation set that has the same offsets as that of the annotation with type ‘baseTokenAnnotationType’. If it succeeds, it adds new feature on a found annotation, and otherwise, it creates a new annotation of type ‘outputAnnotationType’ under the ‘outputASName’ annotation set.

6.7 Semantic Tagger [#]

ANNIE’s semantic tagger is based on the JAPE language – see Chapter 8. It contains rules which act on annotations assigned in earlier phases, in order to produce outputs of annotated entities.

The default annotation types, features and possible values produced by ANNIE are based on the original MUC entity types, and are as follows:

Note that some of these feature values are generated automatically from the gazetteer lists, so if you alter the gazetteer list definition file, these could change. Note also that other annotations, features and values are also created by ANNIE which may be left for debugging purposes: for example, most annotations have a rule feature that gives information about which rule(s) fired to create the annotation. The Unknown annotation type is used by the Orthomatcher module (see 6.8) and consists of any proper noun not already identified.

6.8 Orthographic Coreference (OrthoMatcher) [#]

(Note: this component was previously known as a ‘NameMatcher’.)

The Orthomatcher module adds identity relations between named entities found by the semantic tagger, in order to perform coreference. It does not find new named entities as such, but it may assign a type to an unclassified proper name (an Unknown annotation), using the type of a matching name.

The matching rules are only invoked if the names being compared are both of the same type, i.e. both already tagged as (say) organisations, or if one of them is classified as ‘unknown’. This prevents a previously classified name from being recategorised.

6.8.1 GATE Interface

Input – entity annotations, with an id attribute.

Output – matches attributes added to the existing entity annotations.

6.8.2 Resources

A lookup table of aliases is used to record non-matching strings which represent the same entity, e.g. ‘IBM’ and ‘Big Blue’, ‘Coca-Cola’ and ‘Coke’. There is also a table of spurious matches, i.e. matching strings which do not represent the same entity, e.g. ‘BT Wireless’ and ‘BT Cellnet’ (which are two different organizations). The list of tables to be used is a load time parameter of the orthomatcher: a default list is set but can be changed as necessary.

6.8.3 Processing

The wrapper builds an array of the strings, types and IDs of all name annotations, which is then passed to a string comparison function for pairwise comparisons of all entries.

6.9 Pronominal Coreference [#]

The pronominal coreference module performs anaphora resolution using the JAPE grammar formalism. Note that this module is not automatically loaded with the other ANNIE modules, but can be loaded separately as a Processing Resource. The main module consists of three submodules:

The first two modules are helper submodules for the pronominal one, because they do not perform anything related to coreference resolution except the location of quoted fragments and pleonastic it occurrences in text. They generate temporary annotations which are used by the pronominal submodule (such temporary annotations are removed later).

The main coreference module can operate successfully only if all ANNIE modules were already executed. The module depends on the following annotations created from the respective ANNIE modules:

For each pronoun (anaphor) the coreference module generates an annotation of type ‘Coreference’ containing two features:

6.9.1 Quoted Speech Submodule

The quoted speech submodule identifies quoted fragments in the text being analysed. The identified fragments are used by the pronominal coreference submodule for the proper resolution of pronouns such as I, me, my, etc. which appear in quoted speech fragments. The module produces ‘Quoted Text’ annotations.

The submodule itself is a JAPE transducer which loads a JAPE grammar and builds an FSM over it. The FSM is intended to match the quoted fragments and generate appropriate annotations that will be used later by the pronominal module.

The JAPE grammar consists of only four rules, which create temporary annotations for all punctuation marks that may enclose quoted speech, such as ", ’, ‘, etc. These rules then try to identify fragments enclosed by such punctuation. Finally all temporary annotations generated during the processing, except the ones of type ‘Quoted Text’, are removed (because no other module will need them later).

6.9.2 Pleonastic It Submodule

The pleonastic it submodule matches pleonastic occurrences of ‘it’. Similar to the quoted speech submodule, it is a JAPE transducer operating with a grammar containing patterns that match the most commonly observed pleonastic it constructs.

6.9.3 Pronominal Resolution Submodule

The main functionality of the coreference resolution module is in the pronominal resolution submodule. This uses the result from the execution of the quoted speech and pleonastic it submodules. The module works according to the following algorithm:

6.9.4 Detailed Description of the Algorithm

Full details of the pronominal coreference algorithm are as follows.


The preprocessing task includes the following subtasks:

Pronoun Resolution

This task includes the following subtasks:

Retrieving all the pronouns in the document. Pronouns are represented as annotations of type ‘Token’ with feature ‘category’ having value ‘PRP$’ or ‘PRP’. The former classifies possessive adjectives such as my, your, etc. and the latter classifies personal, reflexive etc. pronouns. The two types of pronouns are combined in one list and sorted according to their offset in the text.

For each pronoun in the list the following actions are performed:

Coreference Chain Generation

This step is actually performed by the main module. After executing each of the submodules on the current document, the coreference module follows the steps:

The resolution of she, her, her$, he, him, his, herself and himself are similar because an analysis of a corpus showed that these pronouns are related to their antecedents in a similar manner. The characteristics of the resolution process are:

The resolution process performs the following steps:

Resolution of ‘it’, ‘its’, ‘itself’

This set of pronouns also shares many common characteristics. The resolution process contains certain differences with the one for the previous set of pronouns. Successful resolution for it, its, itself is more difficult because of the following factors:

Resolution of ‘I’, ‘me’, ‘my’, ‘myself’

Resolution of these pronouns is dependent on the work of the quoted speech submodule. One important difference from the resolution process of other pronouns is that the context is not measured in sentences but depends solely on the quote span. Another difference is that the context is not contiguous - the quoted fragment itself is excluded from the context, because it is unlikely that an antecedent for I, me, etc. appears there. The context itself consists of:

It is worth noting that contrary to other pronouns, the antecedent for I, me, my and myself is most often cataphoric or if anaphoric it is not in the same sentence with the quoted fragment.

The resolution algorithm consists of the following steps:

6.10 A Walk-Through Example [#]

Let us take an example of a 3-stage procedure using the tokeniser, gazetteer and named-entity grammar. Suppose we wish to recognise the phrase ‘800,000 US dollars’ as an entity of type ‘Number’, with the feature ‘money’.

First of all, we give an example of a grammar rule (and corresponding macros) for money, which would recognise this type of pattern.

({Token.string == "m"}|
{Token.string == "million"}|
{Token.string == "b"}|
{Token.string == "billion"}
({Token.kind == number}
(({Token.string == ","}|
  {Token.string == "."})
{Token.kind == number})*
(({SpaceToken.kind == space})?
Rule: Money1
// e.g. 30 pounds
      (SpaceToken.kind == space)?
      ({Lookup.majorType == currency_unit})
 :money  -->
  :money.Number = {kind = "money", rule = "Money1"}

6.10.1 Step 1 - Tokenisation

The tokeniser separates this phrase into the following tokens. In general, a word is comprised of any number of letters of either case, including a hyphen, but nothing else; a number is composed of any sequence of digits; punctuation is recognised individually (each character is a separate token), and any number of consecutive spaces and/or control characters are recognised as a single spacetoken.

Token, string = ‘800’, kind = number, length = 3
Token, string = ‘,’, kind = punctuation, length = 1
Token, string = ‘000’, kind = number, length = 3
SpaceToken, string = ‘ ’, kind = space, length = 1
Token, string = ‘US’, kind = word, length = 2, orth = allCaps
SpaceToken, string = ‘ ’, kind = space, length = 1
Token, string = ‘dollars’, kind = word, length = 7, orth = lowercase

6.10.2 Step 2 - List Lookup

The gazetteer lists are then searched to find all occurrences of matching words in the text. It finds the following match for the string ‘US dollars’:

Lookup, minorType = post_amount, majorType = currency_unit

6.10.3 Step 3 - Grammar Rules

The grammar rule for money is then invoked. The macro MILLION_BILLION recognises any of the strings ‘m’, ‘million’, ‘b’, ‘billion’. Since none of these exist in the text, it passes onto the next macro. The AMOUNT_NUMBER macro recognises a number, optionally followed by any number of sequences of the form‘dot or comma plus number’, followed by an optional space and an optional MILLION_BILLION. In this case, ‘800,000’ will be recognised. Finally, the rule Money1 is invoked. This recognises the string identified by the AMOUNT_NUMBER macro, followed by an optional space, followed by a unit of currency (as determined by the gazetteer). In this case, ‘US dollars’ has been identified as a currency unit, so the rule Money1 recognises the entire string ‘800,000 US dollars’. Following the rule, it will be annotated as a Number entity of type Money:

 Number, kind = money, rule = Money1

Part II
GATE for Advanced Users [#]

Chapter 7
GATE Embedded [#]

7.1 Quick Start with GATE Embedded [#]

Embedding GATE-based language processing in other applications using GATE Embedded (the GATE API) is straightforward:

For example, this code will create the default ANNIE extraction system, the same as the “load ANNIE” button in GATE Developer:

1  // initialise the GATE library
2  Gate.init();
4  // load the ANNIE plugin
5  Plugin anniePlugin = new Plugin.Maven(
6        "uk.ac.gate.plugins", "annie", gate.Main.version);
7  Gate.getCreoleRegister().registerPlugin(anniePlugin);
9  // load ANNIE application from inside the plugin
10  SerialAnalyserController controller = (SerialAnalyserController)
11    PersistenceManager.loadObjectFromUrl(new ResourceReference(
12      anniePlugin, "resources/" + ANNIEConstants.DEFAULT_FILE)
13        .toURL());

If you want to use resources from any plugins, you need to load the plugins before calling createResource:

1  Gate.init();
3  // need Tools plugin for the Morphological analyser
4  Gate.getCreoleRegister().registerPlugin(new Plugin.Maven(
5    "uk.ac.gate.plugins", "tools", gate.Main.version));
7  ...
9  ProcessingResource morpher = (ProcessingResource)
10    Factory.createResource("gate.creole.morph.Morph");

Instead of creating your processing resources individually using the Factory, you can create your application in GATE Developer, save it using the ‘save application state’ option (see Section 3.9.3), and then load the saved state from your code. This will automatically reload any plugins that were loaded when the state was saved, you do not need to load them manually.

1  Gate.init();
3  CorpusController controller = (CorpusController)
4    PersistenceManager.loadObjectFromFile(new File("savedState.xgapp"));

There are many examples of using GATE Embedded available at:

See Section 2.3 for details of the system properties GATE uses to find its configuration files.

7.2 Resource Management in GATE Embedded [#]

As outlined earlier, GATE defines three different types of resources:

Language Resources
: (LRs) entities that hold linguistic data.
Processing Resources
: (PRs) entities that process data.
Visual Resources
: (VRs) components used for building graphical interfaces.

These resources are collectively named CREOLE1 resources.

All CREOLE resources have some associated meta-data in the form of annotations on the resource class and some of its methods. The most important role of that meta-data is to specify the set of parameters that a resource understands, which of them are required and which not, if they have default values and what those are. See Section 4.7 for full details of the configuration mechanism.

All resource types have creation-time parameters that are used during the initialisation phase. Processing Resources also have run-time parameters that get used during execution (see Section 7.5 for more details).

Controllers are used to define GATE applications and have the role of controlling the execution flow (see Section 7.6 for more details).

This section describes how to create and delete CREOLE resources as objects in a running Java virtual machine. This process involves using GATE’s Factory class2, and, in the case of LRs, may also involve using a DataStore.

CREOLE resources are Java Beans; creation of a resource object involves using a default constructor, then setting parameters on the bean, then calling an init() method. The Factory takes care of all this, makes sure that the GATE Developer GUI is told about what is happening (when GUI components exist at runtime), and also takes care of restoring LRs from DataStores. A programmer using GATE Embedded should never call the constructor of a resource: always use the Factory!

Creating a resource involves providing the following information:

  Parameters and features need to be provided in the form of a GATE Feature Map which is essentially a java Map (java.util.Map) implementation, see Section 7.4.2 for more details on Feature Maps.

Creating a resource via the Factory involves passing values for any create-time parameters that require setting to the Factory’s createResource method. If no parameters are passed, the defaults are used. So, for example, the following code creates a default ANNIE part-of-speech tagger:

1Gate.getCreoleRegister().registerPlugin(new Plugin.Maven(
2      "uk.ac.gate.plugins", "annie", gate.Main.version));
3FeatureMap params = Factory.newFeatureMap(); //empty map:default params
4ProcessingResource tagger = (ProcessingResource)
5  Factory.createResource("gate.creole.POSTagger", params);

Note that if the resource created here had any parameters that were both mandatory and had no default value, the createResource call would throw an exception. In the case of the POS tagger, all the required parameters have default values so no params need to be passed in.

When creating a Document, however, the URL of the source for the document must be provided3. For example:

1URL u = new URL("https://gate.ac.uk/");
2FeatureMap params = Factory.newFeatureMap();
3params.put("sourceUrl", u);
4Document doc = (Document)
5  Factory.createResource("gate.corpora.DocumentImpl", params);

Note that the document created here is transient: when you quit the JVM the document will no longer exist. If you want the document to be persistent, you need to store it in a DataStore (see Section 7.4.5).

Apart from createResource() methods with different signatures, Factory also provides some shortcuts for common operations, listed in table 7.1.




Creates a new Feature Map (as used in the example above).

newDocument(String content)

Creates a new GATE Document starting from a String value that will be used to generate the document content.

newDocument(URL sourceUrl)

Creates a new GATE Document using the text pointed by an URL to generate the document content.

newDocument(URL sourceUrl, String encoding)

Same as above but allows the specification of an encoding to be used while downloading the document content.

newCorpus(String name)

creates a new GATE Corpus with a specified name.

Table 7.1: Factory Operations

GATE maintains various data structures that allow the retrieval of loaded resources. When a resource is no longer required, it needs to be removed from those structures in order to remove all references to it, thus making it a candidate for garbage collection. This is achieved using the deleteResource(Resource res) method on Factory.

Simply removing all references to a resource from the user code will NOT be enough to make the resource collect-able. Not calling Factory.deleteResource() will lead to memory leaks!

7.3 Using CREOLE Plugins [#]

As shown in the examples above, in order to use a CREOLE resource the relevant CREOLE plugin must be loaded. Processing Resources, Visual Resources and Language Resources other than Document, Corpus and DataStore all require that the appropriate plugin is first loaded. When using Document, Corpus or DataStore, you do not need to first load a plugin. The following API calls listed in table 7.2 are relevant to working with CREOLE plugins.

Class gate.Gate



public static void addKnownPlugin(Plugin plugin)

adds the plugin to the list of known plugins.

public static void removeKnownPlugin(Plugin plugin)

tells the system to ‘forget’ about one previously known directory. If the specified plugin was loaded, it will be unloaded as well - i.e. all the metadata relating to resources defined by this plugin will be removed from memory.

public static void addAutoloadPlugin(Plugin plugin)

adds a new plugin to the list of plugins that are loaded automatically at start-up.

public static void removeAutoloadPlugin(Plugin plugin)

tells the system to remove a plugin from the list of plugins that are loaded automatically at system start-up. This will be reflected in the user’s configuration data file.

Class gate.CreoleRegister

public void registerPlugin(Plugin plugin)

loads a new CREOLE plugin. The new plugin is added to the list of known plugins if not already there.

public void unregisterPlugin(Plugin plugin)

unloads a loaded CREOLE plugin.

Table 7.2: Calls Relevant to CREOLE Plugins

There are several different subclasses of Plugin that can be passed to these methods. The most common one is Plugin.Maven, as seen in the examples above, which is a plugin that is a single JAR file specified via its group:artifact:version “coordinates”, and which is downloaded from a Maven repository at runtime by GATE the first time the plugin is loaded. The vast majority of standard GATE plugins are of this type. To load version 8.5 of the ANNIE plugin, for example, you would use:

1Gate.getCreoleRegister().registerPlugin(new Plugin.Maven(
2      "uk.ac.gate.plugins", "annie", "8.5"));

In addition to Maven plugins, GATE still supports the style of plugins used in GATE version 8.4.1 and earlier where the plugin is a directory on disk which contains a creole.xml configuration file and optionally one or more JAR files containing the compiled classes of the plugin’s CREOLE resources. These plugins are represented by the class Plugin.Directory, with a URL pointing to the directory that contains the creole.xml file:

1Gate.getCreoleRegister().registerPlugin(new Plugin.Directory(
2      new URL("file:/home/example/my-plugins/FishCounter/"));

Finally, if you are writing a GATE Embedded application and have a single resource class that will only be used from your embedded code (and so does not need to be distributed as a complete plugin), and all the configuration for that resource is provided as Java annotations on the class, then it is possible to register the class as a special type of Plugin called a “component”:

1Gate.getCreoleRegister().registerPlugin(new Plugin.Component(
2      MySpecialPurposePR.class));

Note that components cannot be registered this way in the developer GUI, and cannot be included in saved application states (see section 7.9 below).

7.4 Language Resources [#]

This section describes the implementation of documents and corpora in GATE.

7.4.1 GATE Documents

Documents are modelled as content plus annotations (see Section 7.4.4) plus features (see Section 7.4.2).

The content of a document can be any implementation of the  gate.DocumentContent interface; the features are <attribute, value> pairs stored a Feature Map. Attributes are String values while the values can be any Java object.

The annotations are grouped in sets (see section 7.4.3). A document has a default (anonymous) annotations set and any number of named annotations sets.

Documents are defined by the gate.Document interface and there is also a provided implementation:

: transient document. Can be stored persistently through Java serialisation.

Main Document functions are presented in table 7.3.

Content Manipulation



DocumentContent getContent()

Gets the Document content.

void edit(Long start, Long end, DocumentContent replacement)

Modifies the Document content.

void setContent(DocumentContent newContent)

Replaces the entire content.

Annotations Manipulation



public AnnotationSet getAnnotations()

Returns the default annotation set.

public AnnotationSet getAnnotations(String name)

Returns a named annotation set.

public Map getNamedAnnotationSets()

Returns all the named annotation sets.

void removeAnnotationSet(String name)

Removes a named annotation set.

Input Output

String toXml()

Serialises the Document in XML format.

String toXml(Set aSourceAnnotationSet, boolean includeFeatures)

Generates XML from a set of annotations only, trying to preserve the original format of the file used to create the document.

Table 7.3: gate.Document methods.

7.4.2 Feature Maps [#]

All CREOLE resources as well as the Controllers and the annotations can have attached meta-data in the form of Feature Maps.

A Feature Map is a Java Map (i.e. it implements the java.util.Map interface) and holds <attribute-name, attribute-value> pairs. The attribute names are Strings while the values can be any Java Objects.

The use of non-Serialisable objects as values is strongly discouraged.

Feature Maps are created using the gate.Factory.newFeatureMap() method.

The actual implementation for FeatureMaps is provided by the  gate.util.SimpleFeatureMapImpl class.

Objects that have features in GATE implement the gate.util.FeatureBearer interface which has only the two accessor methods for the object features: FeatureMap getFeatures() and void setFeatures(FeatureMap features).

G¯ etting a particular feature from an object

1Object obj;
2String featureName = "length";
3if(obj instanceof FeatureBearer){
4  FeatureMap features = ((FeatureBearer)obj).getFeatures();
5  Object value = (features == null) ? null :
6                                      features.get(featureName);

7.4.3 Annotation Sets [#]

A GATE document can have one or more annotation layers — an anonymous one, (also called default), and as many named ones as necessary.

An annotation layer is organised as a Directed Acyclic Graph (DAG) on which the nodes are particular locations —anchors— in the document content and the arcs are made out of annotations reaching from the location indicated by the start node to the one pointed by the end node (see Figure 7.1 for an illustration). Because of the graph metaphor, the annotation layers are also called annotation graphs. In terms of Java objects, the annotation layers are represented using the Set paradigm as defined by the collections library and they are hence named annotation sets. The terms of annotation layer, graph and set are interchangeable and refer to the same concept when used in this book.


Figure 7.1: The Annotation Graph model.

An annotation set holds a number of annotations and maintains a series of indices in order to provide fast access to the contained annotations.

The GATE Annotation Sets are defined by the gate.AnnotationSet interface and there is a default implementation provided:

annotation set implementation used by transient documents.

The annotation sets are created by the document as required. The first time a particular annotation set is requested from a document it will be transparently created if it doesn’t exist.

Tables 7.4 and 7.5 list the most used Annotation Set functions.

Annotations Manipulation



Integer add(Long start, Long end, String type, FeatureMap features)

Creates a new annotation between two offsets, adds it to this set and returns its id.

Integer add(Node start, Node end, String type, FeatureMap features)

Creates a new annotation between two nodes, adds it to this set and returns its id.

boolean remove(Object o)

Removes an annotation from this set.




Node firstNode()

Gets the node with the smallest offset.

Node lastNode()

Gets the node with the largest offset.

Node nextNode(Node node)

Get the first node that is relevant for this annotation set and which has the offset larger than the one of the node provided.

Set implementation

Iterator iterator()

int size()

Table 7.4: gate.AnnotationSet methods (general purpose).


AnnotationSet get(Long offset)

Select annotations by offset. This returns the set of annotations whose start node is the least such that it is greater than or equal to offset. If a positional index doesn’t exist it is created. If there are no nodes at or beyond the offset parameter then it will return null.

AnnotationSet get(Long startOffset, Long endOffset)

Select annotations by offset. This returns the set of annotations that overlap totally or partially with the interval defined by the two provided offsets. The result will include all the annotations that either:

  • start before the start offset and end strictly after it
  • start at a position between the start and the end offsets

AnnotationSet get(String type)

Returns all annotations of the specified type.

AnnotationSet get(Set types)

Returns all annotations of the specified types.

AnnotationSet get(String type, FeatureMap constraints)

Selects annotations by type and features.

Set getAllTypes()

Gets a set of java.lang.String objects representing all the annotation types present in this annotation set.

AnnotationSet getContained(Long startOffset, Long endOffset)

Select annotations contained within an interval, i.e.

AnnotationSet getCovering(String neededType, Long startOffset, Long endOffset)

Select annotations of the given type that completely span the range.

Table 7.5: gate.AnnotationSet methods (searching).

¯ terating from left to right over all annotations of a given type


1AnnotationSet annSet = ...;
2String type = "Person";
3//Get all person annotations
4AnnotationSet persSet = annSet.get(type);
5//Sort the annotations
6List persList = new ArrayList(persSet);
7Collections.sort(persList, new gate.util.OffsetComparator());
9Iterator persIter = persList.iterator();

7.4.4 Annotations [#]

An annotation is a form of meta-data attached to a particular section of document content. The connection between the annotation and the content it refers to is made by means of two pointers that represent the start and end locations of the covered content. An annotation must also have a type (or a name) which is used to create classes of similar annotations, usually linked together by their semantics.

An Annotation is defined by:

start node
a location in the document content defined by an offset.
end node
a location in the document content defined by an offset.
a String value.
(see Section 7.4.2).
an Integer value. All annotations IDs are unique inside an annotation set.

In GATE Embedded, annotations are defined by the gate.Annotation interface and implemented by the gate.annotation.AnnotationImpl class. Annotations exist only as members of annotation sets (see Section 7.4.3) and they should not be directly created by means of a constructor. Their creation should always be delegated to the containing annotation set.

7.4.5 GATE Corpora [#]

A corpus in GATE is a Java List (i.e. an implementation of java.util.List) of documents. GATE corpora are defined by the gate.Corpus interface and the following implementations are available:

used for transient corpora.
used for persistent corpora that are stored in a serial datastore (i.e. as a directory in a file system).

Apart from implementation for the standard List methods, a Corpus also implements the methods in table 7.6.



String getDocumentName(int index)

Gets the name of a document in this corpus.

List getDocumentNames()

Gets the names of all the documents in this corpus.

void populate(URL directory, FileFilter filter, String encoding, boolean recurseDirectories)

Fills this corpus with documents created on the fly from selected files in a directory. Uses a FileFilter to select which files will be used and which will be ignored. A simple file filter based on extensions is provided in the Gate distribution (gate.util.ExtensionFileFilter).

void populate(URL singleConcatenatedFile, String documentRootElement, String encoding, int numberOfDocumentsToExtract, String documentNamePrefix, DocType documentType)

Fills the provided corpus with documents extracted from the provided single concatenated file. Uses the content between the start and end of the element as specified by documentRootElement for each document. The parameter documentType specifies if the resulting files are html, xml or of any other type. User can also restrict the number of documents to extract by providing the relevant value for numberOfDocumentsToExtract parameter.

Table 7.6: gate.Corpus methods.

Creating a corpus from all XML files in a directory

1Corpus corpus = Factory.newCorpus("My XML Files");
2File directory = ...;
3ExtensionFileFilter filter = new ExtensionFileFilter("XML files", "xml");
4URL url = directory.toURL();
5corpus.populate(url, filter, null, false);

Using a DataStore

Assuming that you have a DataStore already open called myDataStore, this code will ask the datastore to take over persistence of your document, and to synchronise the memory representation of the document with the disk storage:

Document persistentDoc = myDataStore.adopt(doc, mySecurity);

When you want to restore a document (or other LR) from a datastore, you make the same createResource call to the Factory as for the creation of a transient resource, but this time you tell it the datastore the resource came from, and the ID of the resource in that datastore:

1  URL u = ....; // URL of a serial datastore directory
2  SerialDataStore sds = new SerialDataStore(u.toString());
3  sds.open();
5  // getLrIds returns a list of LR Ids, so we get the first one
6  Object lrId = sds.getLrIds("gate.corpora.DocumentImpl").get(0);
8  // we need to tell the factory about the LRs ID in the data
9  // store, and about which datastore it is in  we do this
10  // via a feature map:
11  FeatureMap features = Factory.newFeatureMap();
12  features.put(DataStore.LR_ID_FEATURE_NAME, lrId);
13  features.put(DataStore.DATASTORE_FEATURE_NAME, sds);
15  // read the document back
16  Document doc = (Document)
17    Factory.createResource("gate.corpora.DocumentImpl", features);

7.5 Processing Resources [#]

Processing Resources (PRs) represent entities that are primarily algorithmic, such as parsers, generators or ngram modellers.

They are created using the GATE Factory in manner similar the Language Resources. Besides the creation-time parameters they also have a set of run-time parameters that are set by the system just before executing them.

Analysers are a particular type of processing resources in the sense that they always have a document and a corpus among their run-time parameters.

The most used methods for Processing Resources are presented in table 7.7



void setParameterValue(String paramaterName, Object parameterValue)

Sets the value for a specified parameter. method inherited from gate.Resource

void setParameterValues(FeatureMap parameters)

Sets the values for more parameters in one step. method inherited from gate.Resource

Object getParameterValue(String paramaterName)

Gets the value of a named parameter of this resource. method inherited from gate.Resource

Resource init()

Initialise this resource, and return it. method inherited from gate.Resource

void reInit()

Reinitialises the processing resource. After calling this method the resource should be in the state it is after calling init. If the resource depends on external resources (such as rules files) then the resource will re-read those resources. If the data used to create the resource has changed since the resource has been created then the resource will change too after calling reInit().

void execute()

Starts the execution of this Processing Resource.

void interrupt()

Notifies this PR that it should stop its execution as soon as possible.

boolean isInterrupted()

Checks whether this PR has been interrupted since the last time its Executable.execute() method was called.

Table 7.7: gate.ProcessingResource methods.

7.6 Controllers [#]

Controllers are used to create GATE applications. A Controller handles a set of Processing Resources and can execute them following a particular strategy. GATE provides a series of serial controllers (i.e. controllers that run their PRs in sequence):

a serial controller that takes any kind of PRs.
a serial controller that only accepts Language Analysers as member PRs.
a serial controller that accepts all types of PRs and that allows the inclusion or exclusion of member PRs from the execution chain according to certain run-time conditions (currently features on the document being processed are used).
a serial controller that only accepts Language Analysers and that allows the conditional run of member PRs.
a SerialAnalyserController that allows you to specify graceful and timeout parameters (times in milliseconds). If processing for a document takes longer than the amount of time specified for graceful, then the controller will attempt to gracefully end it by sending an interrupt request to it. If the graceful parameter is ‘-1’ then no attempt to gracefully end it is made. If processing takes longer than the amount of time specified for the timeout parameter, it will be forcibly terminated and the controller will move on to the next document. The parameter suppressExceptions controls if time-outs and other exceptions will be suppressed or passed on to the caller: if this parameter is set to ‘true’, then any exception or a timeout will simply cause the controller to move on to the next document rather than failing the entire corpus processing. If the parameter is set to ‘false’ both time-outs and exceptions will be passed on as exceptions to the caller.

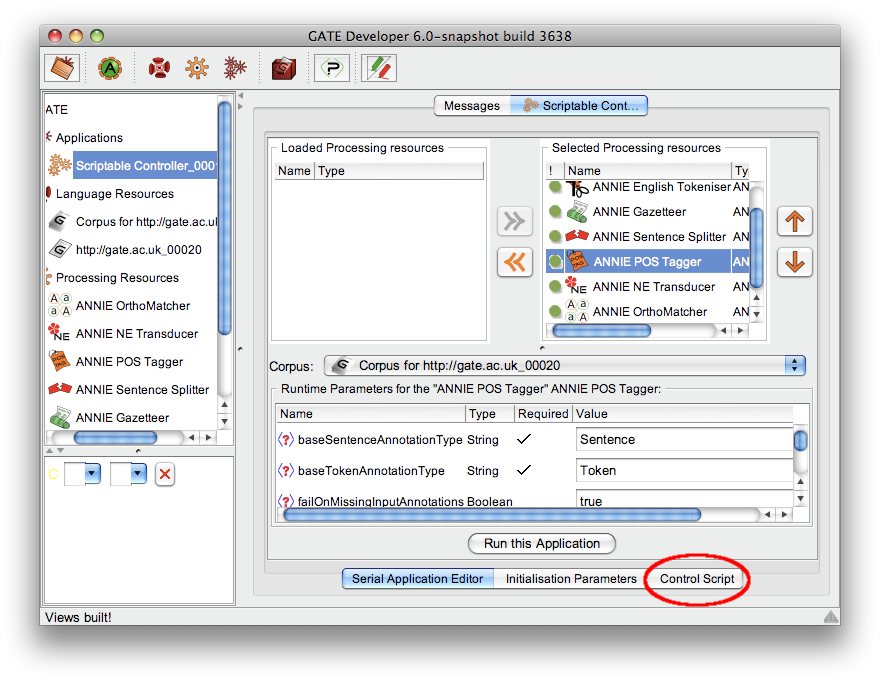

Additionally there is a scriptable controller provided by the Groovy plugin. See section 7.16.3 for details.

Creating an ANNIE application and running it over a corpus

1// load the ANNIE plugin
2Plugin anniePlugin = new Plugin.Maven(
3      "uk.ac.gate.plugins", "annie", gate.Main.version);
6// create a serial analyser controller to run ANNIE with
7SerialAnalyserController annieController =
8 (SerialAnalyserController) Factory.createResource(
9     "gate.creole.SerialAnalyserController",
10     Factory.newFeatureMap(),
11     Factory.newFeatureMap(), "ANNIE");
13// load each PR as defined in ANNIEConstants
14// Note this code is for demonstration purposes only,
15// in practice if you want to load the ANNIE app you
16// should use the PersistenceManager as shown at the
17// start of this chapter
18for(int i = 0; i < ANNIEConstants.PR_NAMES.length; i++) {
19  // use default parameters
20  FeatureMap params = Factory.newFeatureMap();
21  ProcessingResource pr = (ProcessingResource)
22      Factory.createResource(ANNIEConstants.PR_NAMES[i],
23                             params);
24  // add the PR to the pipeline controller
25  annieController.add(pr);
26} // for each ANNIE PR
28// Tell ANNIEs controller about the corpus you want to run on
29Corpus corpus = ...;
31// Run ANNIE

7.7 Modelling Relations between Annotations [#]

Most text processing tasks in GATE model metadata associated with text snippets as annotations. In some cases, however, it is useful to to have another layer of metadata, associated with the annotations themselves. One such case is the modelling of relations between annotations. One typical example of relations between annotation is that of co-reference. Two annotations of type Person may be referring to the same actual person; in this case the two annotations are said to be co-referring.

Starting with version 7.1, GATE Embedded supports the representation of relations between annotations. A relation set is associated with, and accssed via, an annotation set. All members of a relation must be either annotations from the associated annotation set or other relations within the same set. The classes supporting relations can be found in the gate.relations package.

A relation, as described by the gate.relations.Relation interface, is defined by the following values:

a unique ID that identifies the relation. IDs for both relations and annotations are generated from the same source, guaranteeing that not only is the ID unique among the relations, but also among all annotations from the same document.
a String value describing the type of the relation (e.g. ’coref’ for co-reference relations).
an int[] array, containing the annotation IDs for the annotations referred to by the relation. Note that relations are not guaranteed to be symmetric, so the ordering in the members array is relevant.
a FeatureMap that, like with Annotations, allows the storing of an arbitary set of features for the relation.
an optional Serializable value, which can be used to associate any arbitrary data with a relation.

Relation sets are modelled by the gate.relations.RelationSet class. The principal API calls published by this class include:

Included next is a simple code snippet that illustrates the RelationSet API. The function of the example code is to:

1// get the document
2Document doc = Factory.newDocument(
3    new File("documents/file.xml").toURI().toURL());
4// get the annotation set
5AnnotationSet annSet = doc.getAnnotations();
6// get the relations set
7RelationSet relSet = annSet.getRelations();
8// get all sentences
9AnnotationSet sentences = annSet.get(
11for(Annotation sentence : sentences) {
12  // get all the tokens
13  AnnotationSet tokens = annSet.get(
15      sentence.getStartNode().getOffset(),
16      sentence.getEndNode().getOffset());
17  for(Annotation token : tokens) {
18    // for each sentence and token, add the contained relation
19    relSet.addRelation("contained",
20        new int[] {token.getId(), sentence.getId()});
21  }

7.8 Duplicating a Resource [#]

Sometimes, particularly in a multi-threaded application, it is useful to be able to create an independent copy of an existing PR, controller or LR. The obvious way to do this is to call createResource again, passing the same class name, parameters, features and name, and for many resources this will do the right thing. However there are some resources for which this may be insufficient (e.g. controllers, which also need to duplicate their PRs), unsafe (if a PR uses temporary files, for instance), or simply inefficient. For example for a large gazetteer this would involve loading a second copy of the lists into memory and compiling them into a second identical state machine representation, but a much more efficient way to achieve the same behaviour would be to use a SharedDefaultGazetteer (see section 13.10), which can re-use the existing state machine.

The GATE Factory provides a duplicate method which takes an existing resource instance and creates and returns an independent copy of the resource. By default it uses the algorithm described above, extracting the parameter values from the template resource and calling createResource to create a duplicate (the actual algorithm is slightly more complicated than this, see the following section). However, if a particular resource type knows of a better way to duplicate itself it can implement the CustomDuplication interface, and provide its own duplicate method which the factory will use instead of performing the default duplication algorithm. A caller who needs to duplicate an existing resource can simply call Factory.duplicate to obtain a copy, which will be constructed in the appropriate way depending on the resource type.

Note that the duplicate object returned by Factory.duplicate will not necessarily be of the same class as the original object. However the contract of Factory.duplicate specifies that where the original object implements any of a list of core GATE interfaces, the duplicate can be assumed to implement the same ones – if you duplicate a DefaultGazetteer the result may not be an instance of DefaultGazetteer but it is guaranteed to implement the Gazetteer interface.

Full details of how to implement a custom duplicate method in your own resource type can be found in the JavaDoc documentation for the CustomDuplication interface and the Factory.duplicate method.

7.8.1 Sharable properties [#]

The @Sharable annotation (in the gate.creole.metadata package) provides a way for a resource to mark JavaBean properties whose values should be shared between a resource and its duplicates. Typical examples of objects that could be marked sharable include large or expensive-to-create data structures that are created by a resource at init time and subsequently used in a read-only fashion, a thread-safe cache of some sort, or state used to create globally unique identifiers (such as an AtomicInteger that is incremented each time a new ID is required). Clearly any ojects that are shared between different resource instances must be accessed by all instances in a way that is thread-safe or appropriately synchronized.

The sharable property must have the standard public getter and setter methods, with the @Sharable annotation applied to the setter4. The same setter may be marked both as a sharable property and as a @CreoleParameter but the two are not related – sharable properties that are not parameters and parameters that are not sharable are both allowed and both have uses in different circumstances. The use of sharable properties removes the need to implement custom duplication in many simple cases.

The default duplication algorithm in full is thus as follows:

  1. Extract the values of all init-time parameters from the original resource.
  2. Recursively duplicate any of these values that are themselves GATE Resources, except for parameters that are marked as @Sharable (i.e. parameters that are marked sharable are copied directly to the duplicate resource without being duplicated themselves).
  3. Add to this parameter map any other sharable properties of the original resource (including those that are not parameters).
  4. Extract the features of the original resource and recursively duplicate any values in this map that are themselves resources, as above.
  5. Call Factory.createResource passing the class name of the original resource, the duplicated/shared parameters and the duplicated features.
    • this will result in a call to the new resource’s init method, with all sharable properties (parameters and non-parameters) populated with their values from the old resource. The init method must recognise this and adapt its behaviour appropriately, i.e. not re-creating sharable data structures that have already been injected.
  6. If the original resource is a PR, extract its runtime parameter values (except those that are marked as sharable, which have already been dealt with above), and recursively duplicate any resource values in the map.
  7. Set the resulting runtime parameter values on the duplicate resource.

The duplication process keeps track of any recursively-duplicated resources, such that if the same original resource is used in several places (e.g. when duplicating a controller with several JAPE transducer PRs that all refer to the same ontology LR in their runtime parameters) then the same duplicate (ontology) will be used in the same places in the duplicated resource (i.e. all the duplicate transducers will refer to the same ontology LR, which will be a duplicate of the original one).

7.9 Persistent Applications [#]

GATE Embedded allows the persistent storage of applications in a format based on XML serialisation. This is particularly useful for applications management and distribution. A developer can save the state of an application when he/she stops working on its design and continue developing it in a next session. When the application reaches maturity it can be deployed to the client site using the same method.

When an application (i.e. a Controller) is saved, GATE will actually only save the values for the parameters used to create the Processing Resources that are contained in the application. When the application is reloaded, all the PRs will be re-created using the saved parameters.

Many PRs use external resources (files) to define their behaviour and, in most cases, these files are identified using URLs. During the saving process, all the URLs are converted relative URLs based on the location of the application file. This way, if the resources are packaged together with the application file, the entire application can be reliably moved to a different location.

API access to application saving and loading is provided by means of two static methods on the gate.util.persistence.PersistenceManager class, listed in table 7.8.



public static void saveObjectToFile(Object obj, File file)

Saves the data needed to re-create the provided GATE object to the specified file. The Object provided can be any type of Language or Processing Resource or a Controller. The procedures may work for other types of objects as well (e.g. it supports most Collection types).

public static Object loadObjectFromFile(File file)

Parses the file specified (which needs to be a file created by the above method) and creates the necessary object(s) as specified by the data in the file. Returns the root of the object tree.

Table 7.8: Application Saving and Loading

¯ aving and loading a GATE application

1//Where to save the application?
2File file = ...;
3//What to save?
4Controller theApplication = ...;
8          saveObjectToFile(theApplication, file);
9//delete the application
11theApplication = null;
14//load the application back
15theApplication = gate.util.persistence.PersistenceManager.
16                 loadObjectFromFile(file);

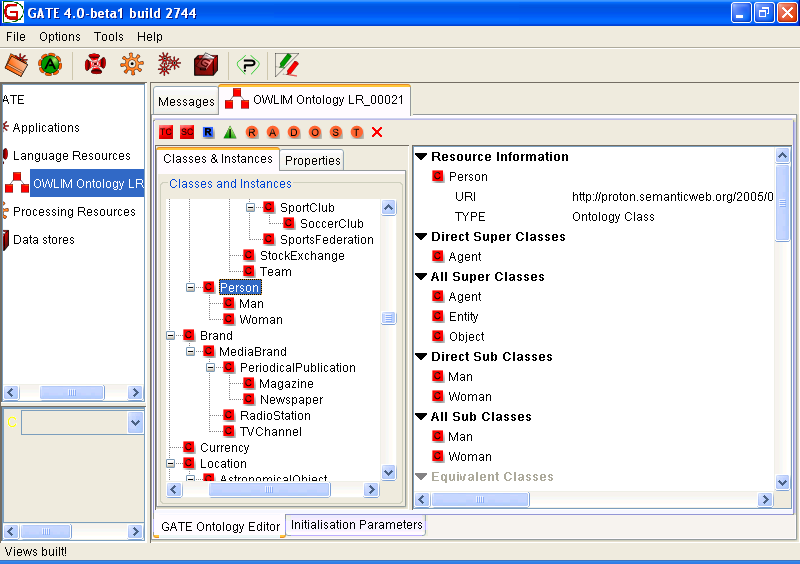

7.10 Ontologies

Starting from GATE version 3.1, support for ontologies has been added. Ontologies are nominally Language Resources but are quite different from documents and corpora and are detailed in chapter 14.

Classes related to ontologies are to be found in the gate.creole.ontology package and its sub-packages. The top level package defines an abstract API for working with ontologies while the sub-packages contain concrete implementations. A client program should only use the classes and methods defined in the API and never any of the classes or methods from the implementation packages.

The entry point to the ontology API is the gate.creole.ontology.Ontology interface which is the base interface for all concrete implementations. It provides methods for accessing the class hierarchy, listing the instances and the properties.

Ontology implementations are available through plugins. Before an ontology language resource can be created using the gate.Factory and before any of the classes and methods in the API can be used, one of the implementing ontology plugins must be loaded. For details see chapter 14.

7.11 Loading Annotation Schemas [#]

In order to create a gate.creole.AnnotationSchema object from a schema annotation file, one must use the gate.Factory class;

1FeatureMap params = new FeatureMap();\\
3AnnotationSchema annotSchema = \\
4Factory.createResurce("gate.creole.AnnotationSchema", params);

Note: All the elements and their values must be written in lower case, as XML is defined as case sensitive and the parser used for XML Schema inside GATE searches is case sensitive.

In order to be able to write XML Schema definitions, the ones defined in GATE (resources/creole/schema) can be used as a model, or the user can have a look at http://www.w3.org/2000/10/XMLSchema for a proper description of the semantics of the elements used.

Some examples of annotation schemas are given in Section 5.4.1.

7.12 Creating a New CREOLE Resource [#]

To create a new resource you need to:

The recommended way to build GATE plugins from version 8.5 onwards is to use the Apache Maven build tool. A JAR file requires certain specific contents in order to be a valid GATE plugin, and GATE provides tools to automate the creation of these as part of a Maven build. For best results you should use Maven 3.5.2 or later.

GATE provides a Maven archetype to create the skeleton of a new plugin including an example AbstractLanguageAnalyser processing resource you can use as a starting point for your own code. To create a new plugin project from the archetype, run the following Maven command (which has been split over several lines for clarity, but should be run as a single command):

mvn archetype:generate -DarchetypeGroupId=uk.ac.gate \
                       -DarchetypeArtifactId=gate-pr-archetype \

Replace “8.5” with the version of gate-core that you wish to depend on. You will be prompted for several values by Maven:

the group ID to use in the generated project POM. In Maven terms a “group” is a set of related JARs maintained and released by the same developer or group – conventionally this is based on the same convention as Java package names, using a reversed form of a DNS domain you own. You can use any value you like here, except that you should not use a group ID starting uk.ac.gate, as that is reserved for core plugins from the GATE team.
the artifact ID for the generated project POM – this will be used as the directory name for the new project on disk and as the first part of the name of the final JAR file.
the initial version number for your new plugin – this should always end with -SNAPSHOT in capital letters, which is a Maven convention denoting work-in-progress code where the same version number can refer to different JAR files over time. The Maven dependency mechanism assumes that only -SNAPSHOT versions can ever change, and JAR files for non-SNAPSHOT versions are immutable and can be cached forever.
the Java package name. Often this is the same as the group ID but this is not strictly required.
the class name of the PR class to generate – this must be a valid Java identifier.
the name of the PR as it will appear to users in the GATE Developer GUI (e.g. in the “new processing resource” popup menu).

Alternatively you can specify any of these values as extra -D options to archetype:generate, e.g. -DprClass=GoldfishTagger.

The archetype will create a new directory named after the artifactId, containing a few files:

the Maven project descriptor controlling the build process
the PR Java class.
the plugin descriptor that identifies this project as a GATE plugin.
a directory into which you should put any resource files that your PR requires (e.g. configuration files, JAPE grammars, etc.). The doubled “resources” is deliberate – src/main/resources is the Maven conventional location for non-Java files that should be packaged in the JAR, and GATE requires a folder called resources inside that.
some simple tests.

The generated Java class in src/main/java contains some basic CREOLE metadata and an example of how you can configure parameters, and some boilerplate initialization and execution code that you can modify to your requirements.

There is an alternative archetype available called gate-plugin-archetype, which creates the Maven project structure, POM file and creole.xml but not the example Java class. This is useful if you already have an existing CREOLE plugin from an earlier version of GATE that you want to convert to the Maven style. The process is exactly the same as described above, use the same mvn archetype:generate call as before but with -DarchetypeArtifactId=gate-plugin-archetype.


If you need to use other Java libraries in your PR code you should declare them in the <dependencies> block of the pom.xml. You can use https://search.maven.org to find the appropriate XML snippet for each dependency.

If your plugin requires another GATE plugin to operate (for example if it needs to internally create a JAPE transducer PR) then you should declare a dependency on the relevant plugin in src/main/resources/creole.xml and GATE will ensure that the other plugin is always loaded before this one, and that this plugin is unloaded whenever the other one is unloaded.

If your plugin has a compile-time dependency on another plugin then you will also need to declare this in pom.xml as well as in creole.xml – the pom dependency should use “provided” scope:


Note that such dependencies are very rarely required, typically only if you need to write a PR class in one plugin that extends (in the Java sense) a PR defined in another plugin. If you simply need to run another plugin’s PR as part of yours then the creole.xml dependency is sufficient as you would create and use the PR via the Factory in the normal way.

1// here we assume \texttt{grammarLocation} is declared as a \texttt{@CreoleParameter}
2// of this PR and is of type \texttt{ResourceReference}
3FeatureMap params = Utils.featureMap("grammarUrl", grammarLocation);
4LanguageAnalyser jape = (LanguageAnalyser)Factory.createResource(
5      "gate.creole.Transducer", params);

7.13 Adding Support for a New Document Format [#]

In order to add a new document format, one needs to extend the gate.DocumentFormat class and to implement an abstract method called:

1public void unpackMarkup(Document doc) throws
2 DocumentFormatException

This method is supposed to implement the functionality of each format reader and to create annotations on the document. Finally the document’s old content will be replaced with a new one containing only the text between markups.

If one needs to add a new textual reader will extend the gate.corpora.TextualDocumentFormat and override the unpackMarkup(doc) method.

This class needs to be implemented under the Java bean specifications because it will be instantiated by GATE using Factory.createResource() method.

The init() method that one needs to add and implement is very important because in here the reader defines its means to be selected successfully by GATE. What one needs to do is to add some specific information into certain static maps defined in DocumentFormat class, that will be used at reader detection time.

After that, a definition of the reader will be placed into the one’s creole.xml file and the reader will be available to GATE.

We present for the rest of the section a complete three step example of adding such a reader. The reader we describe in here is an XML reader.

Step 1

Create a new class called XmlDocumentFormat that extends
gate.corpora.TextualDocumentFormat and add appropriate CREOLE metadata. For example:

1@CreoleResource(name = "XML Document Format", isPrivate = true,
2    autoinstances = {@AutoInstance(hidden = true)})
3public class XmlDocumentFormat extends TextualDocumentFormat {

Step 2

Implement the unpackMarkup(Document doc) which performs the required functionality for the reader. Add XML detection means in init() method:

1public Resource init() throws ResourceInstantiationException{
2  // Register XML mime type
3  MimeType mime = new MimeType("text","xml");
4  // Register the class handler for this mime type
5  mimeString2ClassHandlerMap.put(mime.getType()+ "/" + mime.getSubtype(),
6                                                             this);
7  // Register the mime type with mine string
8  mimeString2mimeTypeMap.put(mime.getType() + "/" + mime.getSubtype(),
9                                                             mime);
10  // Register file suffixes for this mime type
11  suffixes2mimeTypeMap.put("xml",mime);
12  suffixes2mimeTypeMap.put("xhtm",mime);
13  suffixes2mimeTypeMap.put("xhtml",mime);
14  // Register magic numbers for this mime type
15  magic2mimeTypeMap.put("<?xml",mime);
16  // Set the mimeType for this language resource
17  setMimeType(mime);
18  return this;
19}// init()

More details about the information from those maps can be found in Section 5.5.1

More information on the operation of GATE’s document format analysers may be found in Section 5.5.

7.14 Using GATE Embedded in a Multithreaded Environment [#]

GATE Embedded can be used in multithreaded applications, so long as you observe a few restrictions. First, you must initialise GATE by calling Gate.init() exactly once in your application, typically in the application startup phase before any concurrent processing threads are started.

Secondly, you must not make calls that affect the global state of GATE (e.g. loading or unloading plugins) in more than one thread at a time. Again, you would typically load all the plugins your application requires at initialisation time. It is safe to create instances of resources in multiple threads concurrently.

Thirdly, it is important to note that individual GATE processing resources, language resources and controllers are by design not thread safe – it is not possible to use a single instance of a controller/PR/LR in multiple threads at the same time – but for a well written resource it should be possible to use several different instances of the same resource at once, each in a different thread. When writing your own resource classes you should bear the following in mind, to ensure that your resource will be useable in this way.

Of course, if you are writing a PR that is simply a wrapper around an external library that imposes these kinds of limitations there is only so much you can do. If your resource cannot be made safe you should document this fact clearly.

All the standard ANNIE PRs are safe when independent instances are used in different threads concurrently, as are the standard transient document, transient corpus and controller classes. A typical pattern of development for a multithreaded GATE-based application is:

Alternatively you can use the Spring Framework as described in the next section to handle the pooling for you.

7.15 Using GATE Embedded within a Spring Application [#]

GATE Embedded provides helper classes to allow GATE resources to be created and managed by the Spring framework. These helpers are provided by the gate-spring module, which must be added as a dependency of your project (and which in turn depends on gate-core). To use the helpers in an XML bean definition file, add the following declarations to the top:

<beans xmlns="http://www.springframework.org/schema/beans"

You can have Spring initialise GATE:

  <gate:init />

For backwards compatibility the <gate:init> element accepts a number of attributes which were used in earlier versions of GATE to specify paths to GATE’s “home” folder and configuration files, but as of GATE 8.5 these options do nothing by default. If you do want to load a user configuration file (for example to configure things like the “add space on markup unpack” feature) then you must explicitly turn off the sandbox mode:

  <gate:init run-in-sandbox="false" user-config-file="WEB-INF/user/xml" />

The user-config-file location is interpreted as a Spring “resource” path. If the value is not an absolute URL then Spring will resolve the path in an appropriate way for the type of application context — in a web application it is taken as being relative to the web app root, and you would typically use a location within WEB-INF as shown in the example above. To use an absolute path for gate-home it is not sufficient to use a leading slash (e.g. /opt/myapp/user.xml), for backwards-compatibility reasons Spring will still resolve this relative to your web application. Instead you must specify it as a full URL, i.e. file:/opt/myapp/user.xml.

You can specify CREOLE plugins that should be loaded after GATE has initialised using <gate:extra-plugin> elements, for example:

  <gate:init />
  <!-- load the standard ANNIE plugin from Maven Central -->
  <gate:extra-plugin group-id="uk.ac.gate.plugins"
                     vesion="8.5" />
  <!-- load a custom directory-based plugin from inside the webapp -->

The usual rules apply for the resolution of Maven plugins – GATE will look in .m2/repository under the home directory of the current user, as well as in the Central repository and the GATE team repository online, plus any repositories configured in the current user’s .m2/settings.xml. As well as this you can specify a local “cache” directory which is a Maven repository that will be searched first before trying any remote repositories, as part of the <gate:init> element:


Note that due to restrictions within the Maven resolver this must be a real directory on disk, so in the web application case if you put a cache inside your WAR file it will only be used if the WAR is unpacked by the container, not if it attempts to run the application directly from the compressed WAR.

To create a GATE resource, use the <gate:resource> element.

  <gate:resource id="referenceDocument" scope="singleton"
      <entry key="sourceUrl">
      <entry key="documentVersion" value="0.1.3" />
      <entry key="mainRef">
        <value type="java.lang.Boolean">true</value>

The children of <gate:parameters> are Spring <entry/> elements, just as you would write when configuring a bean property of type Map<String,Object>. <gate:url> provides a way to construct a java.net.URL from a resource path as discussed above. If it is possible to resolve the resource path as a file: URL then this form will be preferred, as there are a number of areas within GATE which work better with file: URLs than with other types of URL (for example plugins that run external processes, or that use a URL parameter to point to a directory in which they will create new files).

A note about types: The <gate:parameters> and <gate:features> elements define GATE FeatureMaps. When using the simple <entry key="..." value="..." /> form, the entry values will be treated as strings; Spring can convert strings into many other types of object using the standard Java Beans property editor mechanism, but since a FeatureMap can hold any kind of values you must use an explicit <value type="...">...</value> to tell Spring what type the value should be.

There is an additional twist for <gate:parameters> – GATE has its own internal logic to convert strings to other types required for resource parameters (see the discussion of default parameter values in section 4.7.1). So for parameter values you have a choice, you can either use an explicit <value type="..."> to make Spring do the conversion, or you can pass the parameter value as a string and let GATE do the conversion. For resource parameters whose type is gate.creole.ResourceReference, if you pass a string value that is not an absolute URL (starting file:, http:, etc.) then GATE will treat the string as a path relative to the plugin that defines the resource type whose parameter you are setting. If this is not what you intended then you should use <gate:url> to cause Spring to resolve the path to a URL (which GATE will then convert to a ResourceReference) before passing it to GATE. For example, for a JAPE transducer, <entry key="grammarURL" value="grammars/main.jape" /> would resolve to the resource reference creole://uk.ac.gate.plugins;annie;8.5/grammars/main.jape, whereas

<entry key="grammarURL">

would resolve to file:/path/to/webapp/grammars/main.jape.

You can load a GATE saved application with

  <gate:saved-application location="WEB-INF/application.gapp" scope="prototype">
      <gate:set-parameter pr-name="custom transducer" name="ontology"
                          ref="sharedOntology" />

‘Customisers’ are used to customise the application after it is loaded. In the example above, we assume we have loaded a singleton copy of an ontology which is then shared between all the separate instances of the (prototype) application. The <gate:set-parameter> customiser accepts all the same ways to provide a value as the standard Spring <property> element (a "value" or "ref" attribute, or a sub-element - <value>, <list>, <bean>, <gate:resource> …).

The <gate:add-pr> customiser provides support for the case where most of the application is in a saved state, but we want to create one or two extra PRs with Spring (maybe to inject other Spring beans as init parameters) and add them to the pipeline.

  <gate:saved-application ...>
      <gate:add-pr add-before="OrthoMatcher" ref="myPr" />

By default, the <gate:add-pr> customiser adds the target PR at the end of the pipeline, but an add-before or add-after attribute can be used to specify the name of a PR before (or after) which this PR should be placed. Alternatively, an index attribute places the PR at a specific (0-based) index into the pipeline. The PR to add can be specified either as a ‘ref’ attribute, or with a nested <bean> or <gate:resource> element.

7.15.1 Duplication in Spring [#]

The above example defines the <gate:application> as a prototype-scoped bean, which means the saved application state will be loaded afresh each time the bean is fetched from the bean factory (either explicitly using getBean or implicitly when it is injected as a dependency of another bean). However in many cases it is better to load the application once and then duplicate it as required (as described in section 7.8), as this allows resources to optimise their memory usage, for example by sharing a single in-memory representation of a large gazetteer list between several instances of the gazetteer PR. This approach is supported by the <gate:duplicate> tag.

<gate:duplicate id="theApp">
  <gate:saved-application location="/WEB-INF/application.xgapp" />

The <gate:duplicate> tag acts like a prototype bean definition, in that each time it is fetched or injected it will call Factory.duplicate to create a new duplicate of its template resource (declared as a nested element or referenced by the template-ref attribute). However the tag also keeps track of all the duplicate instances it has returned over its lifetime, and will ensure they are released (using Factory.deleteResource) when the Spring context is shut down.

The <gate:duplicate> tag also supports customisers, which will be applied to the newly-created duplicate resource before it is returned. This is subtly different from applying the customisers to the template resource itself, which would cause them to be applied once to the original resource before it is first duplicated.

Finally, <gate:duplicate> takes an optional boolean attribute return-template. If set to false (or omitted, as this is the default behaviour), the tag always returns a duplicate — the original template resource is used only as a template and is not made available for use. If set to true, the first time the bean defined by the tag is injected or fetched, the original template resource is returned. Subsequent uses of the tag will return duplicates. Generally speaking, it is only safe to set return-template="true" when there are no customisers, and when the duplicates will all be created up-front before any of them are used. If the duplicates will be created asynchronously (e.g. with a dynamically expanding pool, see below) then it is possible that, for example, a template application may be duplicated in one thread whilst it is being executed by another thread, which may lead to unpredictable behaviour.

7.15.2 Spring pooling [#]

In a multithreaded application it is vital that individual GATE resources are not used in more than one thread at the same time. Because of this, multithreaded applications that use GATE Embedded often need to use some form of pooling to provided thread-safe access to GATE components. This can be managed by hand, but the Spring framework has built-in tools to support transparent pooling of Spring-managed beans. Spring can create a pool of identical objects, then expose a single “proxy” object (offering the same interface) for use by clients. Each method call on the proxy object will be routed to an available member of the pool in such a way as to guarantee that each member of the pool is accessed by no more than one thread at a time.

Since the pooling is handled at the level of method calls, this approach is not used to create a pool of GATE resources directly — making use of a GATE PR typically involves a sequence of method calls (at least setDocument(doc), execute() and setDocument(null)), and creating a pooling proxy for the resource may result in these calls going to different members of the pool. Instead the typical use of this technique is to define a helper object with a single method that internally calls the GATE API methods in the correct sequence, and then create a pool of these helpers. The interface gate.util.DocumentProcessor and its associated implementation gate.util.LanguageAnalyserDocumentProcessor are useful for this. The DocumentProcessor interface defines a processDocument method that takes a GATE document and performs some processing on it. LanguageAnalyserDocumentProcessor implements this interface using a GATE LanguageAnalyser (such as a saved “corpus pipeline” application) to do the processing. A pool of LanguageAnalyserDocumentProcessor instances can be exposed through a proxy which can then be called from several threads.

The machinery to implement this is all built into Spring, but the configuration typically required to enable it is quite fiddly, involving at least three co-operating bean definitions. Since the technique is so useful with GATE Embedded, GATE provides a special syntax to configure pooling in a simple way.

To use Spring pooling, you need to add a dependency to your project on an appropriate version of org.apache.commons:commons-pool2 or commons-pool:commons-pool5. Now, given the <gate:duplicate id="theApp"> definition from the previous section we can create a DocumentProcessor proxy that can handle up to five concurrent requests as follows:

<bean id="processor"
  <property name="analyser" ref="theApp" />
  <gate:pooled-proxy max-size="5" />

The <gate:pooled-proxy> element decorates a singleton bean definition. It converts the original definition to prototype scope and replaces it with a singleton proxy delegating to a pool of instances of the prototype bean. The pool parameters are controlled by attributes of the <gate:pooled-proxy> element, the most important ones being:

The maximum size of the pool. If more than this number of threads try to call methods on the proxy at the same time, the others will (by default) block until an object is returned to the pool.
The default behaviour of Spring’s pooling tools is to create instances in the pool on demand (up to the max-size). This attribute instead causes initial-size instances to be created up-front and added to the pool when it is first created.
What to do when the pool is exhausted (i.e. there are already max-size concurrent calls in progress and another one arrives). Should be set to one of WHEN_EXHAUSTED_BLOCK (the default, meaning block the excess requests until an object becomes free), WHEN_EXHAUSTED_GROW (create a new object anyway, even though this pushes the pool beyond max-size) or WHEN_EXHAUSTED_FAIL (cause the excess calls to fail with an exception).

Any of these attributes can make use of the usual ${...} property placeholder mechanism. Many more options are available, corresponding to the properties of the underlying Spring TargetSource in use (by default, a slightly customised subclass of CommonsPool2TargetSource or CommonsPoolTargetSource, depending which version of commons-pool you depend on). These allow you, for example, to configure a pool that dynamically grows and shrinks as necessary, releasing objects that have been idle for a set amount of time. See the JavaDoc documentation of CommonsPoolTargetSource (and the documentation for Apache commons-pool) for full details. If you wish to use a different TargetSource implementation from the default you can provide a target-source-class attribute with the fully-qualified class name of the class you wish to use (which must, of course, implement the TargetSource interface).

Note that the <gate:pooled-proxy> technique is not tied to GATE in any way, it is simply an easy way to configure standard Spring beans and can be used with any bean that needs to be pooled, not just objects that make use of GATE.

7.15.3 Further reading [#]

These custom elements all define various factory beans. For full details, see the JavaDocs for the gate-spring module. The main Spring framework API documentation is the best place to look for more detail on the pooling facilities provided by Spring AOP.

7.16 Groovy for GATE [#]

Groovy is a dynamic programming language based on Java. Groovy is not used in the core GATE distribution, so to enable the Groovy features in GATE you must first load the Groovy plugin. Loading this plugin:

This section describes these features in detail, but assumes that the reader already has some knowledge of the Groovy language. If you are not already familiar with Groovy you should read this section in conjunction with Groovy’s own documentation at http://groovy.codehaus.org/.

7.16.1 Groovy Scripting Console for GATE [#]

Loading the Groovy plugin in GATE Developer will provide a “Groovy Console” item in the Tools/Groovy Tools menu. This menu item opens the standard Groovy console window (http://groovy.codehaus.org/Groovy+Console).

To help scripting GATE in Groovy, the console is pre-configured to import all classes from the gate and gate.util packages of the core GATE API. This means you can refer to classes and interfaces such as Factory, AnnotationSet, Gate, etc. without needing to prefix them with a package name. In addition, the following (read-only) variable bindings are pre-defined in the Groovy Console.

These variables are automatically updated as resources are created and deleted in GATE.

Here’s an example script. It finds all documents with a feature “annotator” set to “fred”, and puts them in a new corpus called “fredsDocs”.

2  docs.findAll{
3    it.features.annotator == "fred"
4  }

You can find other examples (and add your own) in the Groovy script repository on the GATE Wiki: http://gate.ac.uk/wiki/groovy-recipes/.

Why won’t the ‘Groovy executing’ dialog go away? Sometimes, when you execute a Groovy script through the console, a dialog will appear, saying “Groovy is executing. Please wait”. The dialog fails to go away even when the script has ended, and cannot be closed by clicking the “Interrupt” button. You can, however, continue to use the Groovy Console, and the dialog will usually go away next time you run a script. This is not a GATE problem: it is a Groovy problem.

7.16.2 Groovy scripting PR [#]

The Groovy scripting PR enables you to load and execute Groovy scripts as part of a GATE application pipeline. The Groovy scripting PR is made available when you load the Groovy plugin via the plugin manager.

Parameters [#]

The Groovy scripting PR has a single initialisation parameter

It has three runtime parameters

Script bindings [#]

As with the Groovy console described above Groovy scripts run by the scripting PR implicitly import all classes from the gate and gate.util packages of the core GATE API. The Groovy scripting PR also makes available the following bindings, which you can use in your scripts:

Note that inputAS and outputAS are intended to be used as input and output AnnotationSets. This is, however, a convention: there is nothing to stop a script writing to or reading from any AnnotationSet. Also, although the script has access to the corpus containing the document it is running over, it is not generally necessary for the script to iterate over the documents in the corpus itself – the reference is provided to allow the script to access data stored in the FeatureMap of the corpus. Any other variables assigned to within the script code will be added to the binding, and values set while processing one document can be used while processing a later one.

Passing parameters to the script [#]

In addition to the above bindings, one further binding is available to the script:

For example, if you were to create a scriptParams runtime parameter for your PR, with the keys and values: ’name=fred,type=person’, then the values could be retrieved in your script via scriptParams.name and scriptParams.type. If you populate the scriptParams FeatureMap programmatically, the values will of course have the same types inside the Groovy script, but if you create the FeatureMap with GATE Developer’s parameter editor, the keys and values will all have String type. (If you want to set n=3 in the GUI editor, for example, you can use scriptParams.n as Integer in the Groovy script to obtain the Integer type.)

Controller callbacks [#]

A Groovy script may wish to do some pre- or post-processing before or after processing the documents in a corpus, for example if it is collecting statistics about the corpus. To support this, the script can declare methods beforeCorpus and afterCorpus, taking a single parameter. If the beforeCorpus method is defined and the script PR is running in a corpus pipeline application, the method will be called before the pipeline processes the first document. Similarly, if the afterCorpus method is defined it will be called after the pipeline has completed processing of all the documents in the corpus. In both cases the corpus will be passed to the method as a parameter. If the pipeline aborts with an exception the afterCorpus method will not be called, but if the script declares a method aborted(c) then this will be called instead.

Note that because the script is not processing a particular document when these methods are called, the usual doc, corpus, inputAS, etc. are not available within the body of the methods (though the corpus is passed to the method as a parameter). The scriptParams and controller variables are available.

The following example shows how this technique could be used to build a simple tf/idf index for a GATE corpus. The example is available in the GATE distribution as plugins/Groovy/resources/scripts/tfidf.groovy. The script makes use of some of the utility methods described in section 7.16.4.

1// reset variables
2void beforeCorpus(c) {
3  // list of maps (one for each doc) from term to frequency
4  frequencies = []
5  // sorted map from term to docs that contain it
6  docMap = new TreeMap()
7  // index of the current doc in the corpus
8  docNum = 0
11// start frequency list for this document
12frequencies << [:]
14// iterate over the requested annotations
15inputAS[scriptParams.annotationType].each {
16  def str = doc.stringFor(it)
17  // increment term frequency for this term
18  frequencies[docNum][str] =
19    (frequencies[docNum][str] ?: 0) + 1
21  // keep track of which documents this term appears in
22  if(!docMap[str]) {
23    docMap[str] = new LinkedHashSet()
24  }
25  docMap[str] << docNum
28// normalize counts by doc length
29def docLength = inputAS[scriptParams.annotationType].size()
30frequencies[docNum].each { freq ->
31  freq.value = ((double)freq.value) / docLength
34// increment the counter for the next document
37// compute the IDFs and store the table as a corpus feature
38void afterCorpus(c) {
39  def tfIdf = [:]
40  docMap.each { term, docsWithTerm ->
41    def idf = Math.log((double)docNum / docsWithTerm.size())
42    tfIdf[term] = [:]
43    docsWithTerm.each { docId ->
44      tfIdf[term][docId] = frequencies[docId][term] * idf
45    }
46  }
47  c.features.freqTable = tfIdf

Examples [#]

The plugin directory Groovy/resources/scripts contains some example scripts. Below is the code for a naive regular expression PR.

2matcher = content =~ scriptParams.regex
4  outputAS.add(matcher.start(),
5               matcher.end(),
6               scriptParams.type,
7               Factory.newFeatureMap())

The script needs to have the runtime parameter scriptParams set with keys and values as follows:

When the PR is run over a document, the script will first make a matcher over the document content for the regular expression given by the regex parameter. It will iterate over all matches for this regular expression, adding a new annotation for each, with a type as given by the type parameter.

7.16.3 The Scriptable Controller [#]

The Groovy plugin’s “Scriptable Controller” is a more flexible alternative to the standard pipeline (SerialController) and corpus pipeline (SerialAnalyserController) applications and their conditional variants, and also supports the time limiting and robustness features of the realtime controller. Like the standard controllers, a scriptable controller contains a list of processing resources and can optionally be configured with a corpus, but unlike the standard controllers it does not necessarily execute the PRs in a linear order. Instead the execution strategy is controlled by a script written in a Groovy domain specific language (DSL), which is detailed in the following sections.

Running a single PR

To run a single PR from the scriptable controller’s list of PRs, simply use the PR’s name as a Groovy method call:

2"ANNIE English Tokeniser"()

If the PR’s name contains spaces or any other character that is not valid in a Groovy identifier, or if the name is a reserved word (such as “import”) then you must enclose the name in single or double quotes. You may prefer to rename the PRs so their names are valid identifiers. Also, if there are several PRs in the controller’s list with the same name, they will all be run in the order in which they appear in the list.

You can optionally provide a Map of named parameters to the call, and these will override the corresponding runtime parameter values for the PR (the original values will be restored after the PR has been executed):


Iterating over the corpus

If a corpus has been provided to the controller then you can iterate over all the documents in the corpus using eachDocument:

1eachDocument {
2  tokeniser()
3  sentenceSplitter()
4  myTransducer()

The block of code (in fact a Groovy closure) is executed once for each document in the corpus exactly as a standard corpus pipeline application would operate. The current document is available to the script in the variable doc and the corpus in the variable corpus, and in addition any calls to PRs that implement the LanguageAnalyser interface will set the PR’s document and corpus parameters appropriately.

Running all the PRs in sequence

Calling allPRs() will execute all the controller’s PRs once in the order in which they appear in the list. This is rarely useful in practice but it serves to define the default behaviour: the initial script that is used by default in a newly instantiated scriptable controller is eachDocument { allPRs() }, which mimics the behaviour of a standard corpus pipeline application.

More advanced scripting

The basic DSL is extremely simple, but because the script is Groovy code you can use all the other facilities of the Groovy language to do conditional execution, grouping of PRs, etc. The control script has the same implicit imports as provided by the Groovy Script PR (section 7.16.2), and additional import statements can be added as required.

For example, suppose you have a pipeline for multi-lingual document processing, containing PRs named “englishTokeniser”, “englishGazetteer”, “frenchTokeniser”, “frenchGazetteer”, “genericTokeniser”, etc., and you need to choose which ones to run based on a document feature:

1eachDocument {
2  def lang = doc.features.language ?: generic
3  "${lang}Tokeniser"()
4  "${lang}Gazetteer"()

As another example, suppose you have a particular JAPE grammar that you know is slow on documents that mention a large number of locations, so you only want to run it on documents with up to 100 Location annotations, and use a faster but less accurate one on others:

1// helper method to group several PRs together
2void annotateLocations() {
3  tokeniser()
4  splitter()
5  gazetteer()
6  locationGrammar()
9eachDocument {
10  annotateLocations()
11  if(doc.annotations["Location"].size() <= 100) {
12    fullLocationClassifier()
13  }
14  else {
15    fastLocationClassifier()
16  }

You can have more than one call to eachDocument, for example a controller that pre-processes some documents, then collects some corpus-level statistics, then further processes the documents based on those statistics.

As a final example, consider a controller to post-process data from a manual annotation task. Some of the documents have been annotated by one annotator, some by more than one (the annotations are in sets named “annotator1”, “annotator2”, etc., but the number of sets varies from document to document).

1eachDocument {
2  // find all the annotatorN sets on this document
3  def annotators =
4    doc.annotationSetNames.findAll {
5      it ==~ /annotator\d+/
6    }
8  // run the postprocessing JAPE grammar on each one
9  annotators.each { asName ->
10    postProcessingGrammar(
11        inputASName: asName,
12        outputASName: asName)
13  }
15  // now merge them to form a consensus set
16  mergingPR(annSetsForMerging: annotators.join(;))

Nesting a scriptable controller in another application

Like the standard SerialAnalyserController, the scriptable controller implements the LanugageAnalyser interface and so can itself be nested as a PR in another pipeline. When used in this way, eachDocument does not iterate over the corpus but simply calls its closure once, with the “current document” set to the document that was passed to the controller as a parameter. This is the same logic as is used by SerialAnalyserController, which runs its PRs once only rather than once per document in the corpus.

Global variables

There are a number of variables that are pre-defined in the control script.

(read-only) a reference to the ScriptableController object itself, providing access to its features etc.
(read-only) an unmodifiable list of the processing resources in the pipeline.
(read-write) a reference to the corpus (if any) currently set on the controller, and over which any eachDocument loops will iterate. This variable is a direct “alias” to the controller’s getCorpus/setCorpus methods, so for example a script could build a new corpus (using a web crawler or similar), then use eachDocument to iterate over this corpus and process the documents.

In addition, as mentioned above, within the scope of an eachDocument loop there is a “doc” variable giving access to the document being processed in the current iteration. Note that if this controller is nested inside another controller (see the previous section) then the “doc” variable will be available throughout the script.

Ignoring errors

By default, if an exception or error occurs while processing (either thrown by a PR or occurring directly within the controller’s script) then the controller’s execution will terminate with an exception. If this occurs during an eachDocument then the remaining documents will not be processed. In some circumstances it may be preferable to ignore the error and simply continue with the next document. To support this you can use ignoringErrors:

1eachDocument {
2  ignoringErrors {
3    tokeniser()
4    sentenceSplitter()
5    myTransducer()
6  }

Any exceptions or errors thrown within the ignoringErrors block will be logged6 but not rethrown. So in the example above if myTransducer fails with an exception the controller will continue with the next document. Note that it is important to nest the blocks correctly – if the nesting were reversed (with the eachDocument inside the ignoringErrors) then an exception would terminate the whole eachDocument loop and the remaining documents would not be processed.

Realtime behaviour

Some GATE processing resources can be very slow when operating on large or complex documents. In many cases it is possible to use heuristics within your controller’s script to spot likely “problem” documents and avoid running such PRs over them (see the fast vs. full location classifier example above), but for situations where this is not possible you can use the timeLimit method to put a blanket limit on the time that PRs will be allowed to consume, in a similar way to the real-time controller.

1eachDocument {
2  ignoringErrors {
3    annotateLocations()
4    timeLimit(soft:30.seconds, hard:30.seconds) {
5      classifyLocations()
6    }
7  }

A call to timeLimit will attempt to limit the running time of its associated code block. You can specify three different kinds of limit:

if the block is still executing after this time, attempt to interrupt it gently. This uses Thread.interrupt() and also calls the interrupt() method of the currently executing PR (if any).
if the block is still executing after this time beyond the soft limit, attempt to induce an exception by setting the corpus and document parameters of the currently running PR to null. This is useful to deal with PRs that do not properly respect the interrupt call.
if the block is still executing after this time beyond the previous limit, forcibly terminate it using Thread.stop. This is inherently dangerous and prone to memory leakage but may be the only way to stop particularly stubborn PRs. It should be used with caution.

Limits can be specified using Groovy’s TimeCategory notation as shown above (e.g. 10.seconds, 2.minutes, 1.minute+45.seconds), or as simple numbers (of milliseconds). Each limit starts counting from the end of the last, so in the example above the hard limit is 30 seconds after the soft limit, or 1 minute after the start of execution. If no hard limit is specified the controller will wait indefinitely for the block to complete.

Note also that when a timeLimit block is terminated it will throw an exception. If you do not wish this exception to terminate the execution of the controller as a whole you will need to wrap the timeLimit block in an ignoringErrors block.

timeLimit blocks, particularly ones with a hard limit specified, should be regarded as a last resort – if there are heuristic methods you can use to avoid running slow PRs in the first place it is a good idea to use them as a first defence, possibly wrapping them in a timeLimit block if you need hard guarantees (for example when you are paying per hour for your compute time in a cloud computing system).

The Scriptable Controller in GATE Developer

When you double-click on a scriptable controller in the resources tree of GATE Developer you see the same controller editor that is used by the standard controllers. This view allows you to add PRs to the controller and set their default runtime parameter values, and to specify the corpus over which the controller should run. A separate view is provided to allow you to edit the Groovy script, which is accessible via the “Control Script” tab (see figure 7.2). This tab provides a text editor which does basic Groovy syntax highlighting (the same editor used by the Groovy Console).


Figure 7.2: Accessing the script editor for a scriptable controller

7.16.4 Utility methods [#]

Loading the Groovy plugin adds some additional methods to several of the core GATE API classes and interfaces using the Groovy “mixin” mechanism. Any Groovy code that runs after the plugin has been loaded can make use of these additional methods, including snippets run in the Groovy console, scripts run using the Script PR, and any other Groovy code that uses the GATE Embedded API.

The methods that are injected come from two classes. The gate.Utils class (part of the core GATE API in gate.jar) defines a number of static methods that can be used to simplify common tasks such as getting the string covered by an annotation or annotation set, finding the start or end offset of an annotation (or set), etc. These methods do not use any Groovy-specific types, so they are usable from pure Java code in the usual way as well as being mixed in for use in Groovy. Additionally, the class gate.groovy.GateGroovyMethods (part of the Groovy plugin) provides methods that use Groovy types such as closures and ranges.

The added methods include:

For full details, see the source code or javadoc documentation for these two classes.

7.17 Saving Config Data to gate.xml

Arbitrary feature/value data items can be saved to the user’s gate.xml file via the following API calls:

To get the config data: Map configData = Gate.getUserConfig().

To add config data simply put pairs into the map: configData.put("my new config key", "value");.

To write the config data back to the XML file: Gate.writeUserConfig();.

Note that new config data will simply override old values, where the keys are the same. In this way defaults can be set up by putting their values in the main gate.xml file, or the site gate.xml file; they can then be overridden by the user’s gate.xml file.

7.18 Annotation merging through the API [#]

If we have annotations about the same subject on the same document from different annotators, we may need to merge those annotations to form a unified annotation. Two approaches for merging annotations are implemented in the API, via static methods in the class gate.util.AnnotationMerging.

The two methods have very similar input and output parameters. Each of the methods takes an array of annotation sets, which should be the same annotation type on the same document from different annotators, as input. A single feature can also be specified as a parameter (or given asnull if no feature is to be specified).

The output is a map, the key of which is one merged annotation and the value of which represents the annotators (in terms of the indices of the array of annotation sets) who support the annotation. The methods also have a boolean input parameter to indicate whether or not the annotations from different annotators are based on the same set of instances, which can be determined by the static method public boolean isSameInstancesForAnnotators(AnnotationSet[] annsA) in the class gate.util.IaaCalculation. One instance corresponds to all the annotations with the same span. If the annotation sets are based on the same set of instances, the merging methods will ensure that the merged annotations are on the same set of instances.

The two methods corresponding to those described for the Annotation Merging plugin described in Section 23.19. They are:

7.19 Using Resource Helpers to Extend the API [#]

Resource Helpers (see Section 4.8.2) are an easy way of adding new features to existing resources within GATE Developer. Currently most Resource Helpers provide additional ways of loading or exporting documents, and it would also be useful to have the same features available via the API. While you could compile embedded code against the plugin classes or use reflection, this can quickly become difficult to manage, and rather negates the whole plugin philosophy. Fortunately the Resource Helper API makes it easy to access these new features from embedded code.

Here is a complete example showing how a GATE document can be exported using the Resource Helper in the Fast Infoset plugin (see Section 23.30 for details on Fast Infoset support):

1// initialise GATE and load the plugin (which creates an autoinstance of the Resource Helper)
3Gate.getCreoleRegister().registerPlugin(new Plugin.Maven(
4      "uk.ac.gate.plugins", "format-fastinfoset", "8.5"));
6// get the autoinstance of the Resource Helper
7ResourceHelper rh =
8  (ResourceHelper)Gate.getCreoleRegister()
9    .getAllInstances("gate.corpora.FastInfosetExporter").iterator()
10    .next();
12// create a simple test document
13Document doc =
14  Factory.newDocument("A test of the Resource Handler API access");
16// use the Resource Helper to export the document
17rh.call("export", doc, new File("resource-handler-test.finf"));

The comments should make the code fairly self-explanatory, but the main feature is on line 18 which uses the ResourceHandler.call(String, Resource, Object...) method. This essentially allows you to call a named method of the Resource Helper (in the example “export”), for a given Resource instance (here we are using a Document instance), supplying any necessary parameters. This allows you to access any public instance method of a Resource Helper that takes a Resource as it’s first parameter.

The only downside to this approach is that there is no compile time checking that the method you are trying to call actually exists or that the parameters are of the correct type so testing is important.

7.20 Converting a Directory Plugin to a Maven Plugin [#]

Prior to GATE version 8.5 plugins were distributed as direcories containing a creole.xml at their root. This approach was fragile (required relative paths for dependencies etc.) and did not properly support versioning making it difficult to gurantee reproducability. From GATE version 8.5 onwards the recommended way to both build and distribute plugins is via the Apache Maven build tool. In this approach a plugin is represented by a JAR file containing the compiled code, default resources, and CREOLE metadata. For best results you should use Maven 3.5.2 or later.

As discussed in Section 7.12 GATE provides a Maven archetype to create the skeleton of a new plugin. That example contains a sample processing resource. We also provide an archetype which produces an empty plugin and which can easy the process of converting a directory plugin to a new Maven style plugin. To use this archetype run the following Maven command (which has been split over several lines for clarity, but should be run as a single command):

mvn archetype:generate -DarchetypeGroupId=uk.ac.gate \
                       -DarchetypeArtifactId=gate-plugin-archetype \

Replace “8.5” with the version of gate-core that you wish to depend on. You will be prompted for several values by Maven:

the group ID to use in the generated project POM. In Maven terms a “group” is a set of related JARs maintained and released by the same developer or group – conventionally this is based on the same convention as Java package names, using a reversed form of a DNS domain you own. You can use any value you like here, except that you should not use a group ID starting uk.ac.gate, as that is reserved for core plugins from the GATE team.
the artifact ID for the generated project POM – this will be used as the directory name for the new project on disk and as the first part of the name of the final JAR file.
the initial version number for your new plugin – this should always end with -SNAPSHOT in capital letters, which is a Maven convention denoting work-in-progress code where the same version number can refer to different JAR files over time. The Maven dependency mechanism assumes that only -SNAPSHOT versions can ever change, and JAR files for non-SNAPSHOT versions are immutable and can be cached forever.

Once the directory structure has been corrected existing code and resources can be copied in from your old directory based plugin as follows:

Source Code
should be copied into src/main/java or src/test/java as appropriate
should be copied into src/main/resources/resources. Note that the repeated directory name is deliberate to ensure that any resources end up in a folder called resources at the root of the plugin JAR file.

Code libraries (usually found in lib in directory plugins) are now handled via Maven and so do not need to be transfered over from the old plugin but should be detailed in the Maven pom.xml file. See Section 7.12 for full details on developing a Maven based plugin, all of which applies to upgrading a plugin once the source and resources have been copied into the correct directory structure.

One other recommendation when converting a plugin is to switch from using URL as a parameter type to using ResourceReference as these allow users to easily access resources inside plugins. See Section 12.3.2 for details on how to use ResourceReference values within your plugins.

Chapter 8
JAPE: Regular Expressions over Annotations [#]

If Osama bin Laden did not exist, it would be necessary to invent him. For the past four years, his name has been invoked whenever a US president has sought to increase the defence budget or wriggle out of arms control treaties. He has been used to justify even President Bush’s missile defence programme, though neither he nor his associates are known to possess anything approaching ballistic missile technology. Now he has become the personification of evil required to launch a crusade for good: the face behind the faceless terror.

The closer you look, the weaker the case against Bin Laden becomes. While the terrorists who inflicted Tuesday’s dreadful wound may have been inspired by him, there is, as yet, no evidence that they were instructed by him. Bin Laden’s presumed guilt appears to rest on the supposition that he is the sort of man who would have done it. But his culpability is irrelevant: his usefulness to western governments lies in his power to terrify. When billions of pounds of military spending are at stake, rogue states and terrorist warlords become assets precisely because they are liabilities.

The need for dissent, George Monbiot, The Guardian, Tuesday September 18, 2001.

JAPE is a Java Annotation Patterns Engine. JAPE provides finite state transduction over annotations based on regular expressions. JAPE is a version of CPSL – Common Pattern Specification Language1. This chapter introduces JAPE, and outlines the functionality available. (You can find an excellent tutorial here; thanks to Dhaval Thakker, Taha Osmin and Phil Lakin).

JAPE allows you to recognise regular expressions in annotations on documents. Hang on, there’s something wrong here: a regular language can only describe sets of strings, not graphs, and GATE’s model of annotations is based on graphs. Hmmm. Another way of saying this: typically, regular expressions are applied to character strings, a simple linear sequence of items, but here we are applying them to a much more complex data structure. The result is that in certain cases the matching process is non-deterministic (i.e. the results are dependent on random factors like the addresses at which data is stored in the virtual machine): when there is structure in the graph being matched that requires more than the power of a regular automaton to recognise, JAPE chooses an alternative arbitrarily. However, this is not the bad news that it seems to be, as it turns out that in many useful cases the data stored in annotation graphs in GATE (and other language processing systems) can be regarded as simple sequences, and matched deterministically with regular expressions.

A JAPE grammar consists of a set of phases, each of which consists of a set of pattern/action rules. The phases run sequentially and constitute a cascade of finite state transducers over annotations. The left-hand-side (LHS) of the rules consist of an annotation pattern description. The right-hand-side (RHS) consists of annotation manipulation statements. Annotations matched on the LHS of a rule may be referred to on the RHS by means of labels that are attached to pattern elements. Consider the following example:

Phase: Jobtitle
Input: Lookup
Options: control = appelt debug = true
Rule: Jobtitle1
 {Lookup.majorType == jobtitle}
  {Lookup.majorType == jobtitle}
 :jobtitle.JobTitle = {rule = "JobTitle1"}

The LHS is the part preceding the ‘-->’ and the RHS is the part following it. The LHS specifies a pattern to be matched to the annotated GATE document, whereas the RHS specifies what is to be done to the matched text. In this example, we have a rule entitled ‘Jobtitle1’, which will match text annotated with a ‘Lookup’ annotation with a ‘majorType’ feature of ‘jobtitle’, followed optionally by further text annotated as a ‘Lookup’ with ‘majorType’ of ‘jobtitle’. Once this rule has matched a sequence of text, the entire sequence is allocated a label by the rule, and in this case, the label is ‘jobtitle’. On the RHS, we refer to this span of text using the label given in the LHS; ‘jobtitle’. We say that this text is to be given an annotation of type ‘JobTitle’ and a ‘rule’ feature set to ‘JobTitle1’.

We began the JAPE grammar by giving it a phase name, e.g. ‘Phase: Jobtitle’. JAPE grammars can be cascaded, and so each grammar is considered to be a ‘phase’ (see Section 8.5). Phase names (and rule names) must contain only alphanumeric characters, hyphens and underscores, and cannot start with a number.

We also provide a list of the annotation types we will use in the grammar. In this case, we say ‘Input: Lookup’ because the only annotation type we use on the LHS are Lookup annotations. If no annotations are defined, all annotations will be matched.

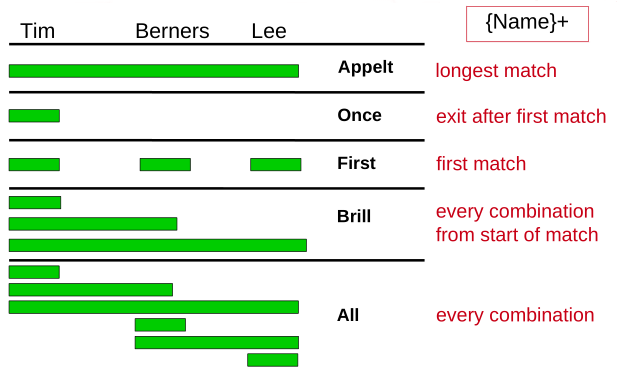

Then, several options are set:

A wide range of functionality can be used with JAPE, making it a very powerful system. Section 8.1 gives an overview of some common LHS tasks. Section 8.2 talks about the various operators available for use on the LHS. After that, Section 8.3 outlines RHS functionality. Section 8.4 talks about priority and Section 8.5 talks about phases. Section 8.6 talks about using Java code on the RHS, which is the main way of increasing the power of the RHS. We conclude the chapter with some miscellaneous JAPE-related topics of interest.

8.1 The Left-Hand Side [#]

The LHS of a JAPE grammar aims to match the text span to be annotated, whilst avoiding undesirable matches. There are various tools available to enable you to do this. This section outlines how you would approach various common tasks on the LHS of your JAPE grammar.

8.1.1 Matching Entire Annotation Types

The simplest pattern in JAPE is to match any single annotation of a particular annotation type. You can match only annotation types you specified in the “Input” line at the top of the file. For example, the following will match any Lookup annotation:


If the annotation type contains anything other than ASCII letters and digits, you need to quote it2:


8.1.2 Using Features and Values

You can specify the features (and values) of an annotation to be matched. Several operators are supported; see Section 8.2 for full details:

In the following rule, the ‘category’ feature of the ‘Token’ annotation is used, along with the ‘equals’ operator:

Rule: Unknown
Priority: 50
 {Token.category == NNP}
 :unknown.Unknown = {kind = "PN", rule = Unknown}

As with the annotation type, if you want to match a feature name that contains anything other than letters or digits, it must be quoted

 {element."xsi:type" == "xs:string"}

8.1.3 Using Meta-Properties [#]

In addition to referencing annotation features, JAPE allows access to other ‘meta-properties’ of an annotation. This is done by using an ‘@’ symbol rather than a ‘.’ symbol after the annotation type name. The three meta-properties that are built in are:

{X@length > 5}:label-->:label.New = {}

8.1.4 Building complex patterns from simple patterns [#]

So far we have seen how to build a simple pattern that matches a single annotation, optionally with a constraint on one of its features or meta-properties, but to do anything useful with JAPE you will need to combine these simple patterns into more complex ones.

Sequences, alternatives and grouping

Patterns can be matched in sequence, for example:

Rule: InLocation
  {Token.category == "IN"}

matches a Token annotation of category “IN” followed by a Location annotation. Note that “followed by” in JAPE depends on the annotation types specified in the Input line – the above pattern matches a Token annotation and a Location annotation provided there are no intervening annotations of a type listed in the Input line. The Token and Location will not necessarily be immediately adjacent (they would probably be separated by an intervening space). In particular the pattern would not match if “SpaceToken” were specified in the Input line.

The vertical bar “|” is used to denote alternatives. For example

Rule: InOrAdjective
  {Token.category == "IN"} | {Token.category == "JJ"}

would match either a Token whose category is “IN” or one whose category is “JJ”.

Parentheses are used to group patterns:

Rule: InLocation
  ({Token.category == "IN"} | {Token.category == "JJ"})

matches a Token with one or other of the two category values, followed by a Location, whereas:

Rule: InLocation
  {Token.category == "IN"} |
  ( {Token.category == "JJ"}
    {Location} )

would match either an “IN” Token or a sequence of “JJ” Token and Location.


JAPE also provides repetition operators to allow a pattern in parentheses to be optional (?), or to match zero or more (*), one or more (+) or some specified number of times. In the following example, you can see the ‘’ and ‘?’ operators being used:

Rule: LocOrganization
Priority: 50
 ({Lookup.majorType == location} |
  {Lookup.majorType == country_adj})
{Lookup.majorType == organization}
({Lookup.majorType == organization})?
:orgName -->
  :orgName.TempOrganization = {kind = "orgName", rule=LocOrganization}

Range Notation [#]

Repetition ranges are specified using square brackets.


matches one to three Tokens in a row.

({Token.kind == number})[3]

matches exactly 3 number Tokens in a row.

8.1.5 Matching a Simple Text String

JAPE operates over annotations so it cannot match strings of text in the document directly. To match a string you need to match an annotation that covers that string, typically a “Token”. The GATE Tokeniser adds a “string” feature to all the Token annotations containing the string that the Token covers, so you can use this (or the @string meta property) to match text in your document.

{Token.string == "of"}

The following grammar shows a sequence of strings being matched.

Phase: UrlPre
Input:  Token SpaceToken
Options: control = appelt
Rule: Urlpre
( (({Token.string == "http"} |
  {Token.string == "ftp"})
 {Token.string == ":"}
 {Token.string == "/"}
         {Token.string == "/"}
        ) |
({Token.string == "www"}
         {Token.string == "."}
:urlpre.UrlPre = {rule = "UrlPre"}

Since we are matching annotations and not text, you must be careful that the strings you ask for are in fact single tokens. In the example above, {Token.string == "://"} would never match (assuming the default ANNIE Tokeniser) as the three characters are treated as separate tokens.

8.1.6 Using Templates [#]

In cases where a grammar contains many similar or identical strings or other literal values, JAPE supports the concept of templates. A template is a named value declared in the grammar file, similar to a variable in Java or other programming languages, which can be referenced anywhere where a normal string literal, boolean or numeric value could be used, on the left- or right-hand side of a rule. In the simplest case templates can be constants:

Template: source = "Interesting entity finder"
Template: threshold = 0.6

The templates can be used in rules by providing their names in square brackets:

Rule: InterestingLocation
  {Location.score >= [threshold]}
:loc.Entity = { type = Location, source = [source] }

The JAPE grammar parser substitutes the template values for their references when the grammar is parsed. Thus the example rule is equivalent to

Rule: InterestingLocation
  {Location.score >= 0.6}
:loc.Entity = { type = Location,
  source = "Interesting entity finder" }

The advantage of using templates is that if there are many rules in the grammar that all reference the threshold template then it is possible to change the threshold for all rules by simply changing the template definition.

The name “template” stems from the fact that templates whose value is a string can contain parameters, specified using ${name} notation:

Template: url = "http://gate.ac.uk/${path}"

When a template containing parameters is referenced, values for the parameters may be specified:

:anchor.Reference = {
  page = [url path = "userguide"] }

This is equivalent to page = "http://gate.ac.uk/userguide". Multiple parameter value assignments are separated by commas, for example:

Template: proton =
{Lookup.class == [proton mod="km", n="Mention"]}
// equivalent to
// {Lookup.class ==
//    "http://proton.semanticweb.org/2005/04/protonkm#Mention"}

The parser will report an error if a value is specified for a parameter that is not declared by the referenced template, for example [proton module="km"] would not be permitted in the above example.

Advanced template usage

If a template contains parameters for which values are not provided when the template is referenced, the parameter placeholders are passed through unchanged. Combined with the fact that the value for a template definition can itself be a reference to a previously-defined template, this allows for idioms like the following:

Template: proton =
Template: pkm = [proton mod="km"]
Template: ptop = [proton mod="t"]
({Lookup.class == [ptop n="Person"]}):look
:look.Mention = { class = [pkm n="Mention"], of = "Person"}

(This example is inspired by the ontology-aware JAPE matching mode described in section 14.8.)

In a multi-phase JAPE grammar, templates defined in earlier phases may be referenced in later phases. This makes it possible to declare constants (such as the PROTON URIs above) in one place and reference them throughout a complex grammar.

8.1.7 Multiple Pattern/Action Pairs

It is also possible to have more than one pattern and corresponding action, as shown in the rule below. On the LHS, each pattern is enclosed in a set of round brackets and has a unique label; on the RHS, each label is associated with an action. In this example, the Lookup annotation is labelled ‘jobtitle’ and is given the new annotation JobTitle; the TempPerson annotation is labelled ‘person’ and is given the new annotation ‘Person’.

Rule: PersonJobTitle
Priority: 20
 {Lookup.majorType == jobtitle}
    :jobtitle.JobTitle = {rule = "PersonJobTitle"},
    :person.Person = {kind = "personName", rule = "PersonJobTitle"}

Similarly, labelled patterns can be nested, as in the example below, where the whole pattern is annotated as Person, but within the pattern, the jobtitle is annotated as JobTitle.

Rule: PersonJobTitle2
Priority: 20
 {Lookup.majorType == jobtitle}
    :jobtitle.JobTitle = {rule = "PersonJobTitle"},
    :person.Person = {kind = "personName", rule = "PersonJobTitle"}

8.1.8 LHS Macros [#]

Macros allow you to create a definition that can then be used multiple times in your JAPE rules. In the following JAPE grammar, we have a cascade of macros used. The macro ‘AMOUNT_NUMBER’ makes use of the macros ‘MILLION_BILLION’ and ‘NUMBER_WORDS’, and the rule ‘MoneyCurrencyUnit’ then makes use of ‘AMOUNT_NUMBER’:

Phase: Number
Input: Token Lookup
Options: control = appelt
({Token.string == "m"}|
{Token.string == "million"}|
{Token.string == "b"}|
{Token.string == "billion"}|
{Token.string == "bn"}|
{Token.string == "k"}|
{Token.string == "K"}
 (({Lookup.majorType == number}
   ({Token.string == "-"})?
   {Lookup.majorType == number}
   {Token.string == "and"}
 ({Lookup.majorType == number}
  ({Token.string == "-"})?
   {Lookup.majorType == number}
(({Token.kind == number}
  (({Token.string == ","}|
    {Token.string == "."}
   {Token.kind == number}
Rule: MoneyCurrencyUnit
      ({Lookup.majorType == currency_unit})
:number -->
  :number.Money = {kind = "number", rule = "MoneyCurrencyUnit"}

8.1.9 Multi-Constraint Statements [#]

In the examples we have seen so far, most statements have contained only one constraint. For example, in this statement, the ‘category’ of ‘Token’ must equal ‘NNP’:

Rule: Unknown
Priority: 50
 {Token.category == NNP}
 :unknown.Unknown = {kind = "PN", rule = Unknown}

However, it is equally acceptable to have multiple constraints in a statement. In this example, the ‘majorType’ of ‘Lookup’ must be ‘name’ and the ‘minorType’ must be ‘surname’:

Rule: Surname
  {Lookup.majorType == "name",
   Lookup.minorType == "surname"}
 :surname.Surname = {}

Multiple constraints on the same annotation type must all be satisfied by the same annotation in order for the pattern to match.

The constraints may refer to different annotations, and for the pattern as a whole to match the constraints must be satisfied by annotations that start at the same location in the document. In this example, in addition to the constraints on the ‘majorType’ and ‘minorType’ of ‘Lookup’, we also have a constraint on the ‘string’ of ‘Token’:

Rule: SurnameStartingWithDe
  {Token.string == "de",
   Lookup.majorType == "name",
   Lookup.minorType == "surname"}
 :de.Surname = {prefix = "de"}

This rule would match anywhere where a Token with string ‘de’ and a Lookup with majorType ‘name’ and minorType ‘surname’ start at the same offset in the text. Both the Lookup and Token annotations would be included in the :de binding, so the Surname annotation generated would span the longer of the two. As before, constraints on the same annotation type must be satisfied by a single annotation, so in this example there must be a single Lookup matching both the major and minor types – the rule would not match if there were two different lookups at the same location, one of them satisfying each constraint.

8.1.10 Using Context [#]

Context can be dealt with in the grammar rules in the following way. The pattern to be annotated is always enclosed by a set of round brackets. If preceding context is to be included in the rule, this is placed before this set of brackets. This context is described in exactly the same way as the pattern to be matched. If context following the pattern needs to be included, it is placed after the label given to the annotation. Context is used where a pattern should only be recognised if it occurs in a certain situation, but the context itself does not form part of the pattern to be annotated.

For example, the following rule for Time (assuming an appropriate macro for ‘year’) would mean that a year would only be recognised if it occurs preceded by the words ‘in’ or ‘by’:

Rule: YearContext1
({Token.string == "in"}|
 {Token.string == "by"}
:date -->
 :date.Timex = {kind = "date", rule = "YearContext1"}

Similarly, the following rule (assuming an appropriate macro for ‘email’) would mean that an email address would only be recognised if it occurred inside angled brackets (which would not themselves form part of the entity):

Rule: Emailaddress1
({Token.string == ‘<’})
({Token.string == ‘>’})
 :email.Address= {kind = "email", rule = "Emailaddress1"}

It is important to remember that context is consumed by the rule, so it cannot be reused in another rule within the same phase. So, for example, right context for one rule cannot be used as left context for another rule.

8.1.11 Negation [#]

All the examples in the preceding sections involve constraints that require the presence of certain annotations to match. JAPE also supports ‘negative’ constraints which specify the absence of annotations. A negative constraint is signalled in the grammar by a ‘!’ character.

Negative constraints are used in combination with positive ones to constrain the locations at which the positive constraint can match. For example:

Rule: PossibleName
 {Token.orth == "upperInitial", !Lookup}
 :name.PossibleName = {}

This rule would match any uppercase-initial Token, but only where there is no Lookup annotation starting at the same location. The general rule is that a negative constraint matches at any location where the corresponding positive constraint would not match. Negative constraints do not contribute any annotations to the bindings - in the example above, the :name binding would contain only the Token annotation3.

Any constraint can be negated, for example:

Rule: SurnameNotStartingWithDe
 {Surname, !Token.string ==~ "[Dd]e"}
 :name.NotDe = {}

This would match any Surname annotation that does not start at the same place as a Token with the string ‘de’ or ‘De’. Note that this is subtly different from {Surname, Token.string !=~ "[Dd]e"}, as the second form requires a Token annotation to be present, whereas the first form (!Token...) will match if there is no Token annotation at all at this location.4

As with positive constraints, multiple negative constraints on the same annotation type must all match the same annotation in order for the overall pattern match to be blocked. For example:

{Name, !Lookup.majorType == "person", !Lookup.minorType == "female"}

would match a “Name” annotation, but only if it does not start at the same location as a Lookup with majorType “person” and minorType “female”. A Lookup with majorType “person” and minorType “male” would not block the pattern from matching. However negated constraints on different annotation types are independent:

{Person, !Organization, !Location}

would match a Person annotation, but only if there is no Organization annotation and no Location annotation starting at the same place.

Note Prior to GATE 7.0, negated constraints on the same annotation type were considered independent, i.e. in the Name example above any Lookup of majorType “person” would block the match, irrespective of its minorType. If you have existing grammars that depend on this behaviour you should add negationGrouping = false to the Options line at the top of the JAPE phase in question.

Although JAPE provides an operator to look for the absence of a single annotation type, there is no support for a general negative operator to prevent a rule from firing if a particular sequence of annotations is found. One solution to this is to create a ‘negative rule’ which has higher priority than the matching ‘positive rule’. The style of matching must be Appelt for this to work. To create a negative rule, simply state on the LHS of the rule the pattern that should NOT be matched, and on the RHS do nothing. In this way, the positive rule cannot be fired if the negative pattern matches, and vice versa, which has the same end result as using a negative operator. A useful variation for developers is to create a dummy annotation on the RHS of the negative rule, rather than to do nothing, and to give the dummy annotation a rule feature. In this way, it is obvious that the negative rule has fired. Alternatively, use Java code on the RHS to print a message when the rule fires. An example of a matching negative and positive rule follows. Here, we want a rule which matches a surname followed by a comma and a set of initials. But we want to specify that the initials shouldn’t have the POS category PRP (personal pronoun). So we specify a negative rule that will fire if the PRP category exists, thereby preventing the positive rule from firing.

Rule: NotPersonReverse
Priority: 20
// we don’t want to match ’Jones, I’
 {Token.category == NNP}
 {Token.string == ","}
 {Token.category == PRP}
Rule:   PersonReverse
Priority: 5
// we want to match ‘Jones, F.W.’
 {Token.category == NNP}
 {Token.string == ","}
:person -->

8.1.12 Escaping Special Characters

To specify a single or double quote as a string, precede it with a backslash, e.g.


will match a double quote. For other special characters, such as ‘$’, enclose it in double quotes, e.g.

{Token.category == "PRP$"}

8.2 LHS Operators in Detail [#]

This section gives more detail on the behaviour of the matching operators used on the left-hand side of JAPE rules.

Matching operators are used to specify how matching must take place between a JAPE pattern and an annotation in the document. Equality (‘==’ and ‘!=’) and comparison (‘<’, ‘<=’, ‘>=’ and ‘>’) operators can be used, as can regular expression matching and contextual operators (‘contains’ and ‘within’).

8.2.1 Equality Operators

The equality operators are ‘==’ and ‘!=’. The basic operator in JAPE is equality. {Lookup.majorType == "person"} matches a Lookup annotation whose majorType feature has the value ‘person’. Similarly {Lookup.majorType != "person"} would match any Lookup whose majorType feature does not have the value ‘person’. If a feature is missing it is treated as if it had an empty string as its value, so this would also match a Lookup annotation that did not have a majorType feature at all.

Certain type coercions are performed:
